Home >> Honda Truck >> 1997 >> CR-V L4-1972cc 2.0L DOHC MFI >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection

Charging System: Testing and Inspection

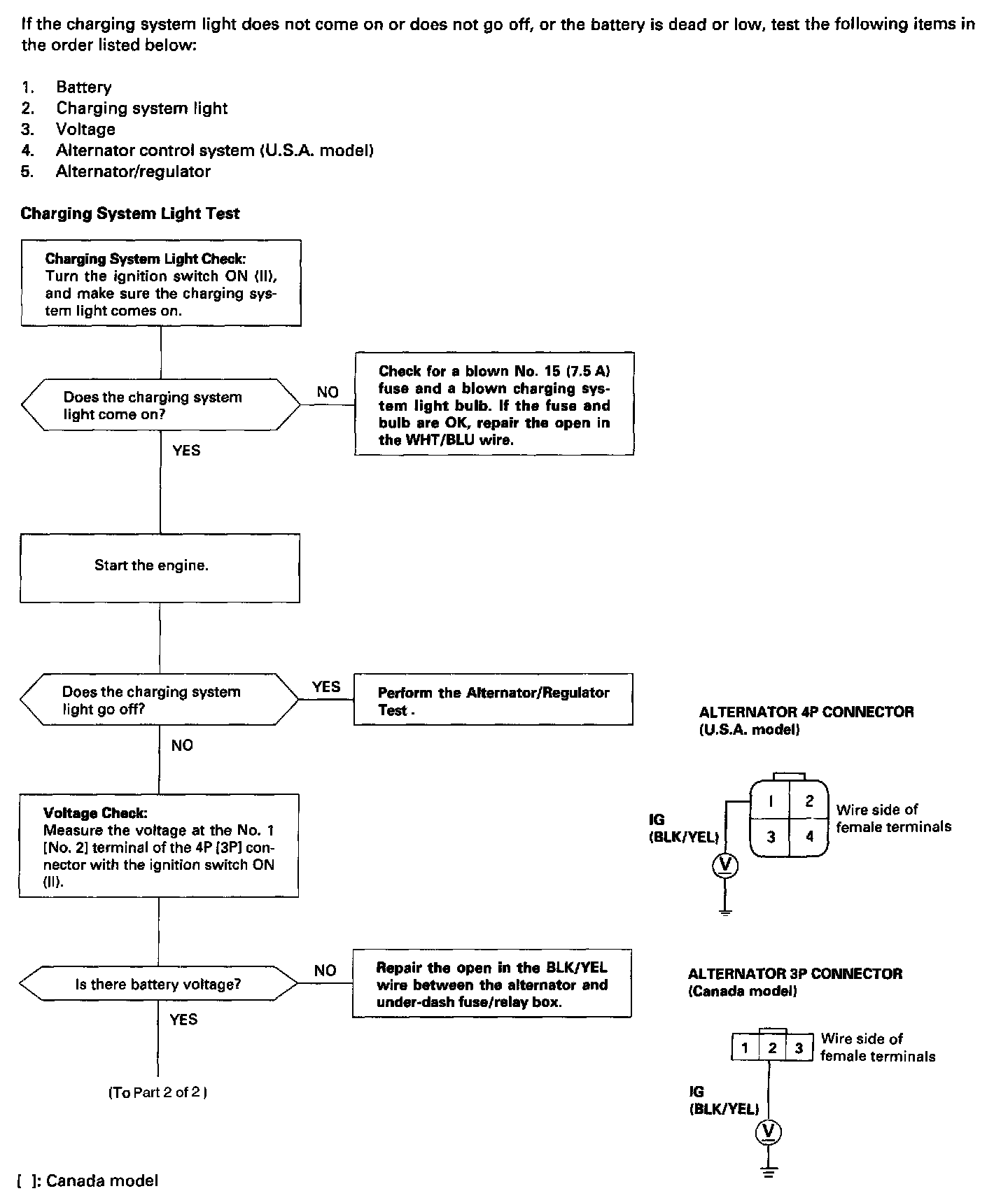

Charging System Light Test (Part 1 Of 2):

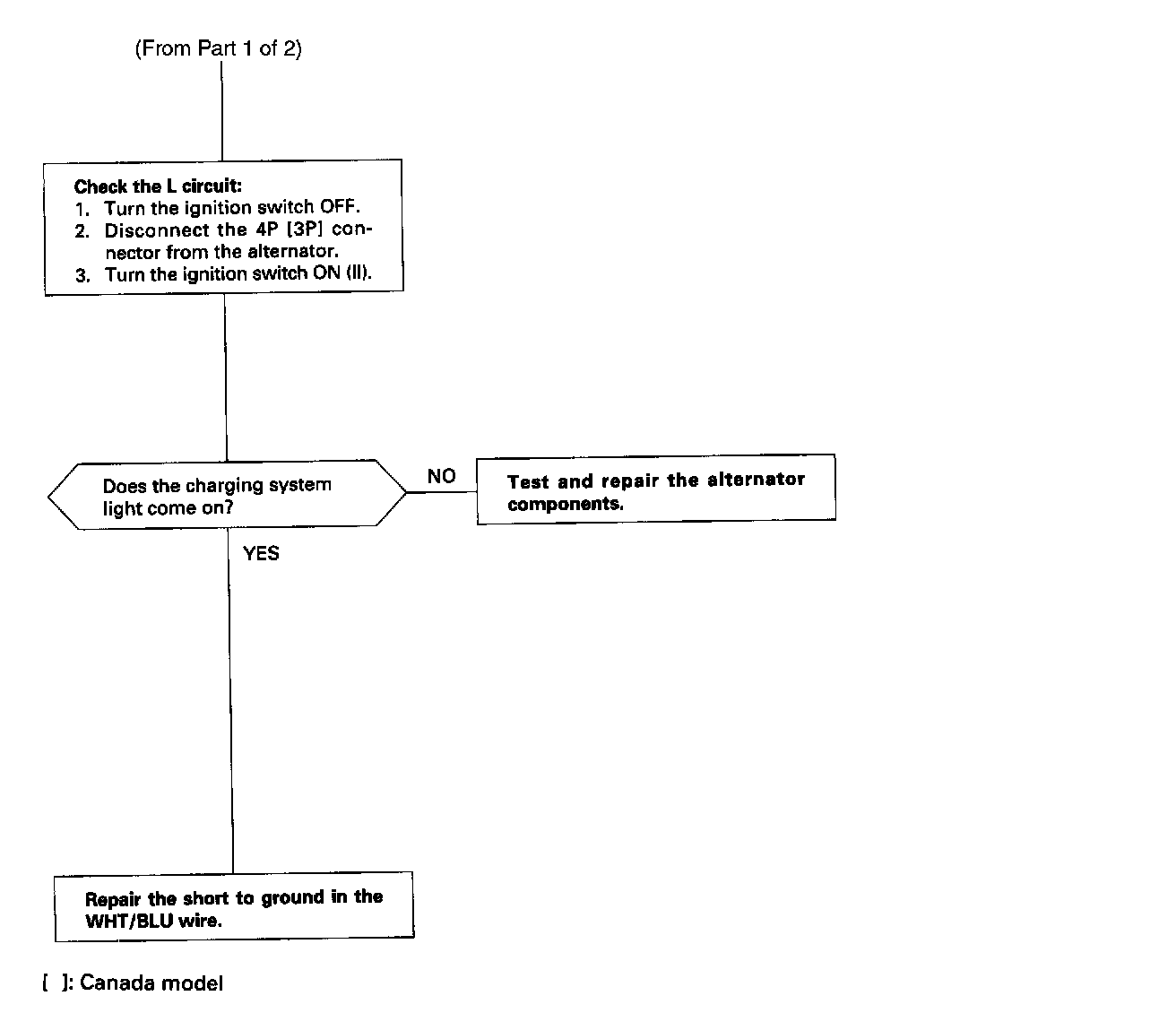

Charging System Light Test (Part 2 Of 2):

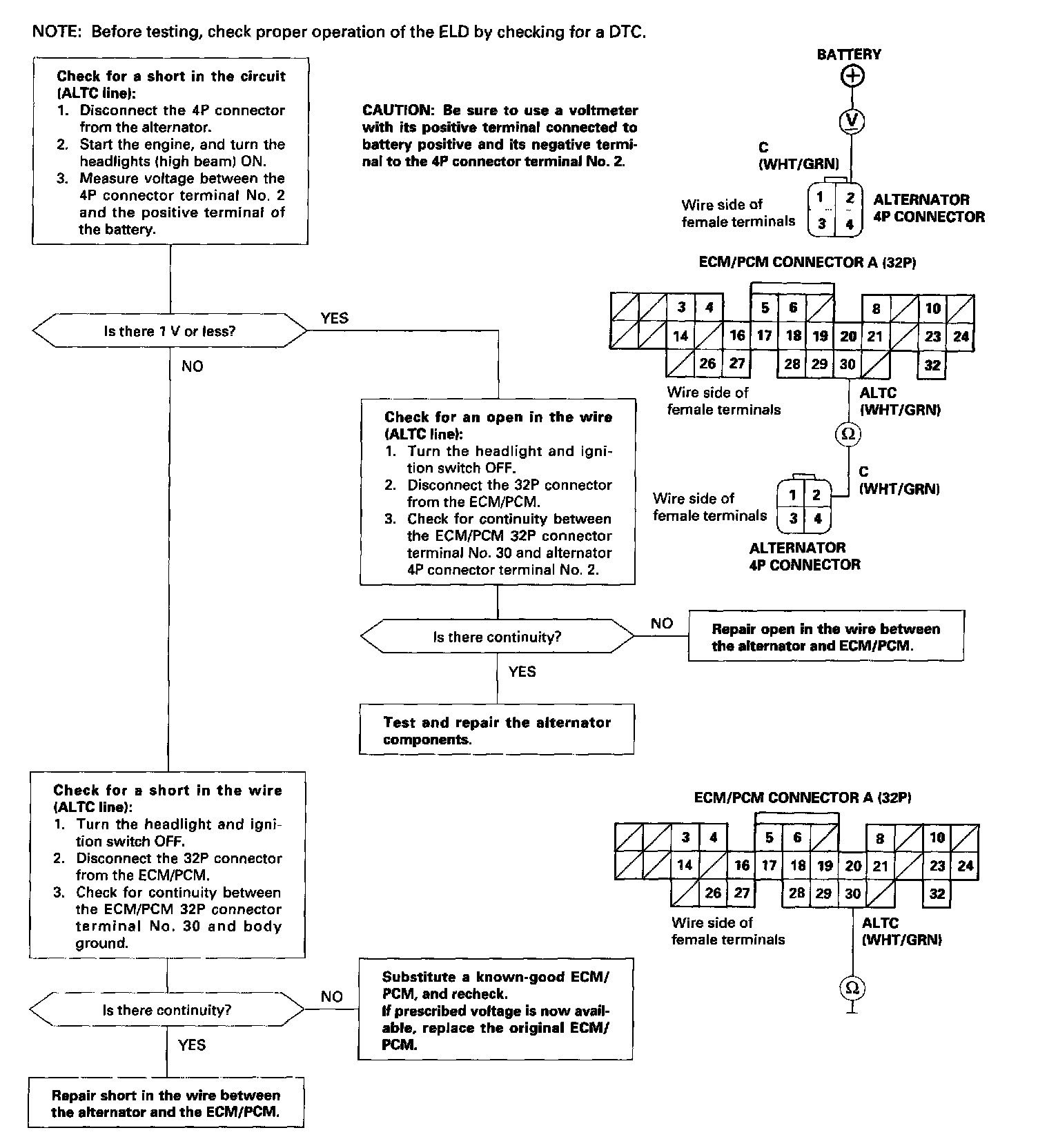

Alternator Control System Test - USA:

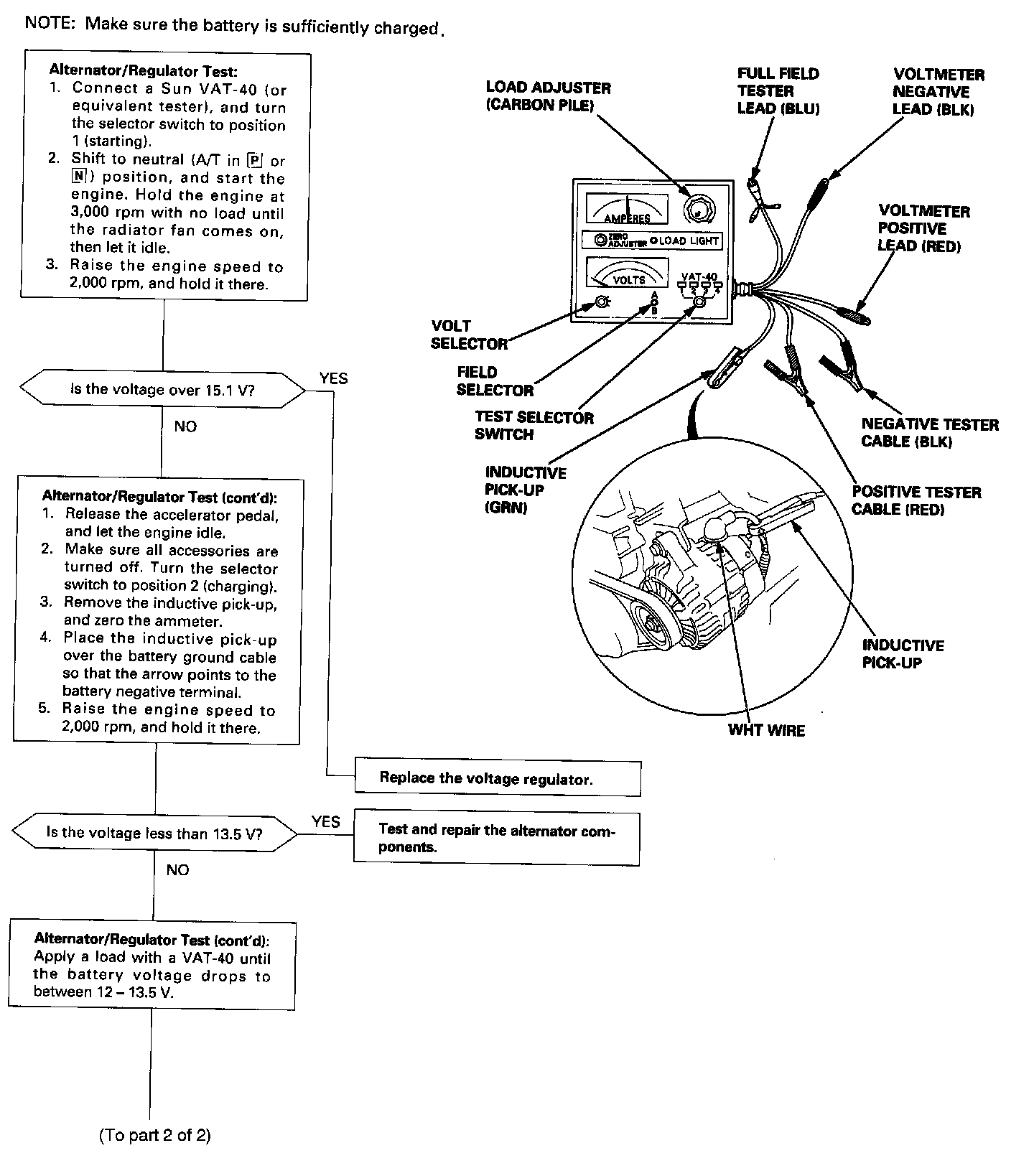

Alternator / Regulator Test (Part 1 Of 2):

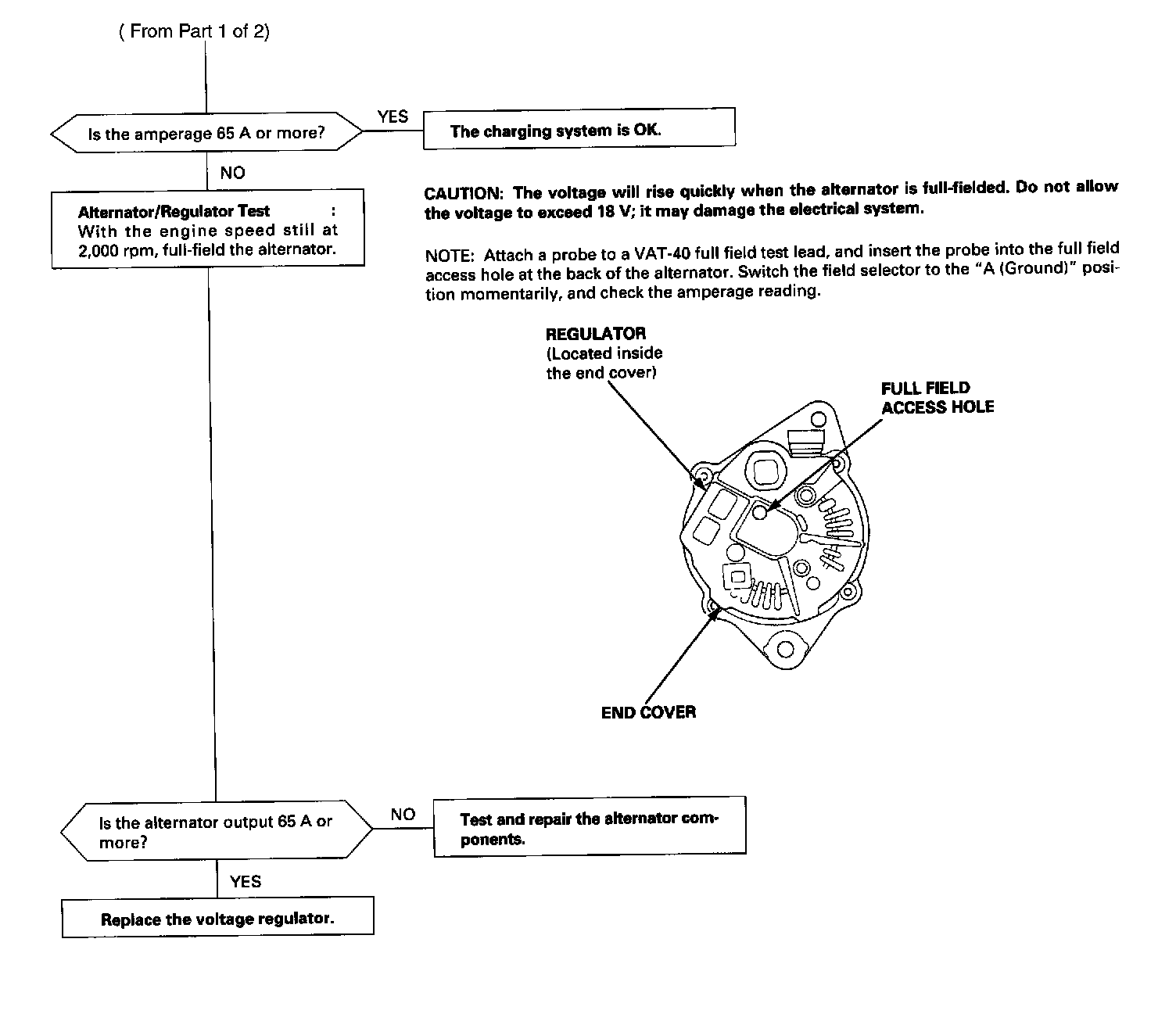

Alternator / Regulator Test (Part 2 Of 2):
