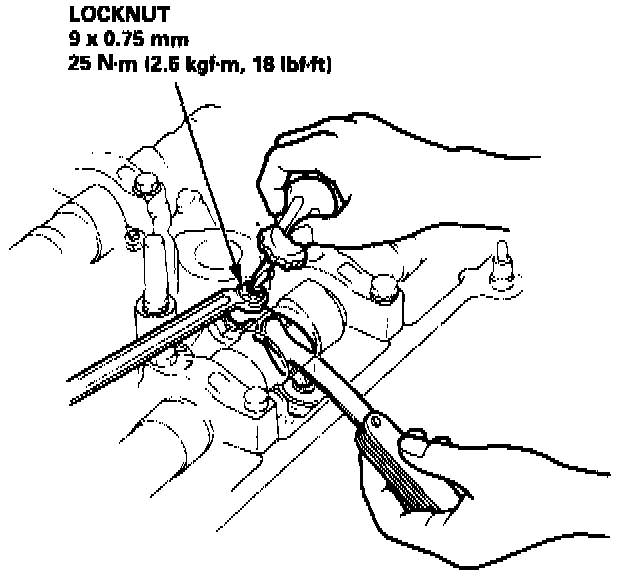

Valve Clearance
Clearance
Intake 0.08 - 0.12 mm (0.003 - 0.005 in)
Exhaust 0.16 - 0.20 mm (0.006 - 0.008 in)
Note: Adjust the valves only when the cylinder head temperature is less than 100°F (38°C).
Clearance
Intake 0.08 - 0.12 mm (0.003 - 0.005 in)
Exhaust 0.16 - 0.20 mm (0.006 - 0.008 in)
Note: Adjust the valves only when the cylinder head temperature is less than 100°F (38°C).
