Home >> Honda Truck >> 1997 >> CR-V L4-1972cc 2.0L DOHC MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Camshaft, Engine >> Lobe Height

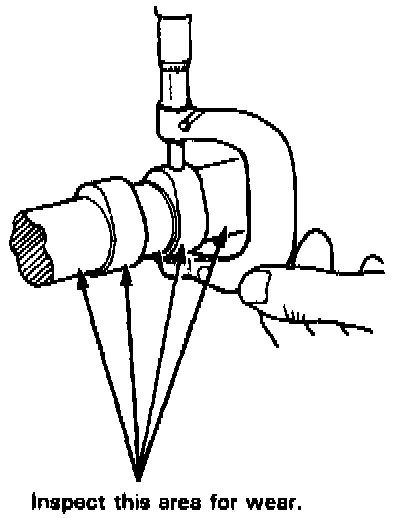

Lobe Height








Cam Lobe Height Standard (New)

'97 -'98 models:
INTAKE: 33.204 mm (1.3072 inch)
EXHAUST: 33.528 mm (1.3200 inch)

'99 model:
INTAKE: 33.716 mm (1.3274 inch)
EXHAUST: 33.528 mm (1.3200 inch)
