Honda Truck
>>
1997
>>
CR-V L4-1972cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

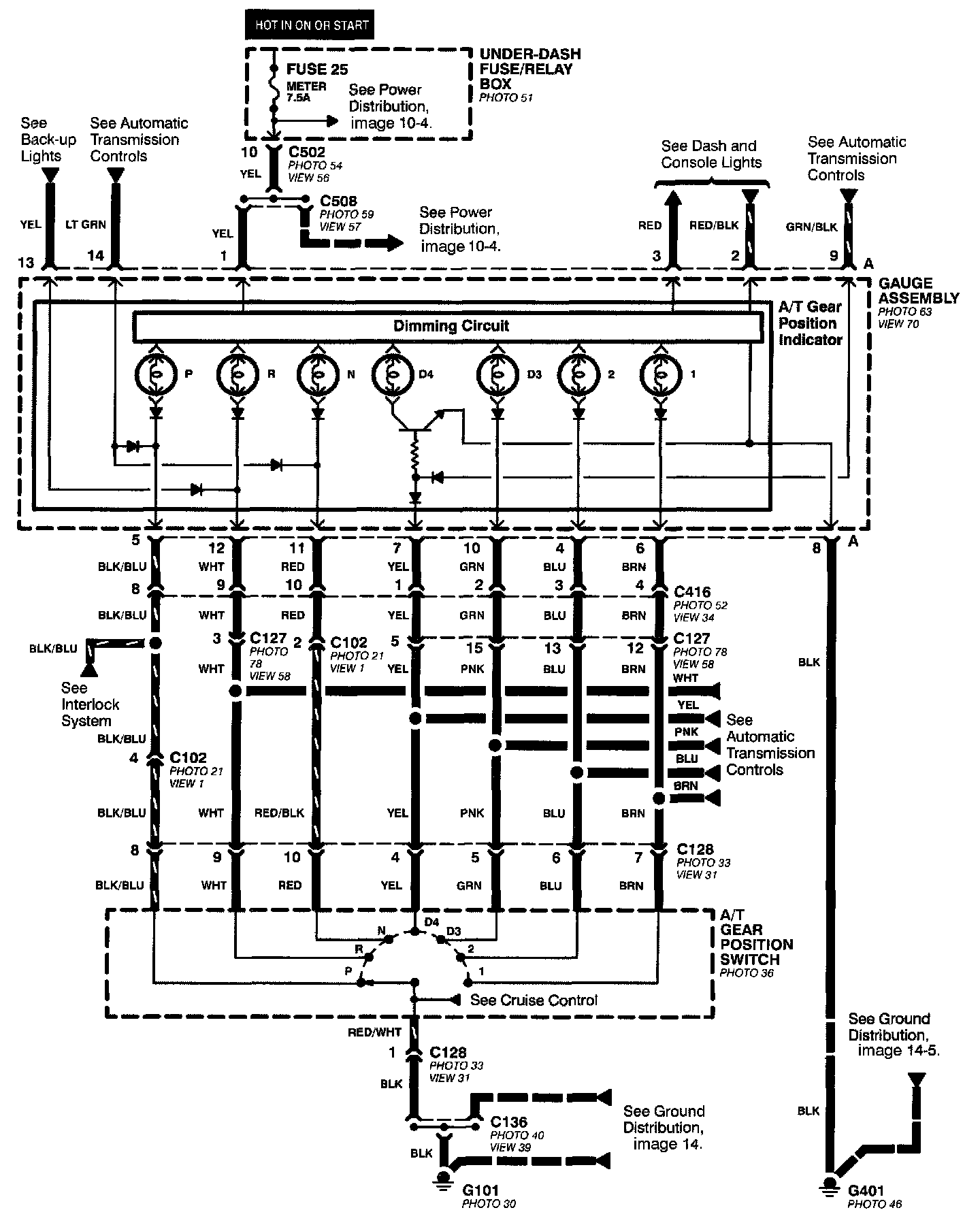

Image 89 (A/T Gear Position Indicator):
