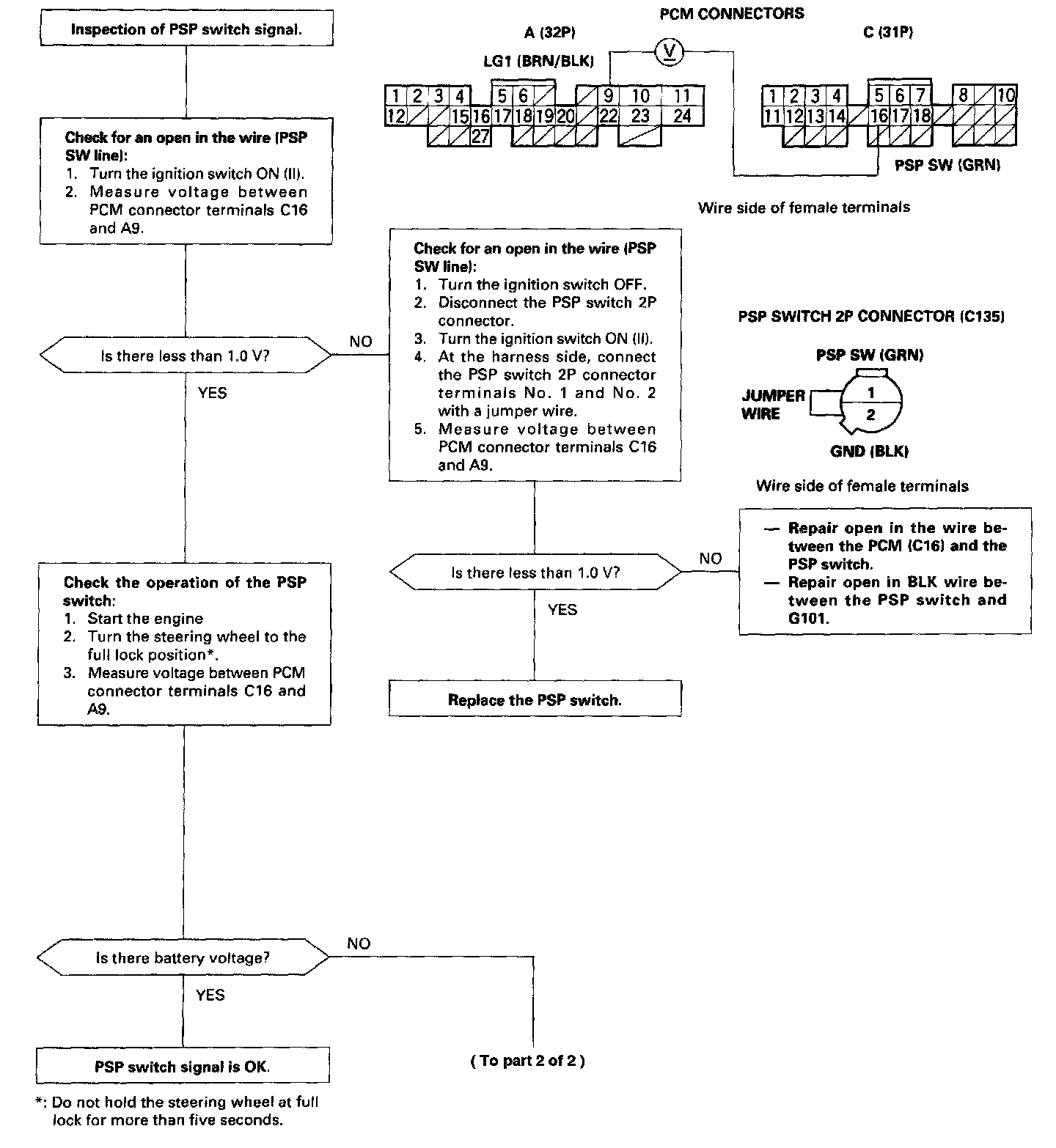

Power Steering Pressure (PSP) Switch Signal

Part 1 Of 2:




Part 2 Of 2:




This signals the ECM/PCM when the power steering load is high.
