Crankshaft Fluctuation Sensor: Service and Repair

REPLACEMENT
1. Remove the guard bar and splash shield.

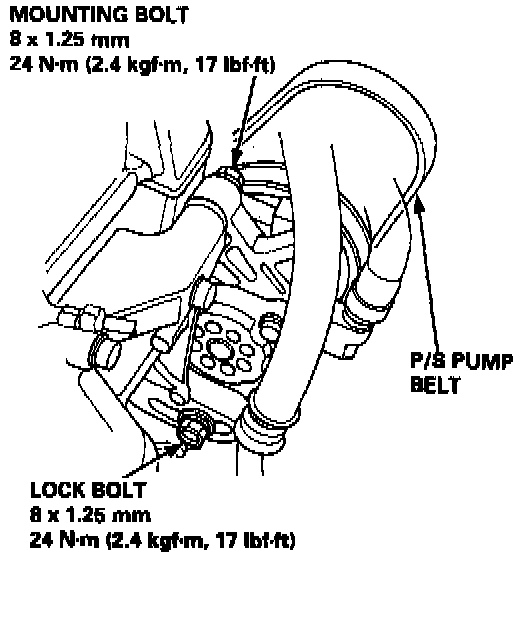

2. Loosen the lock bolt and mounting bolt, then remove the P/S pump belt.

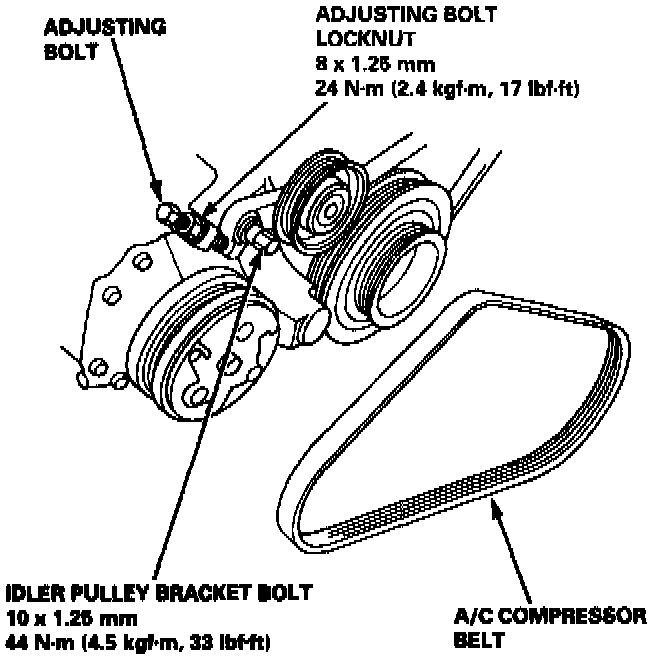

3. Loosen the adjusting bolt and idler pulley bracket bolt, then remove the A/C compressor belt.

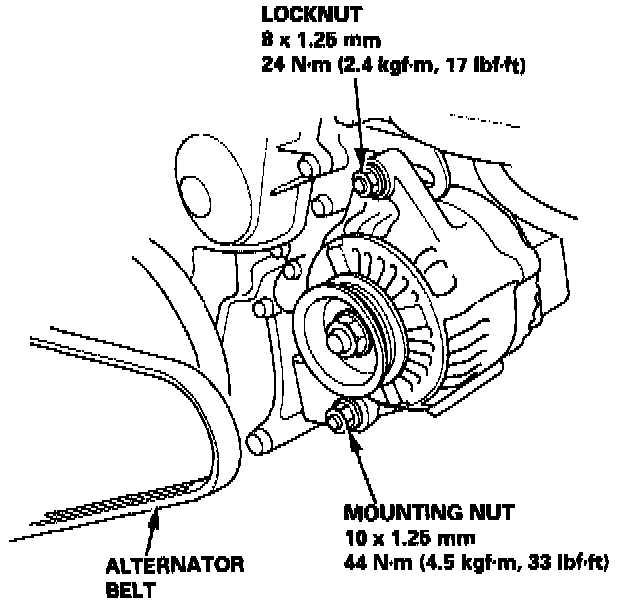

4. Loosen the locknut and mounting nut, then remove the alternator belt.
5. Remove the cylinder head cover.
6. Remove the crankshaft pulley.
7. Remove the middle cover and the lower cover.

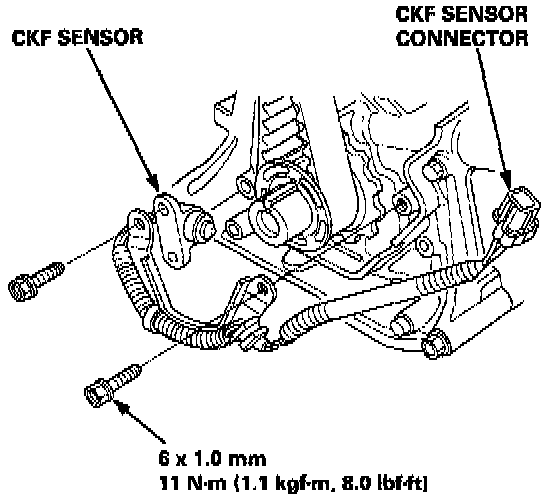

8. Disconnect the CKF sensor connector, then remove the CKF sensor.
9. Install the CKF sensor in reverse order of removal.
