Air Temperature Sensor ( Ambient / Intake ): Description and Operation

DESCRIPTION

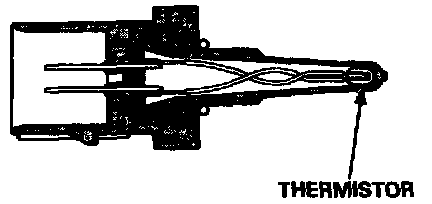

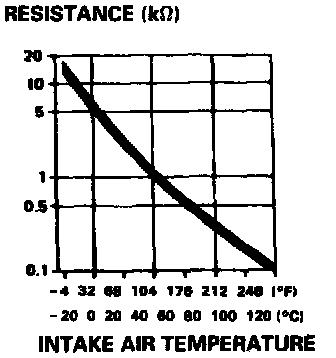

The IAT Sensor is a temperature dependant resistor (thermistor). The resistance of the thermistor decreases as the intake air temperature increases as shown above.
