Connector Locations

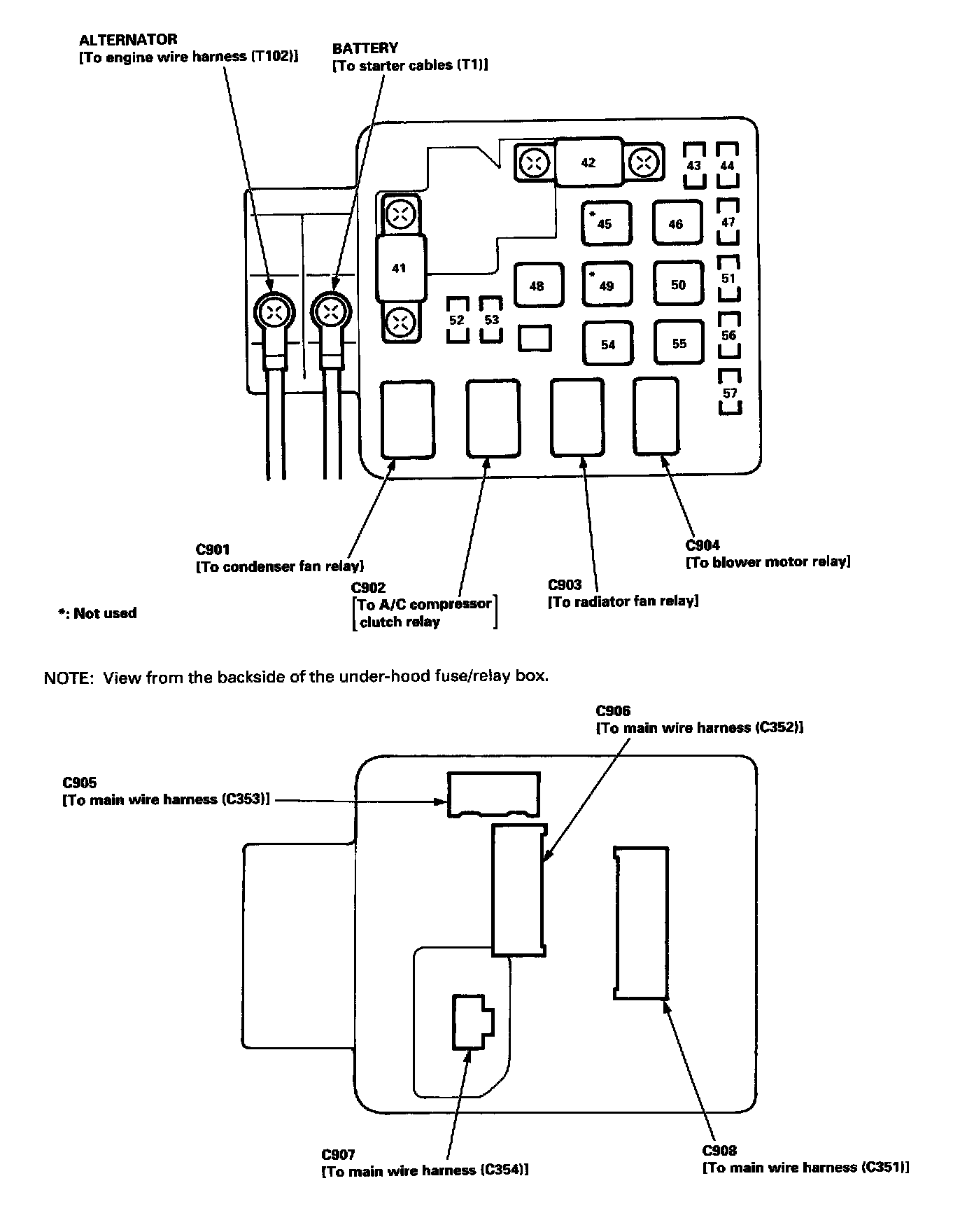

Under-Hood Fuse/Relay Box:

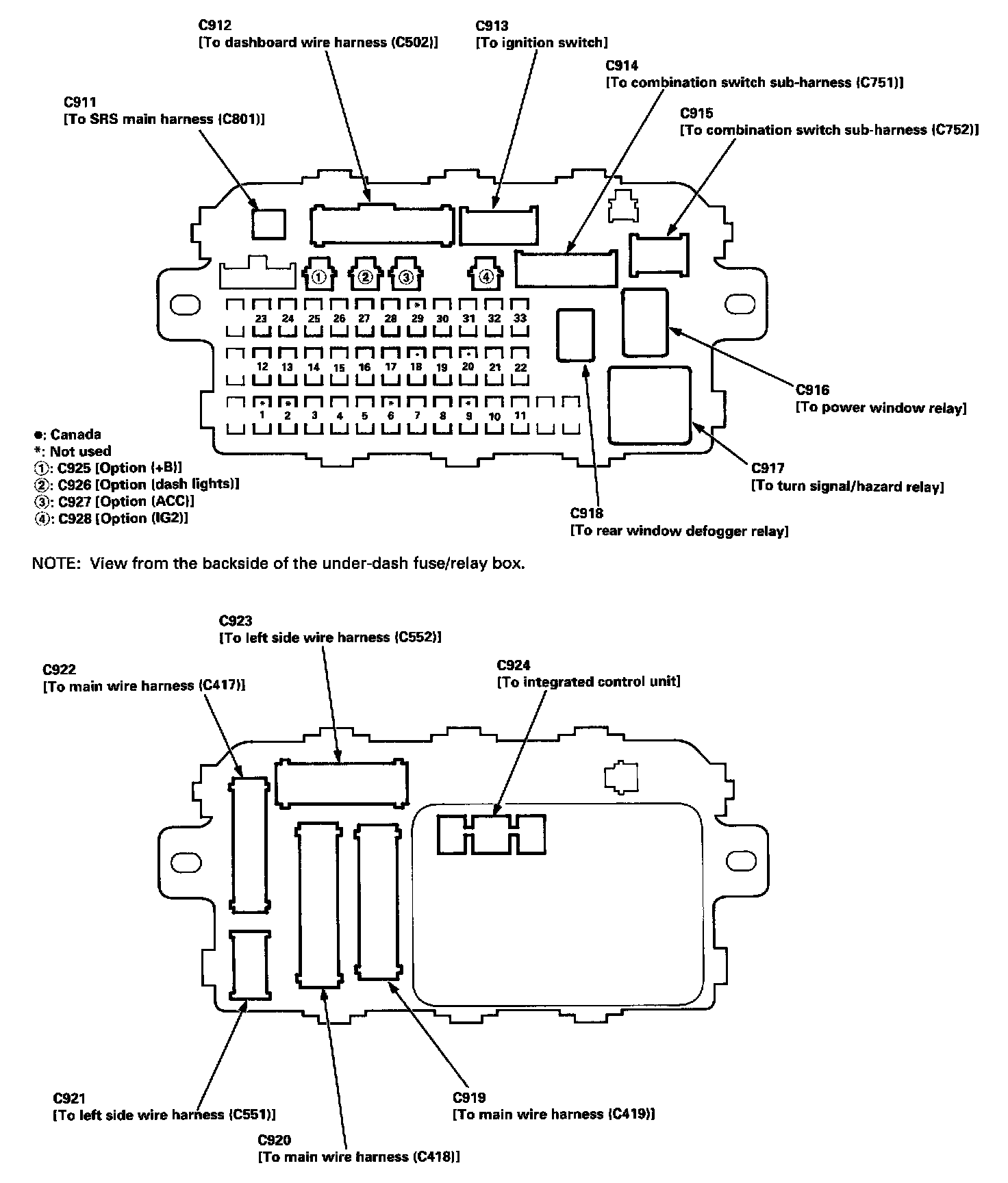

Under-Dash Fuse/Relay Box:

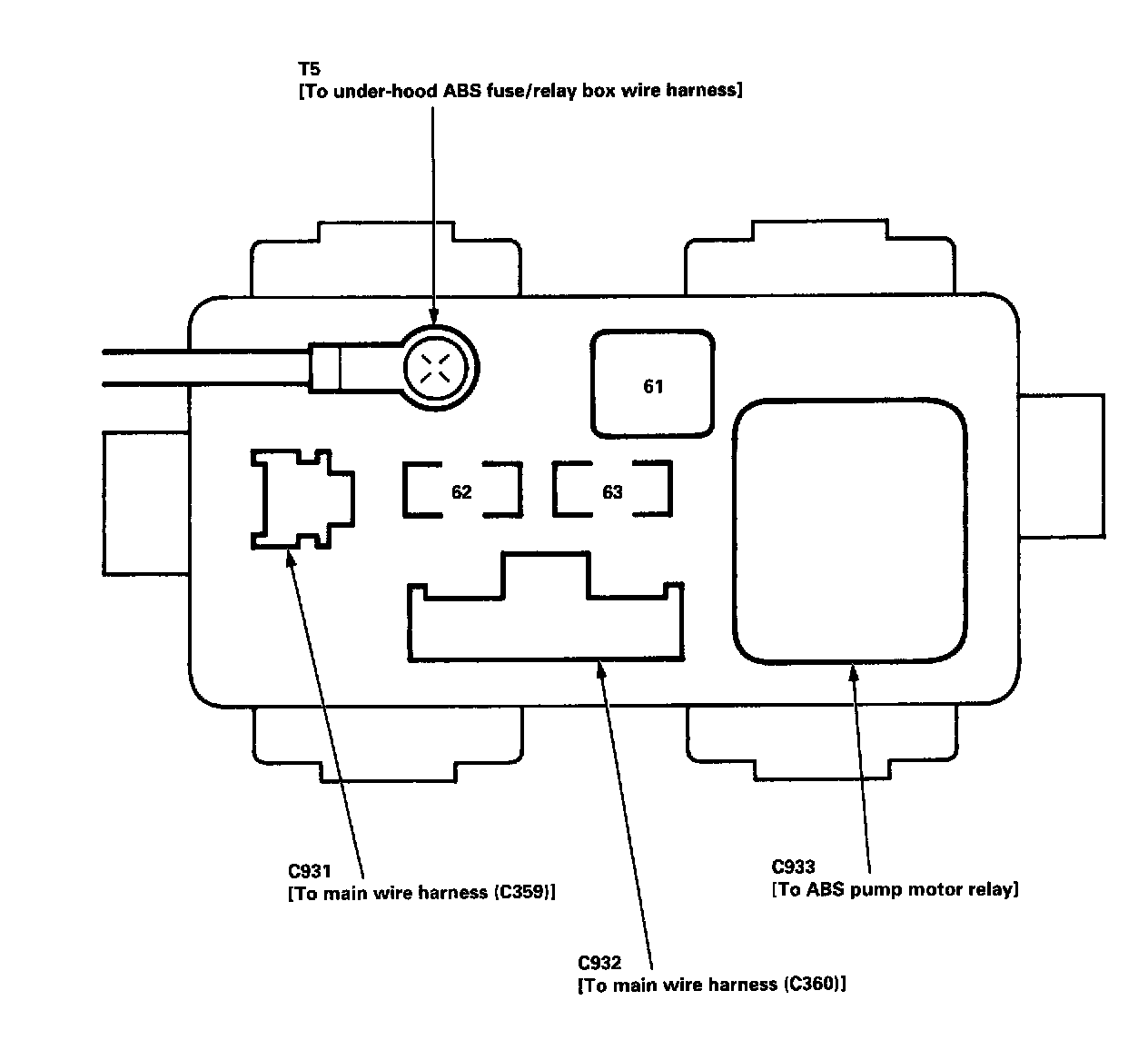

Under-Hood ABS Fuse/Relay Box:
