Honda Truck
>>
1997
>>
CR-V L4-1972cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

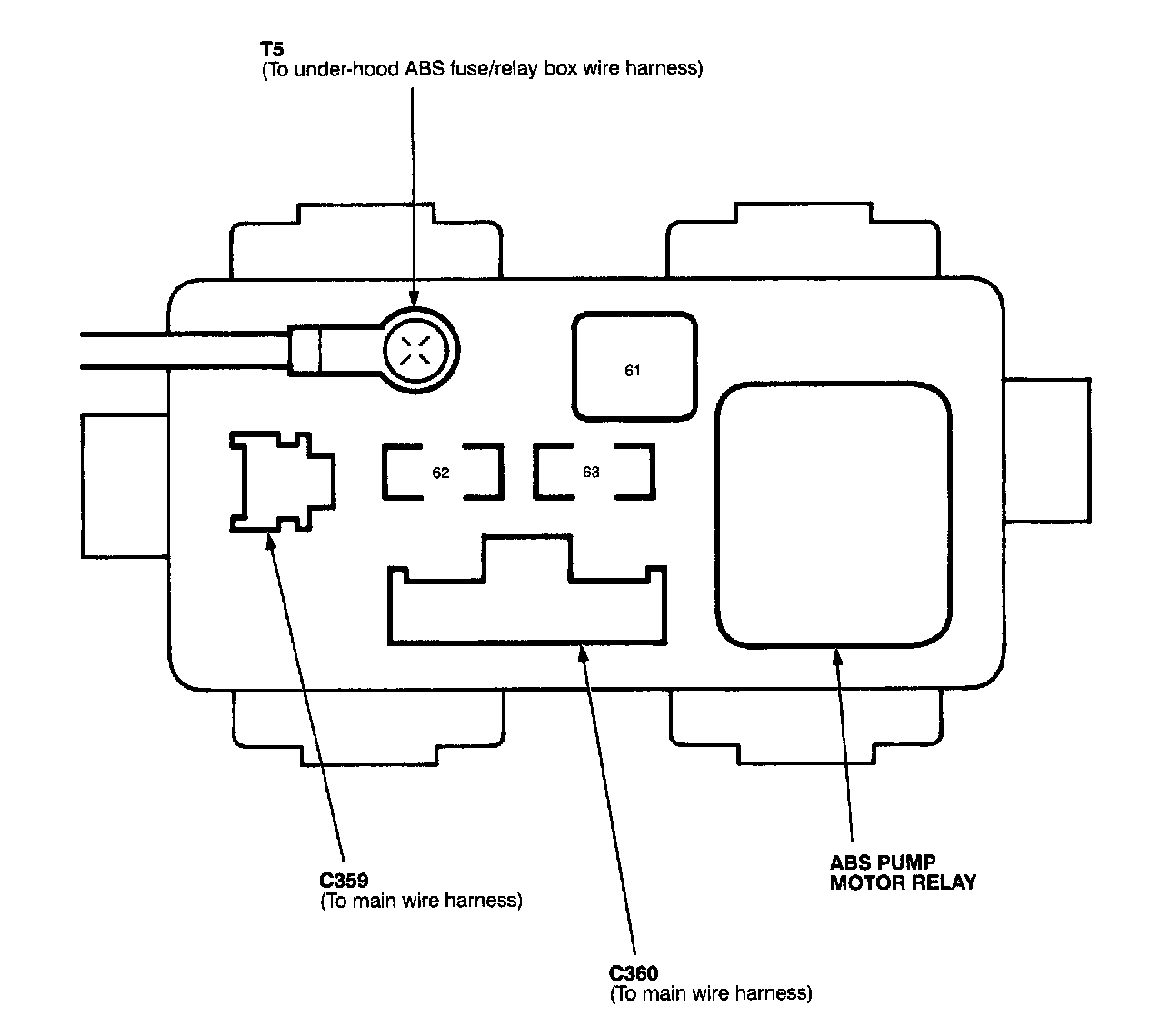

Under-Hood ABS Fuse/Relay Box
Under-Hood ABS Fuse/Relay Box
Connector-to-Fuse/Relay Box Index:

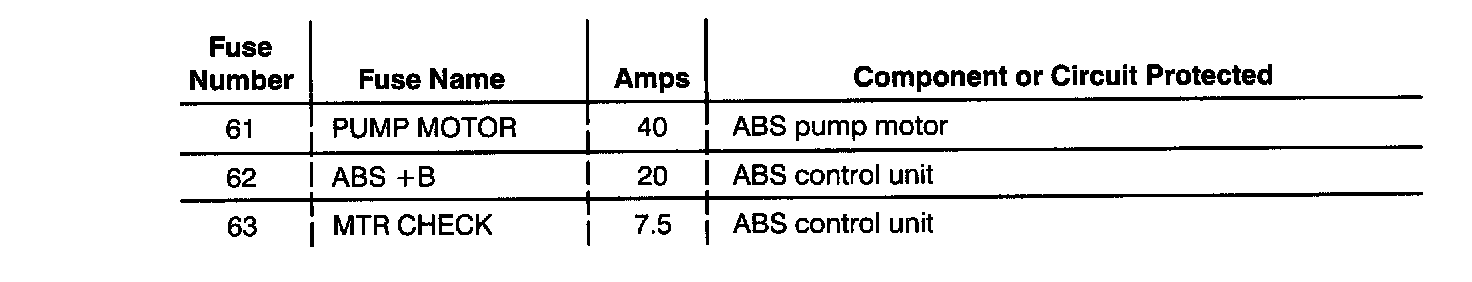

Fuse 61 - 63:
