Charging the Refrigerant System

Use only service equipment that is U.L.- listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioner system.

CAUTION: Exposure to air conditioner refrigerant and lubricant vapor or mist can irritate eyes, nose and throat. Avoid breathing the air conditioner refrigerant and lubricant vapor or mist.

If accidental system discharge occurs, ventilate work area before resuming service. Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

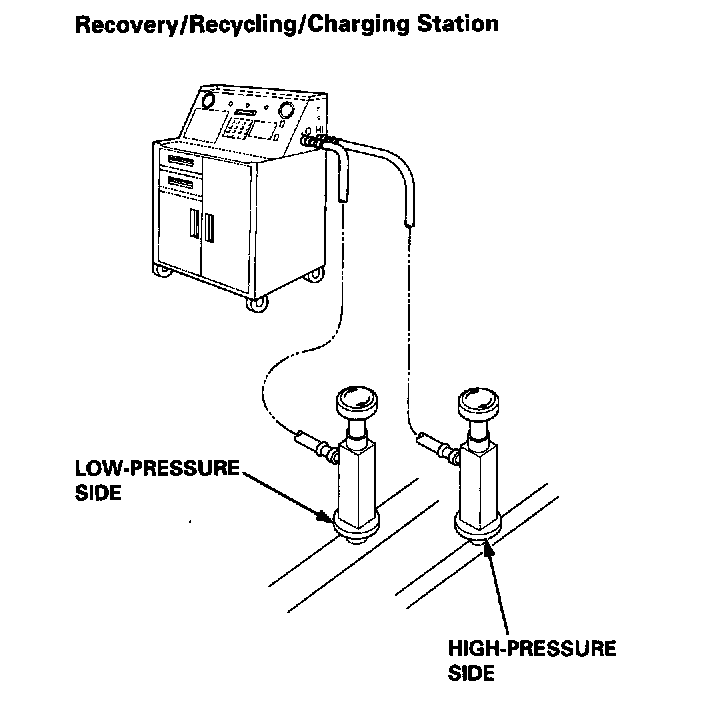

Connect a R-134a refrigerant recovery/recycling/charging station to the vehicle, as shown, following the equipment manufacturer's instructions.

Add the same amount of new refrigerant oil to system that was removed during recovery. Use only SP-10 refrigerant oil.

Charge the system with Required amount of R-134a refrigerant. Do not overcharge the system; the compressor will be damaged.

Select the appropriate unit of measure for your charging station.

Refrigerant capacity: 700 to 750 g
0.70 to 0.75 kg
1.5 to 1.6 lbs.
24.7 to 26.5 oz.
