Honda Truck
>>
1997
>>
CR-V L4-1972cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
A/C Compressor Controls
A/C Compressor Controls

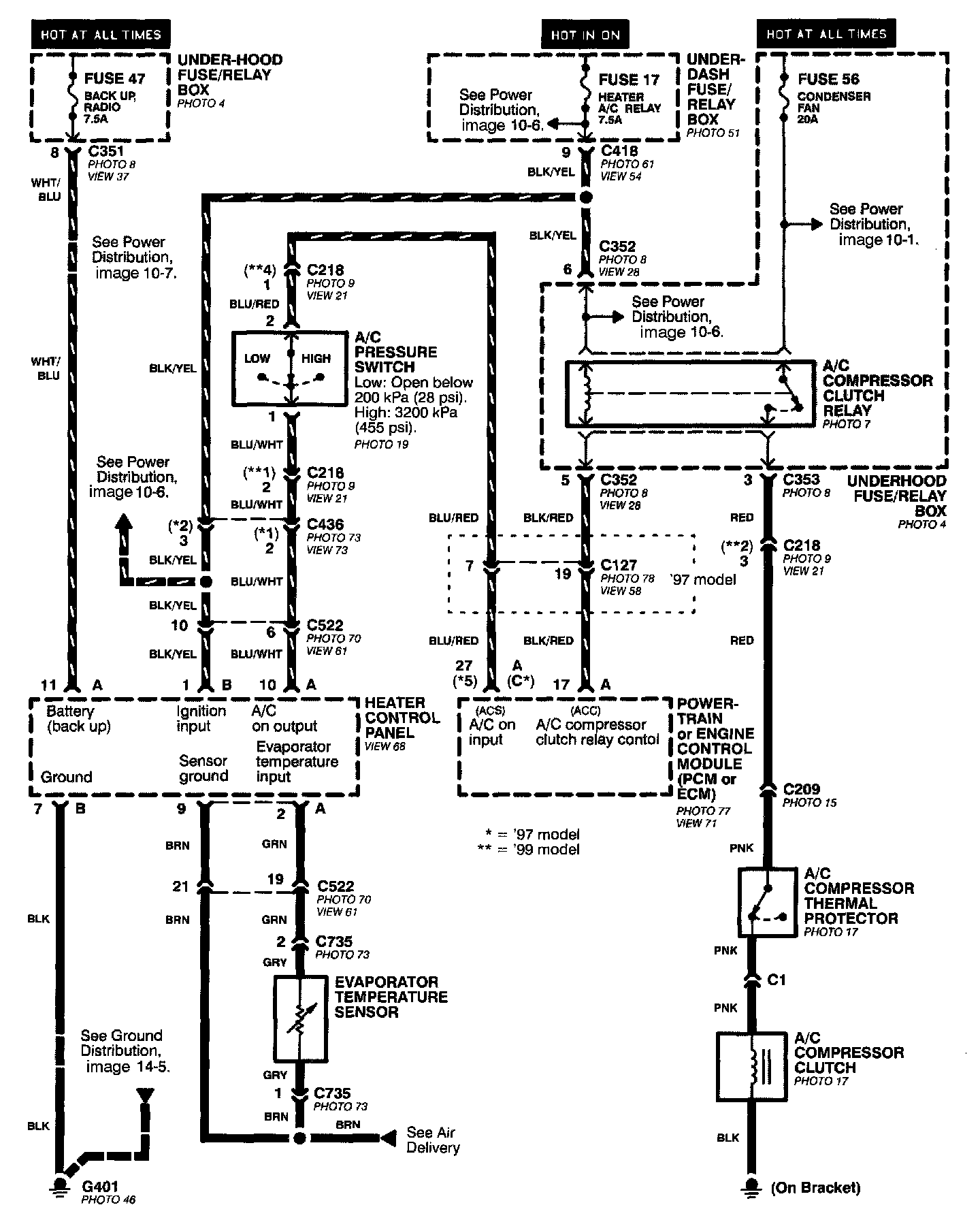

Image 62 (A/C Compressor Controls):
