Home >> Honda Truck >> 1997 >> CR-V L4-1972cc 2.0L DOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> By View Number >> 21-30 >> View 27

View 27

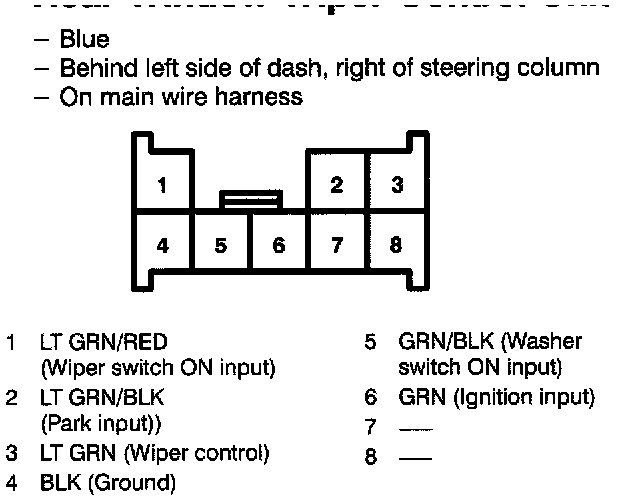

Rear Window Wiper Control Unit:
