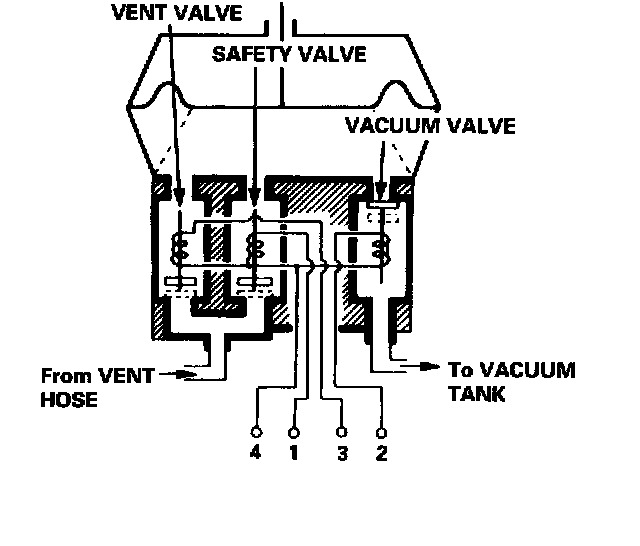

Actuator Solenoid Test

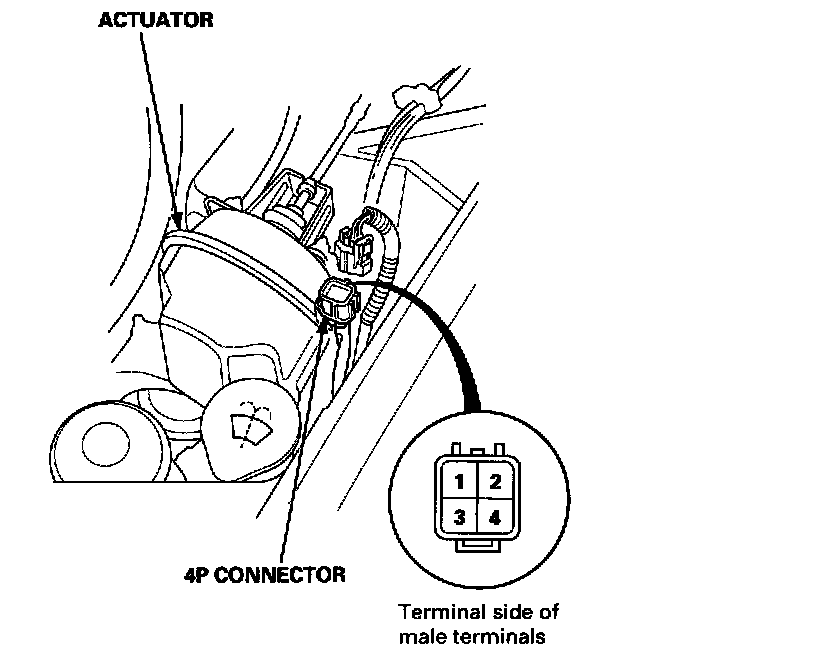

1. Disconnect the 4P connector from the actuator.

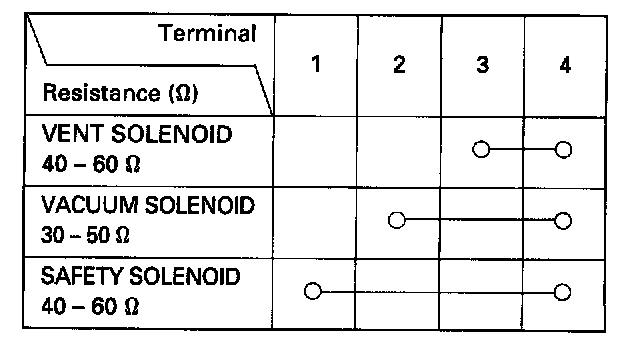

2. Check for resistance between the terminals according to the table.

NOTE: Resistance will vary slightly with temperature; specified resistance is at 68°F (20°C).
