Rear

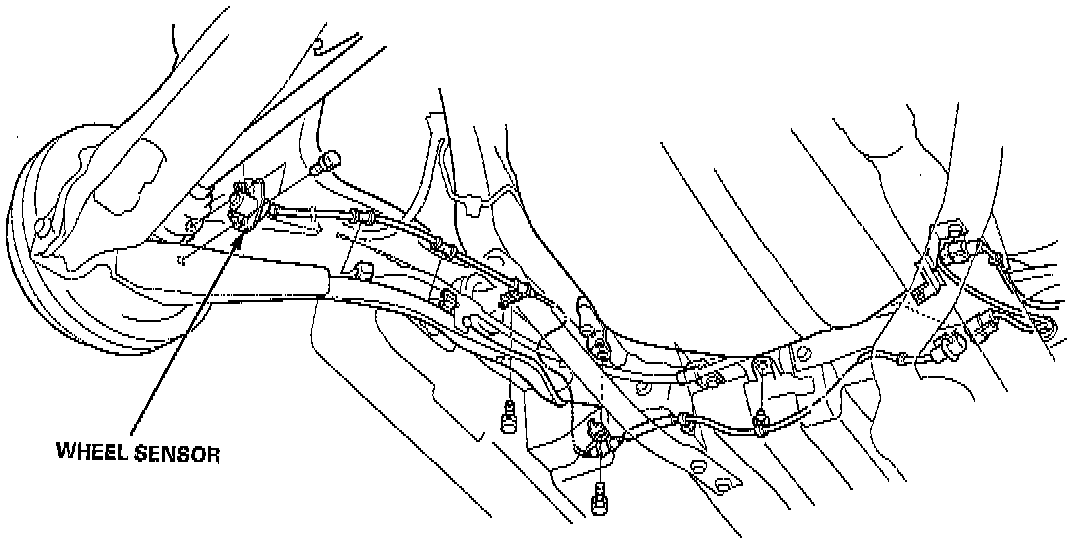

Removing Rear Wheel Sensor:

NOTE:
- Be careful when installing the sensors to avoid twisting the wires.
- After sensor replacement, confirm proper operation.

REPLACEMENT
- Remove the hub bearing unit.
- Remove the four backing plate bolts
- Pull the backing plate away from the trailing arm, then remove the wheel sensor. It is not necessary to disconnect the brake line.

Specs:
Sensor Lock Bolts 9.8 Nm (7 lb.ft.)
