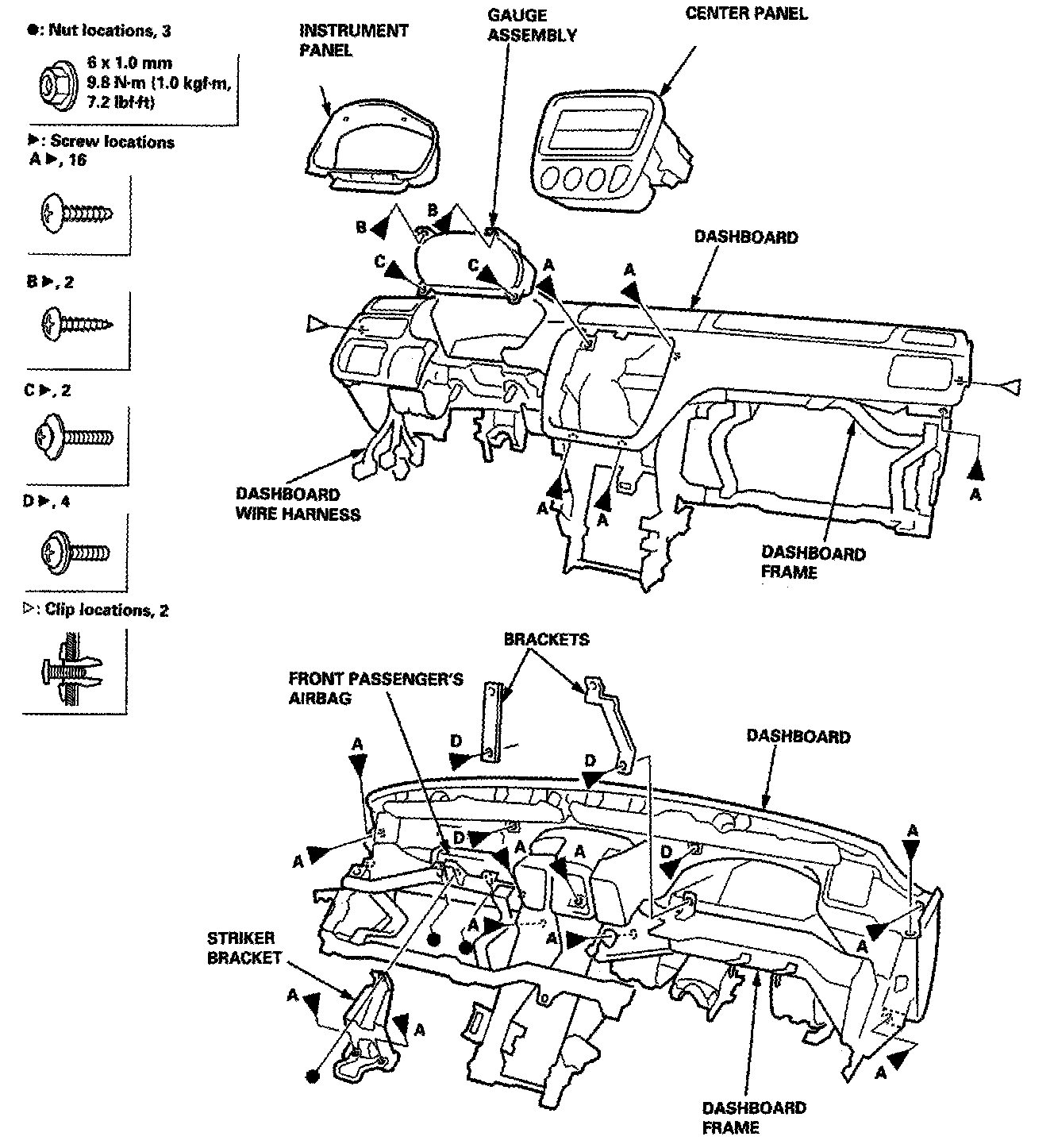

Dashboard Frame Replacement

Dashboard Frame Replacement

CAUTION: Put 0n gloves to protect hands






NOTE: Take care not to scratch the dashboard and related parts.

Installation is the reverse of the removal procedure.

Note:
- Make sure the dashboard wire harnesses are not pinched.
- Make sure the connectors and antenna are connected properly.
