Prizm L4-1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

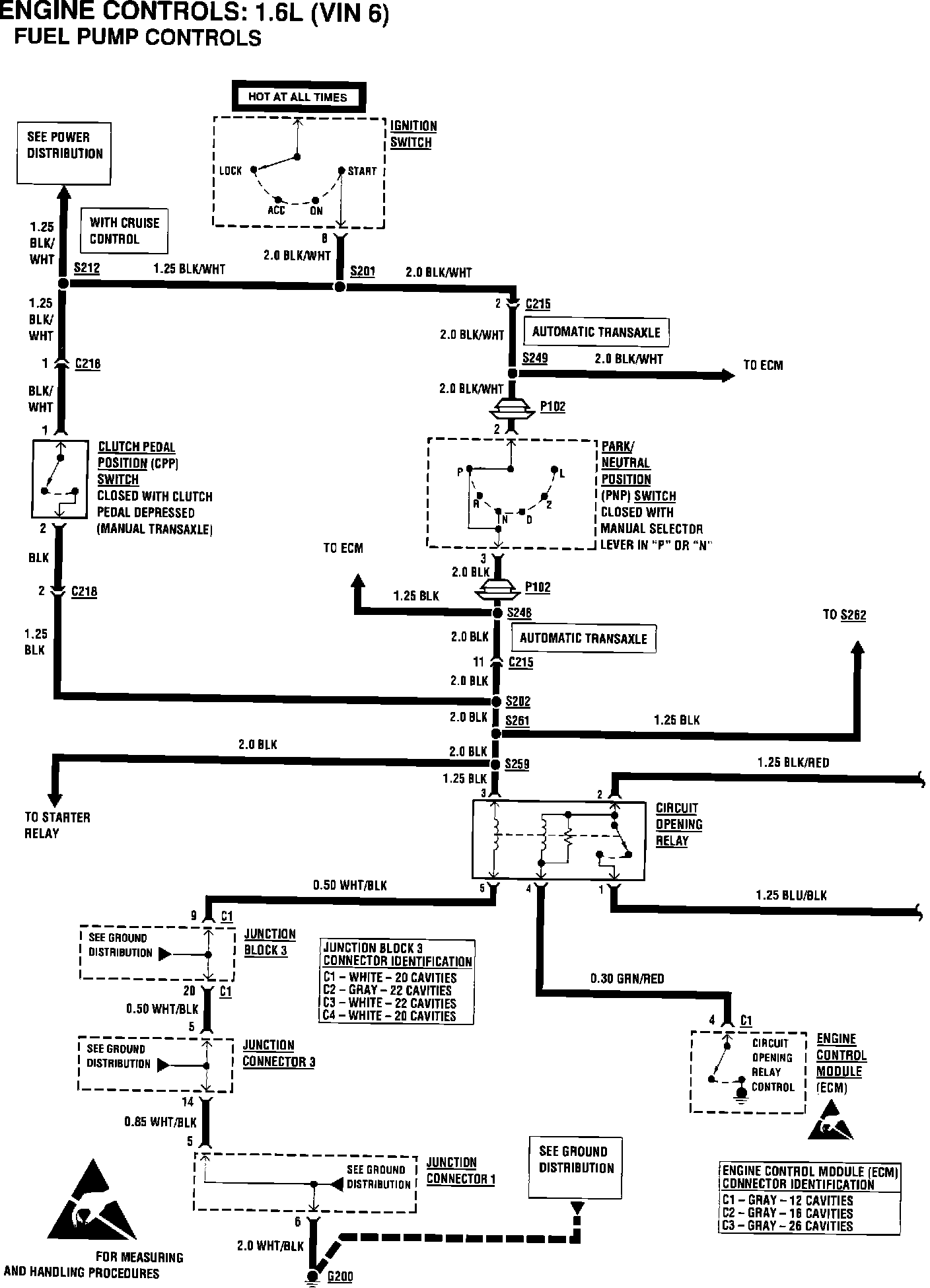

Fuel Pump Control
Fuel Pump Control

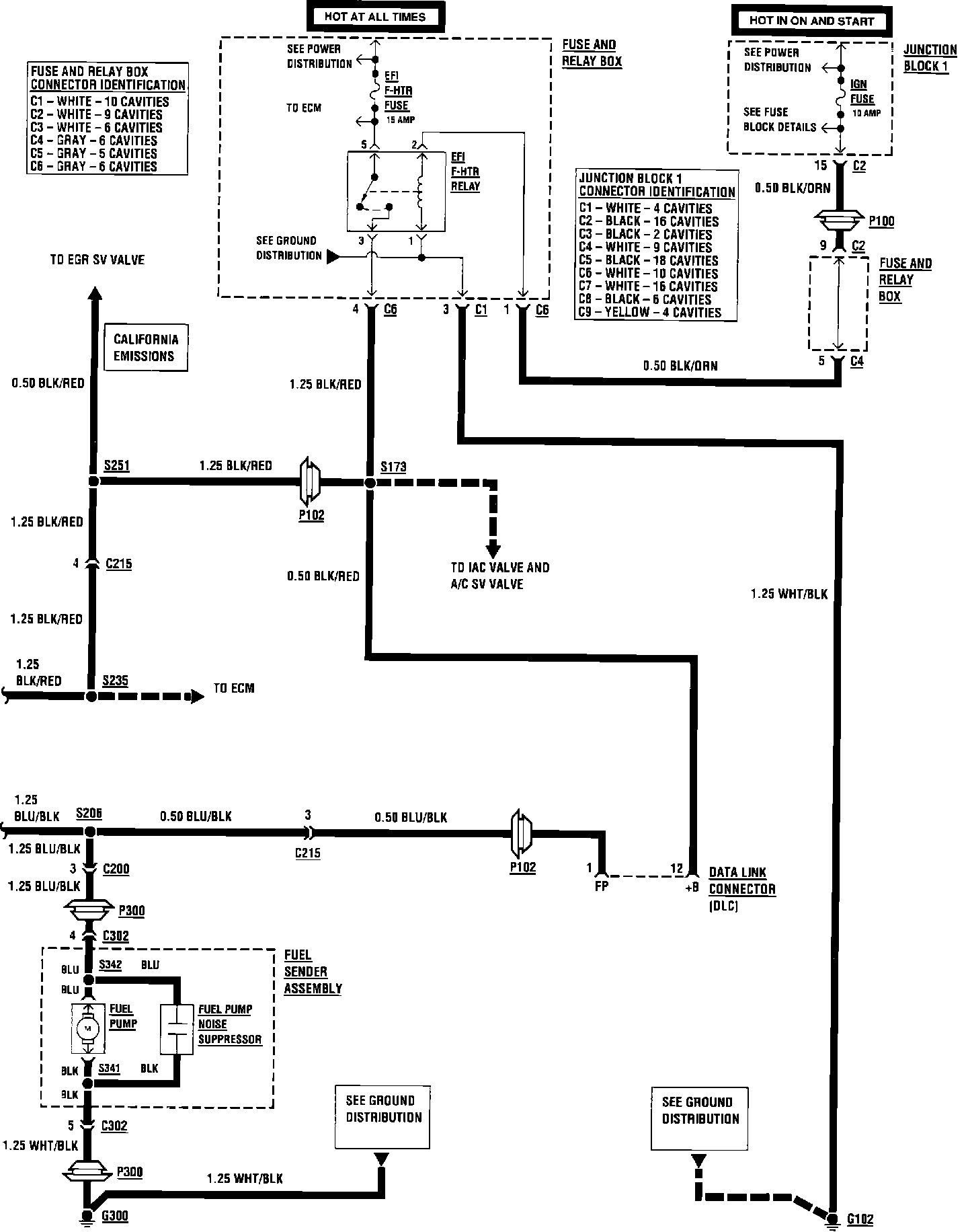

ECM Wiring Diagram 1.6L Prizm:
ECM Wiring Diagram 1.6L Prizm:
