Electronic/Powertrain Control Module (ECM/PCM)

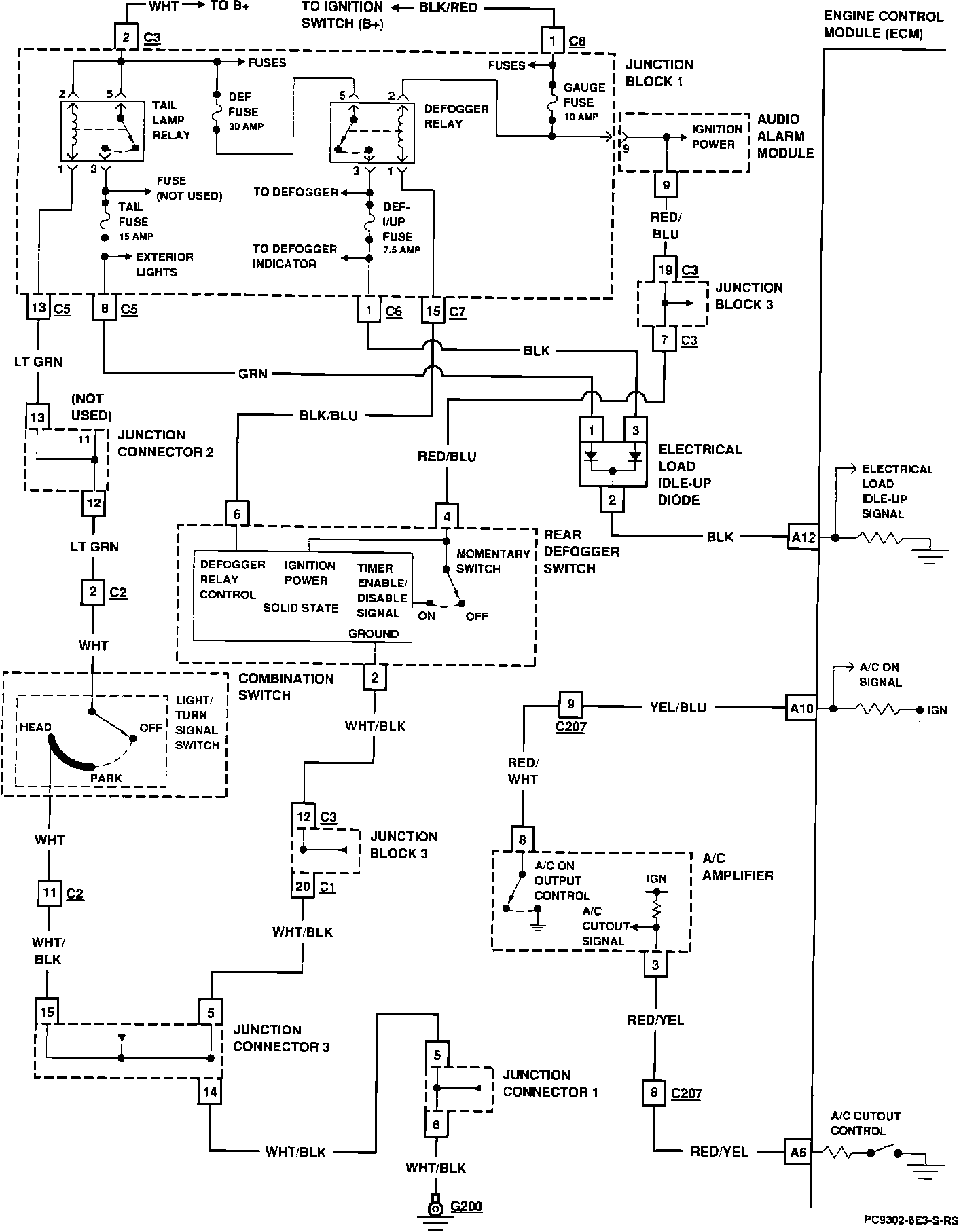

ECM System Schematic:

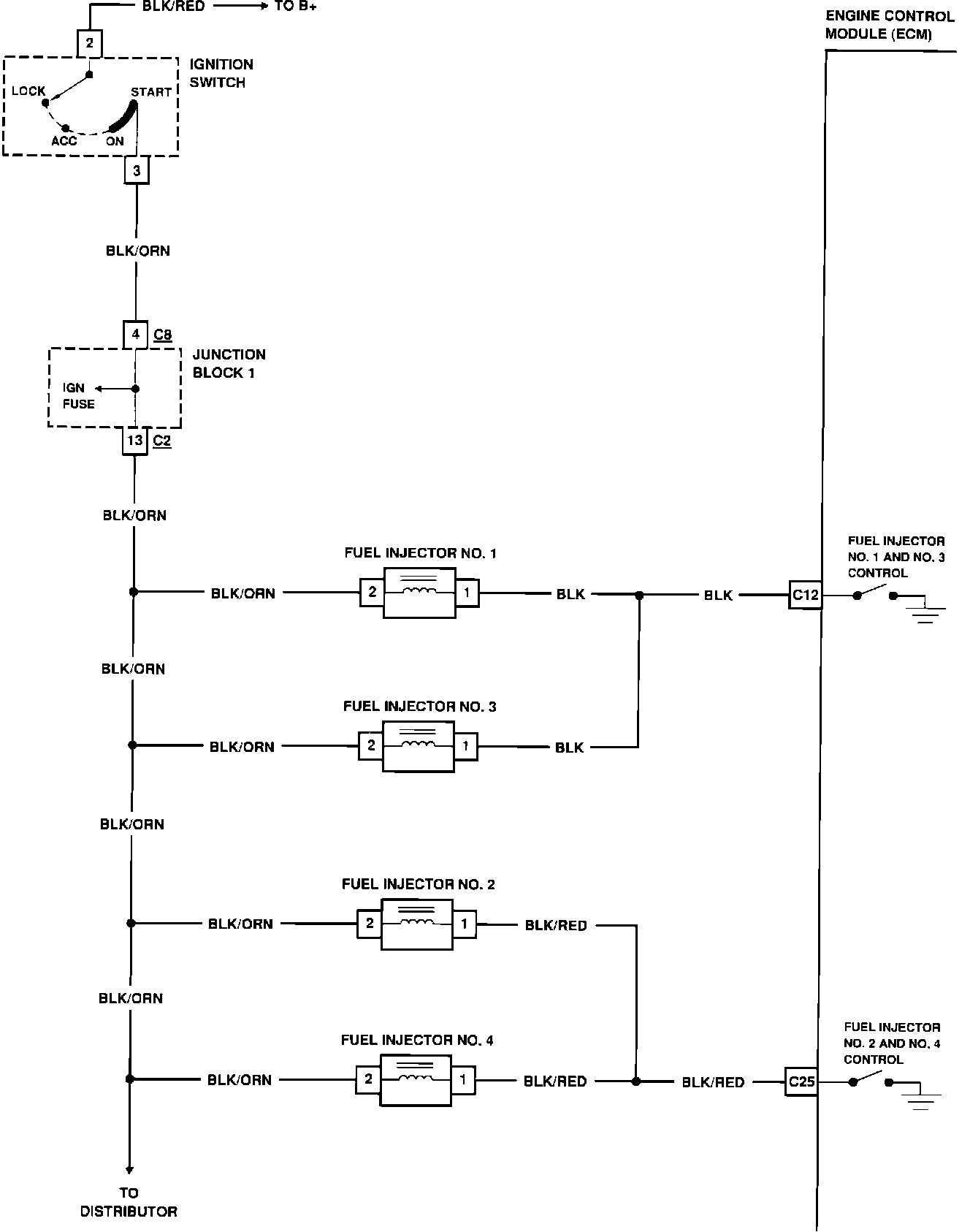

ECM System Schematic:

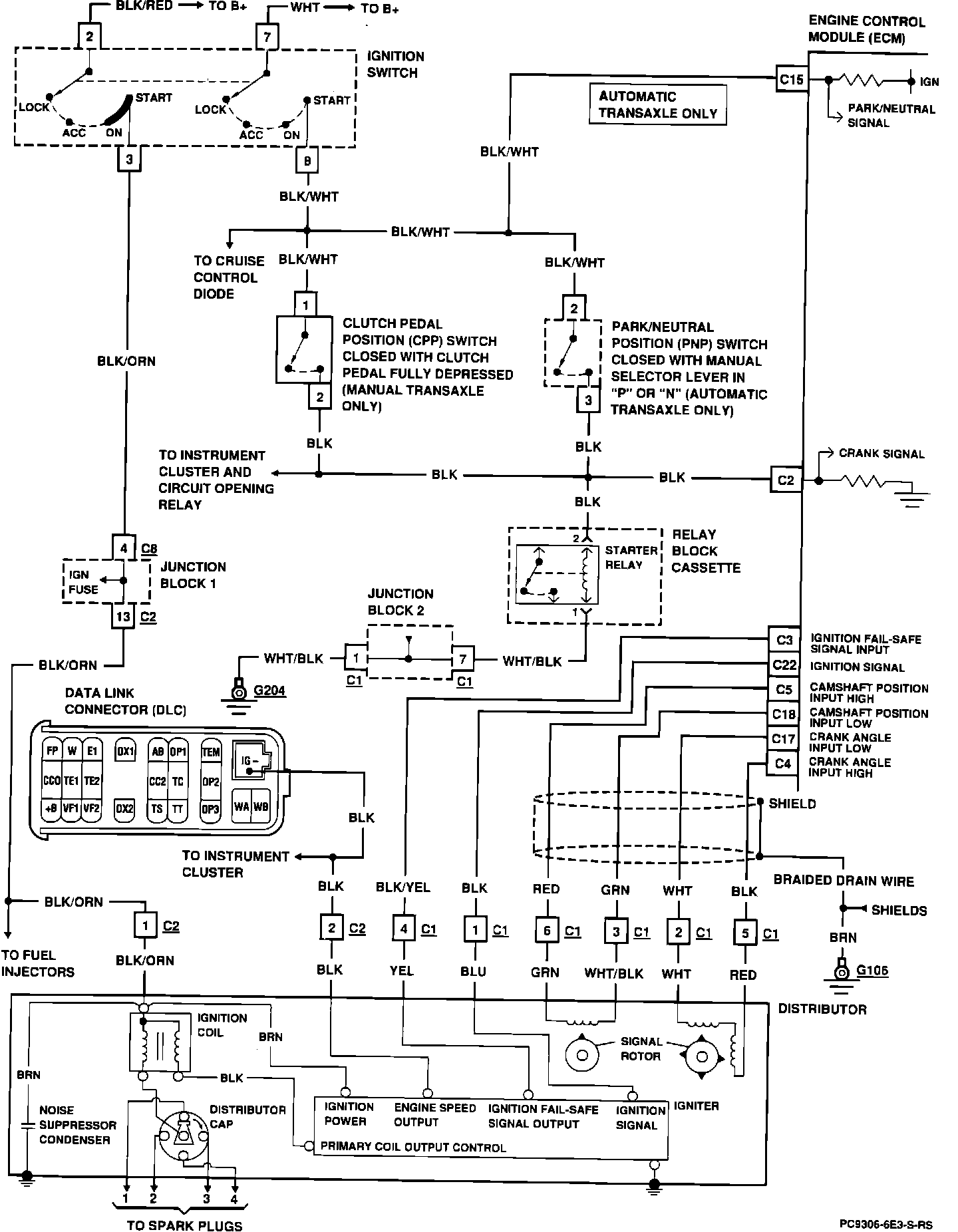

ECM System Schematic:

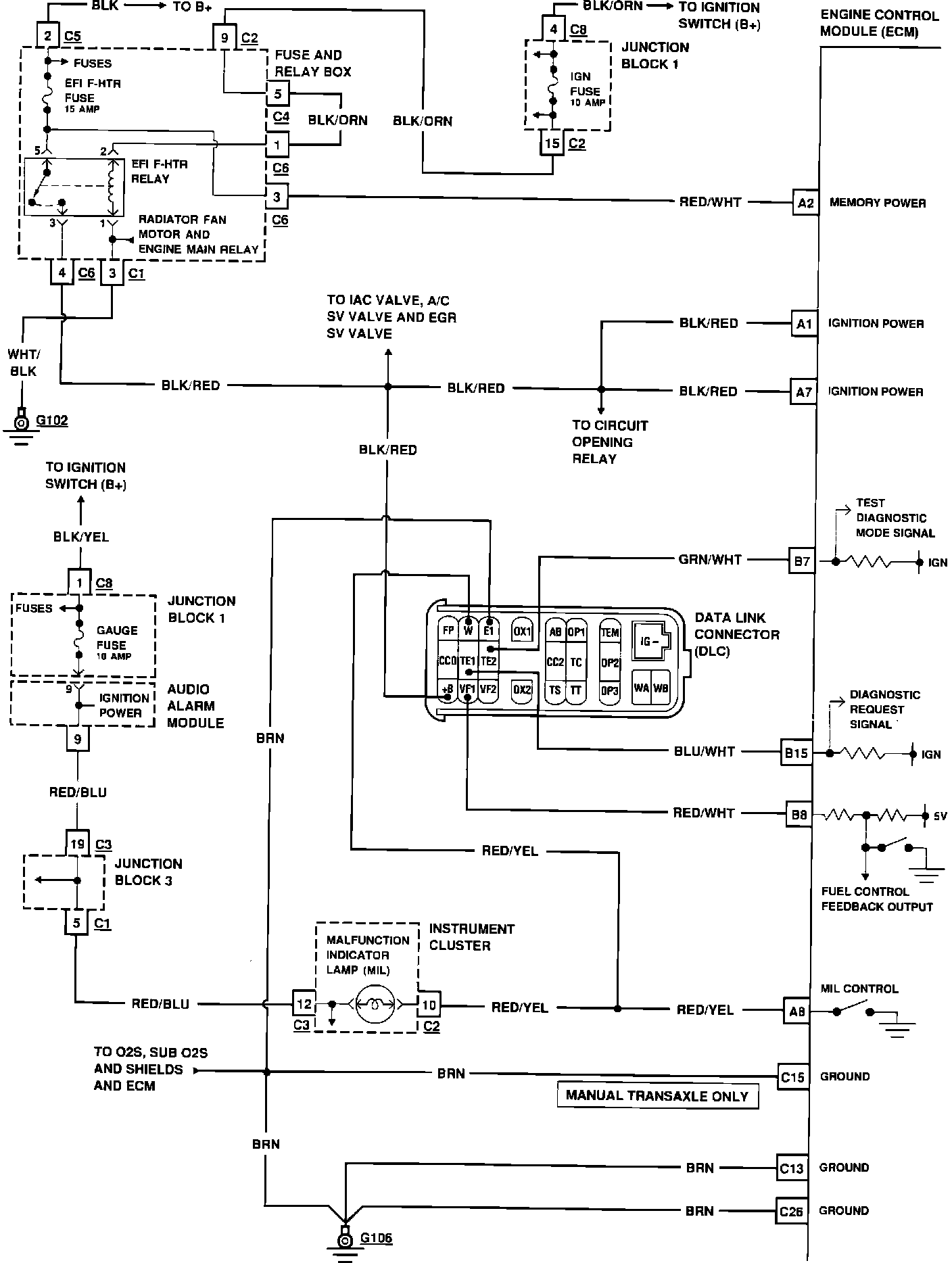

ECM System Schematic:

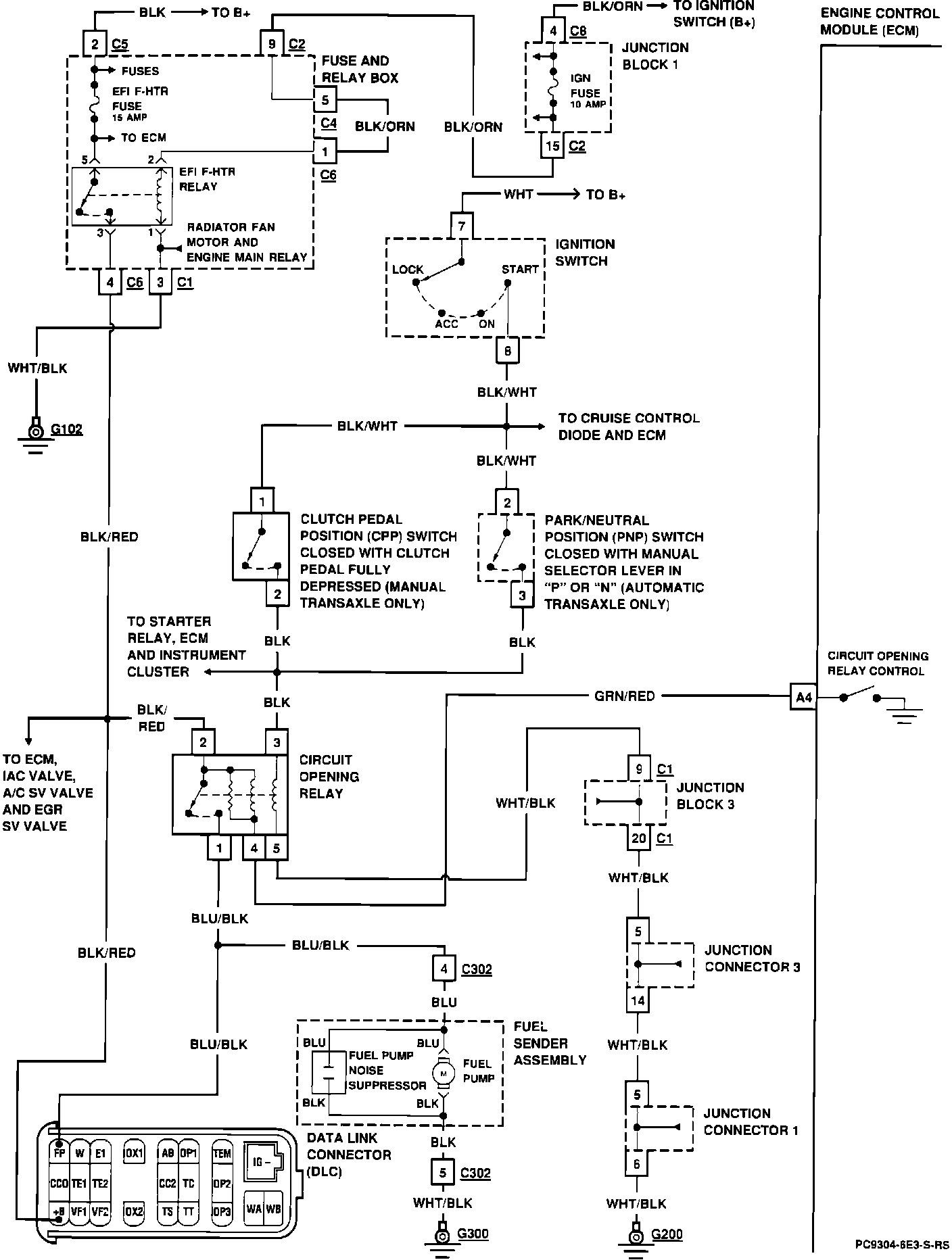

ECM System Schematic:

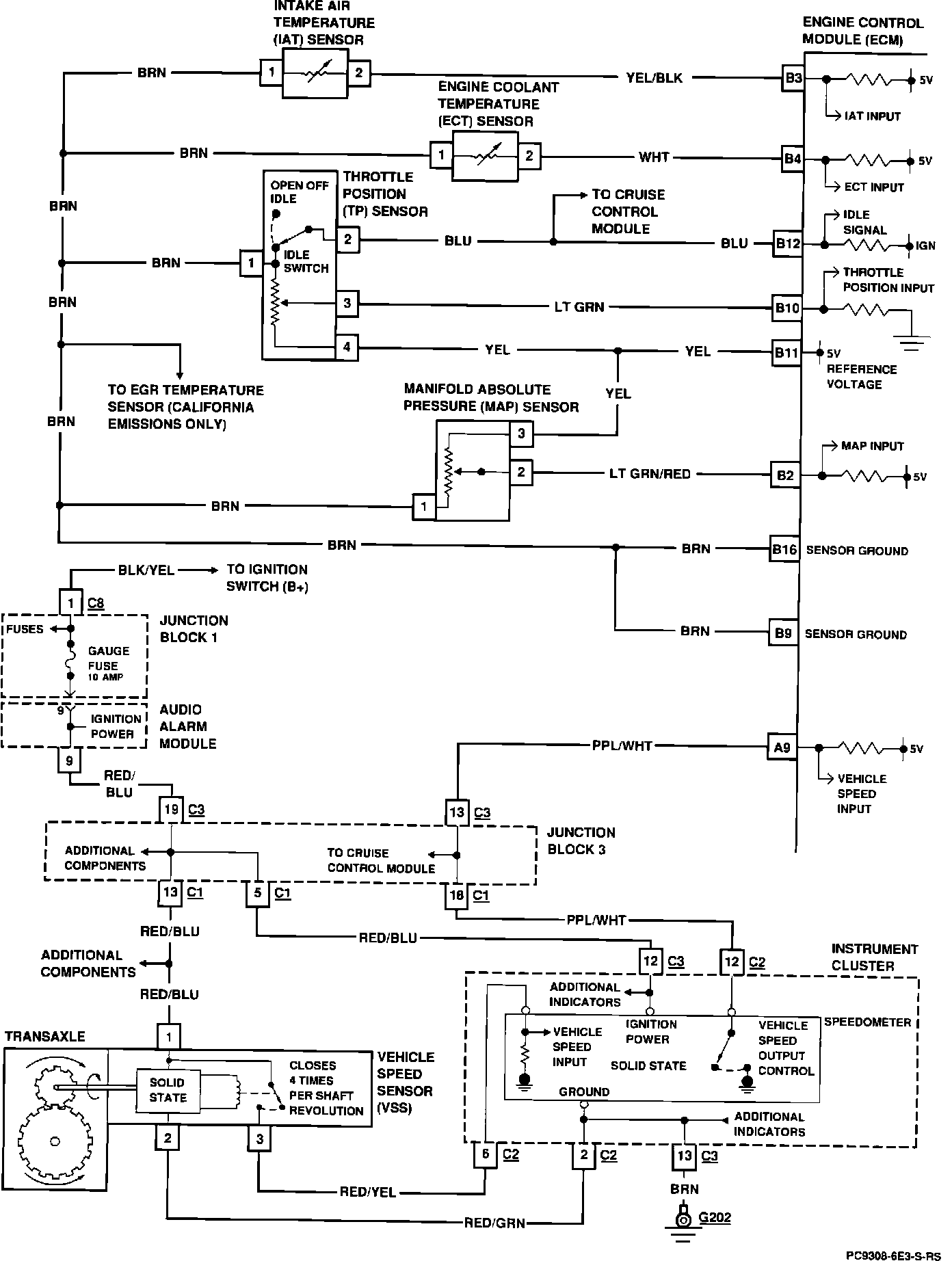

ECM System Schematic:

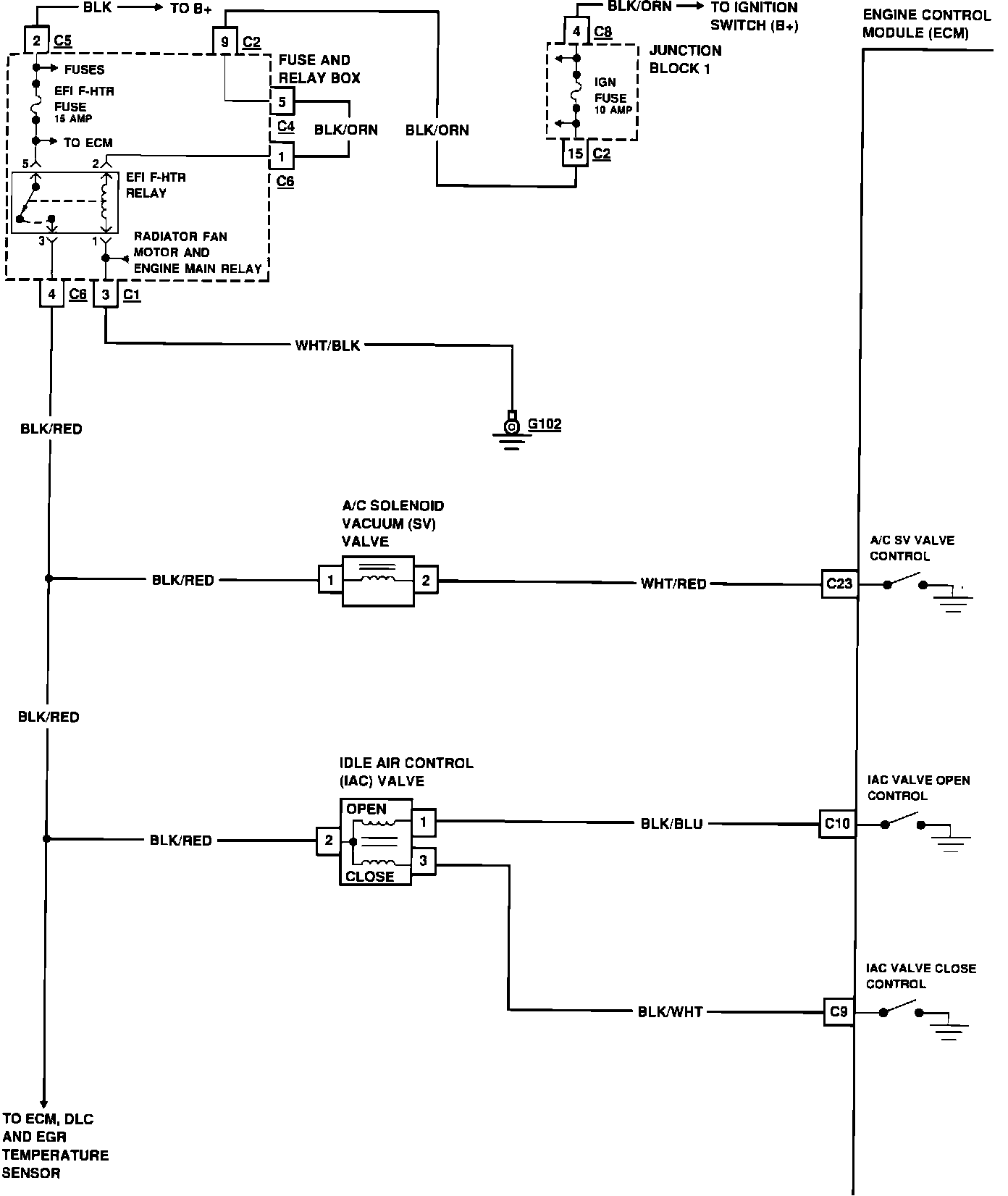

ECM System Schematic:



ECM System Schematic:
