Home
>>
Geo
>>
1994
>>
Prizm L4-1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Harness Connector
Harness Connector

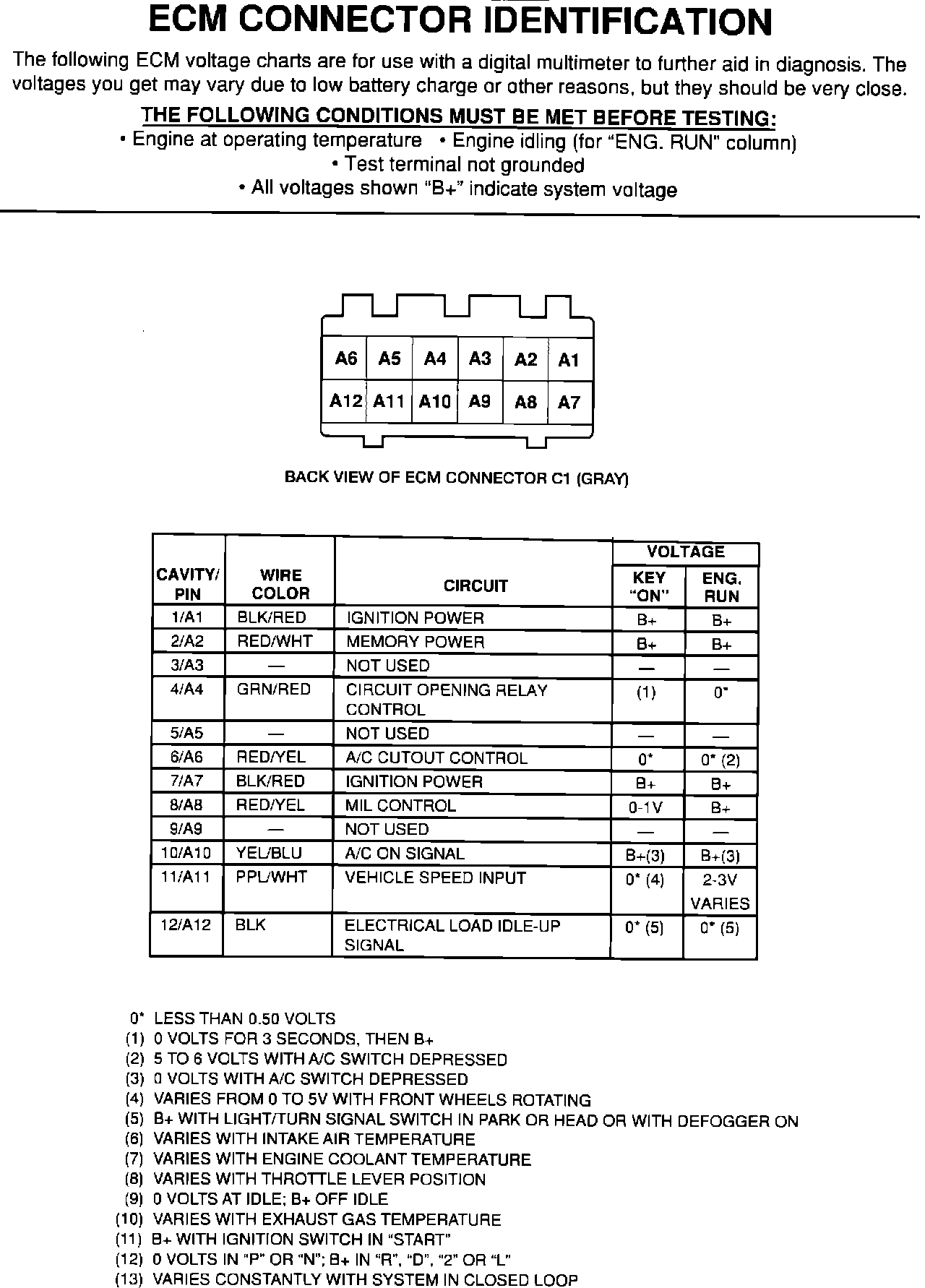

ECM Connector Pinout ID:

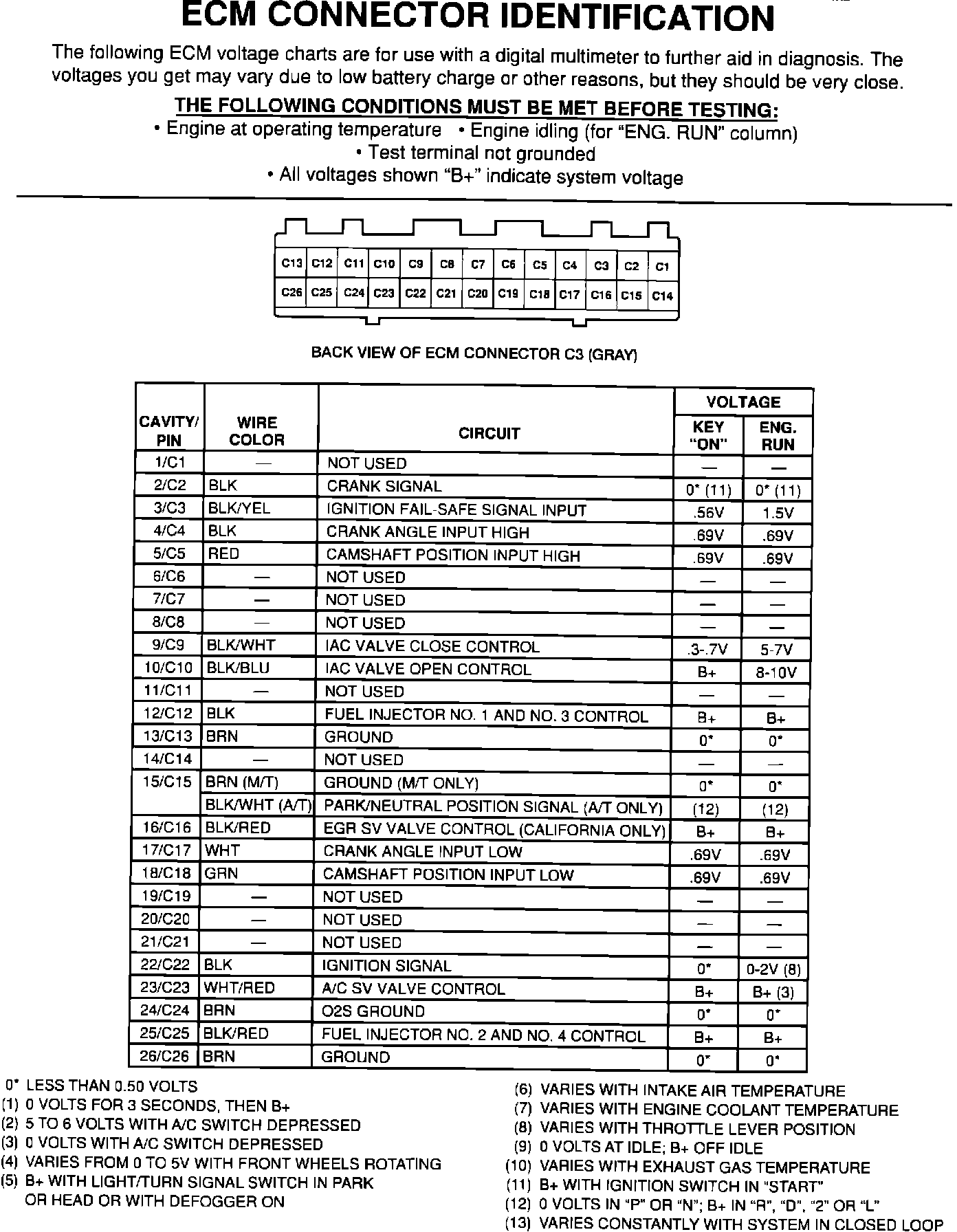

ECM Connector Pinout ID:

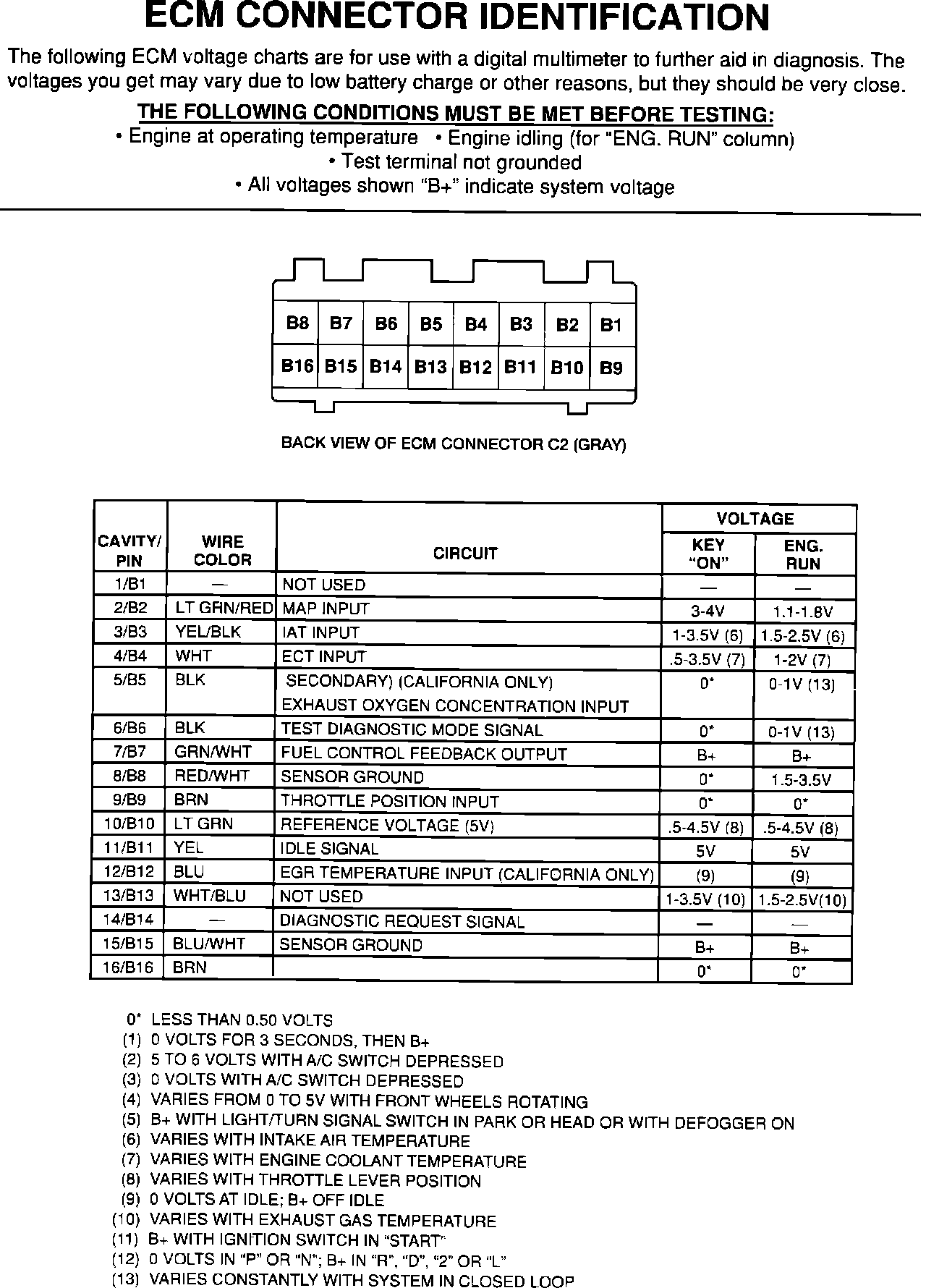

ECM Connector Pinout ID:
