Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams

Data Link Connector: Diagrams

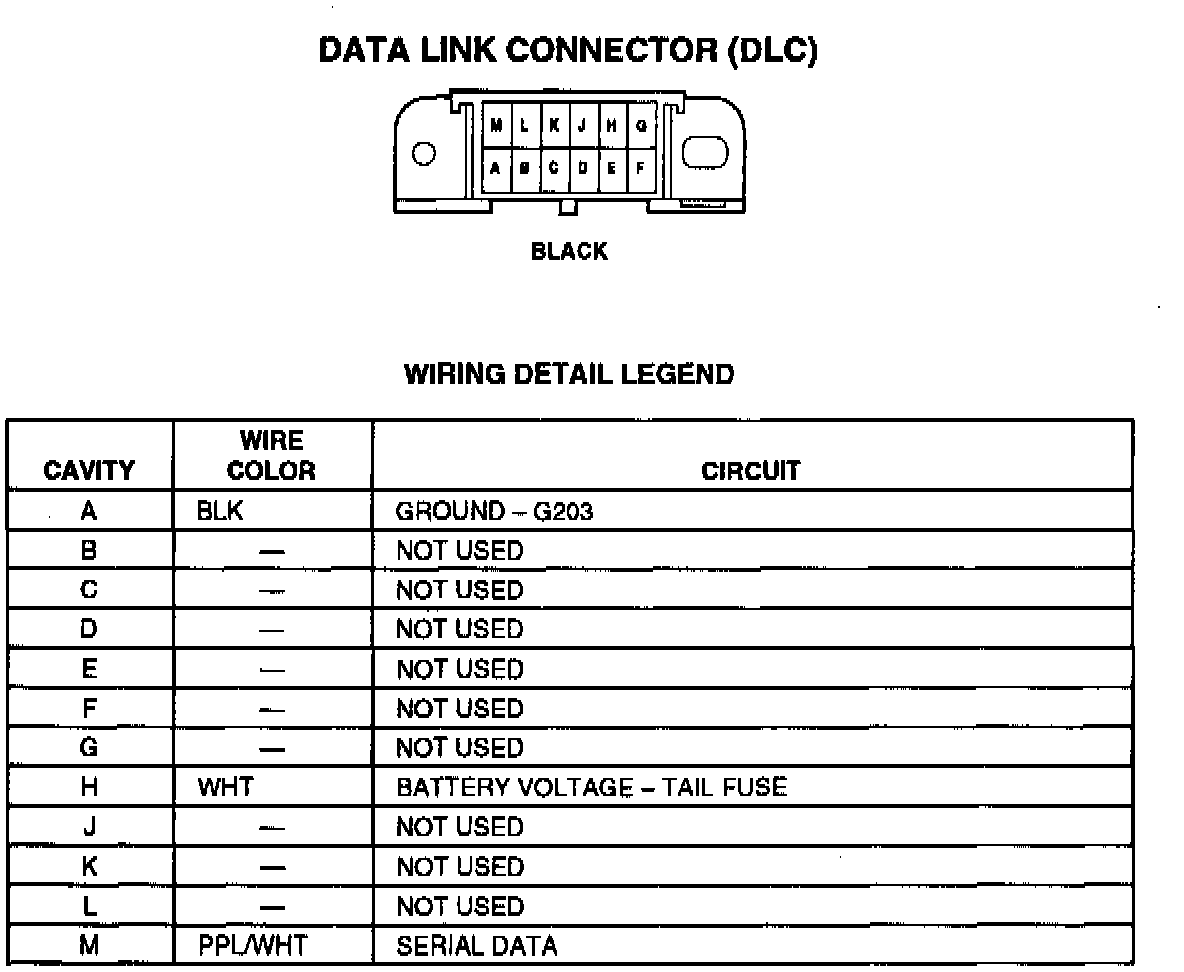

Connector Face:



Connector Face/Terminal Identification:
