Home
>>
Geo
>>
1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Upgraded Emissions
Upgraded Emissions

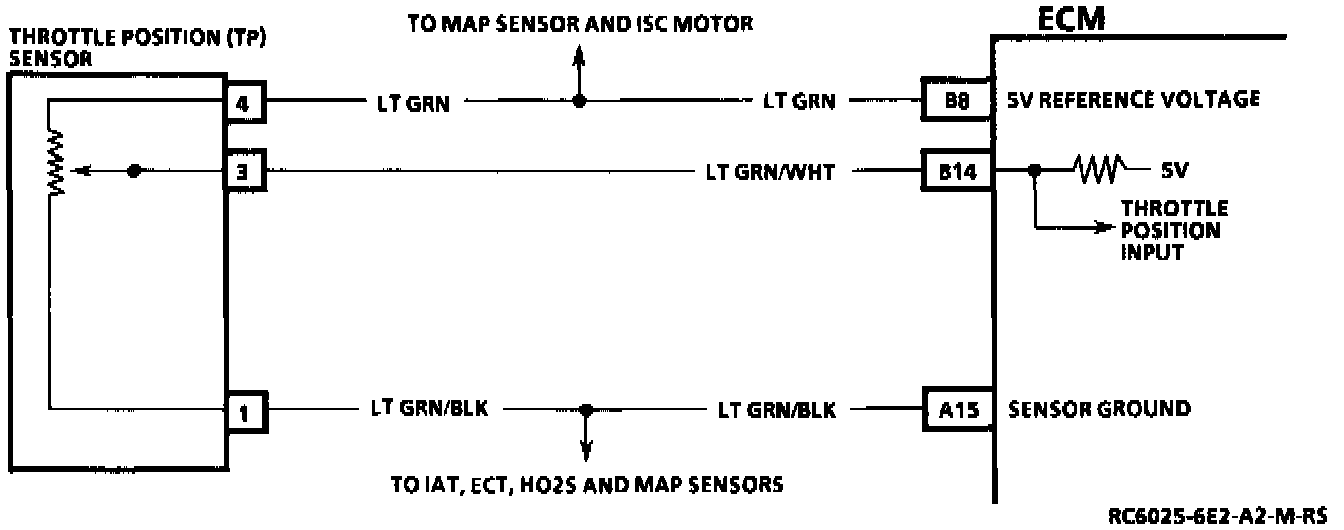

TPS Wiring Schematic:
