1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Standard Emissions
Standard Emissions

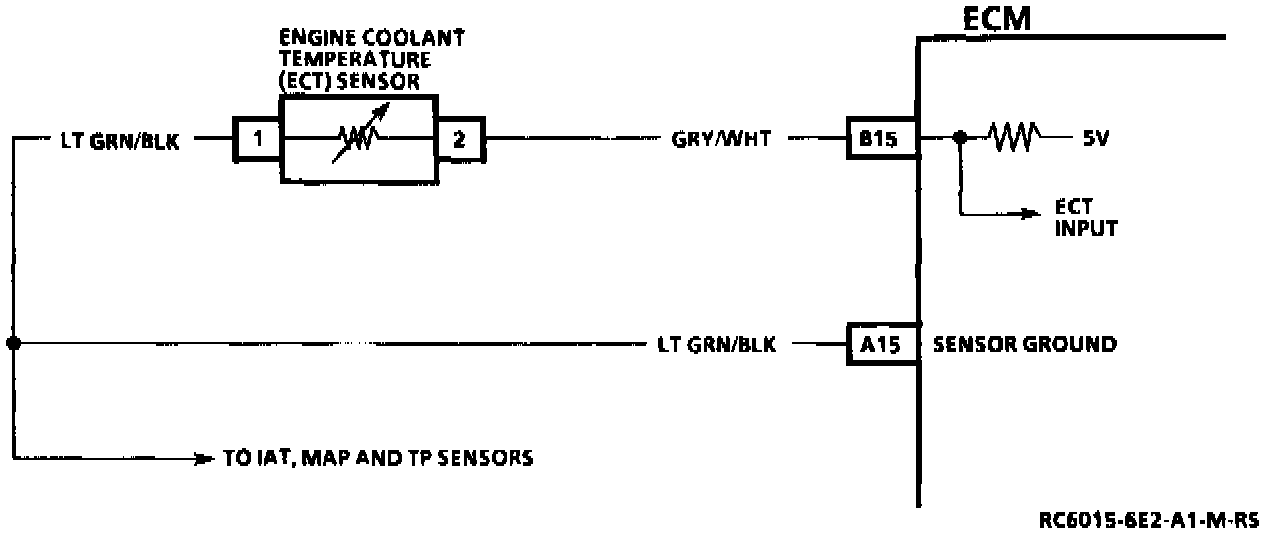

ECT Wiring Schematic:
