1992
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

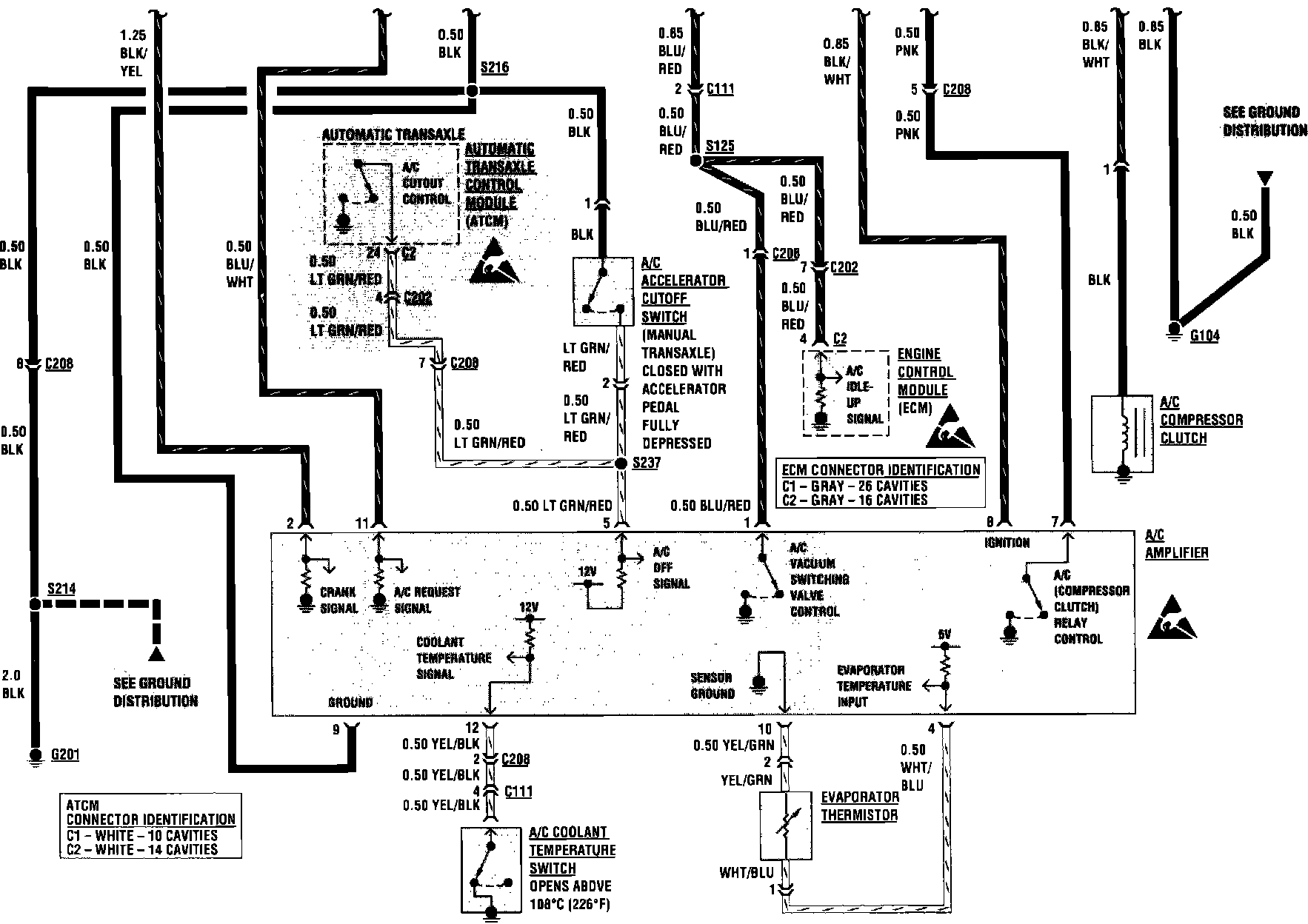

Air Conditioning: Compressor Controls:

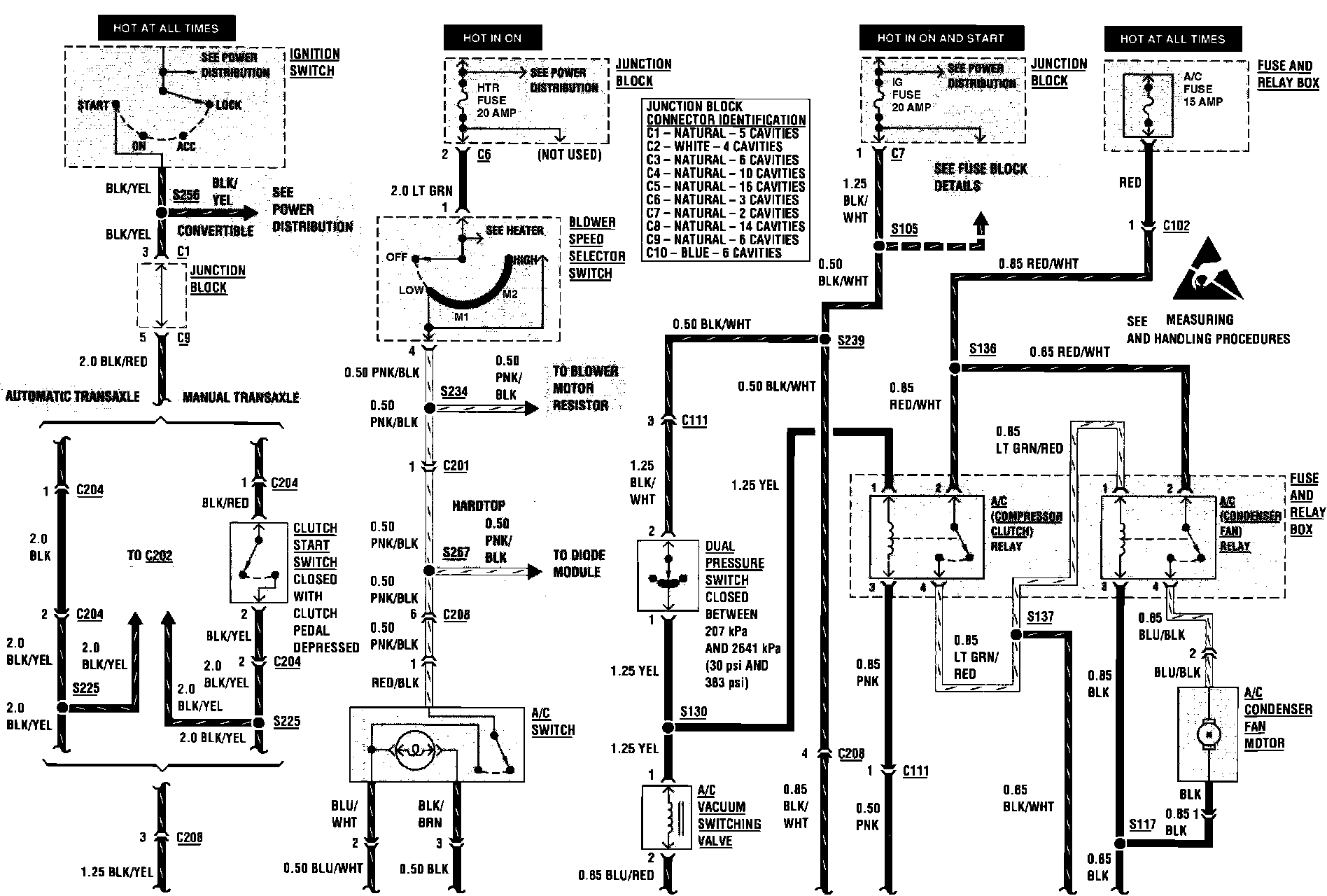

Air Conditioning: Compressor Controls:
