Home >> Geo >> 1991 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Idle Speed Control (ISC) >> Automatic Transaxle

Automatic Transaxle

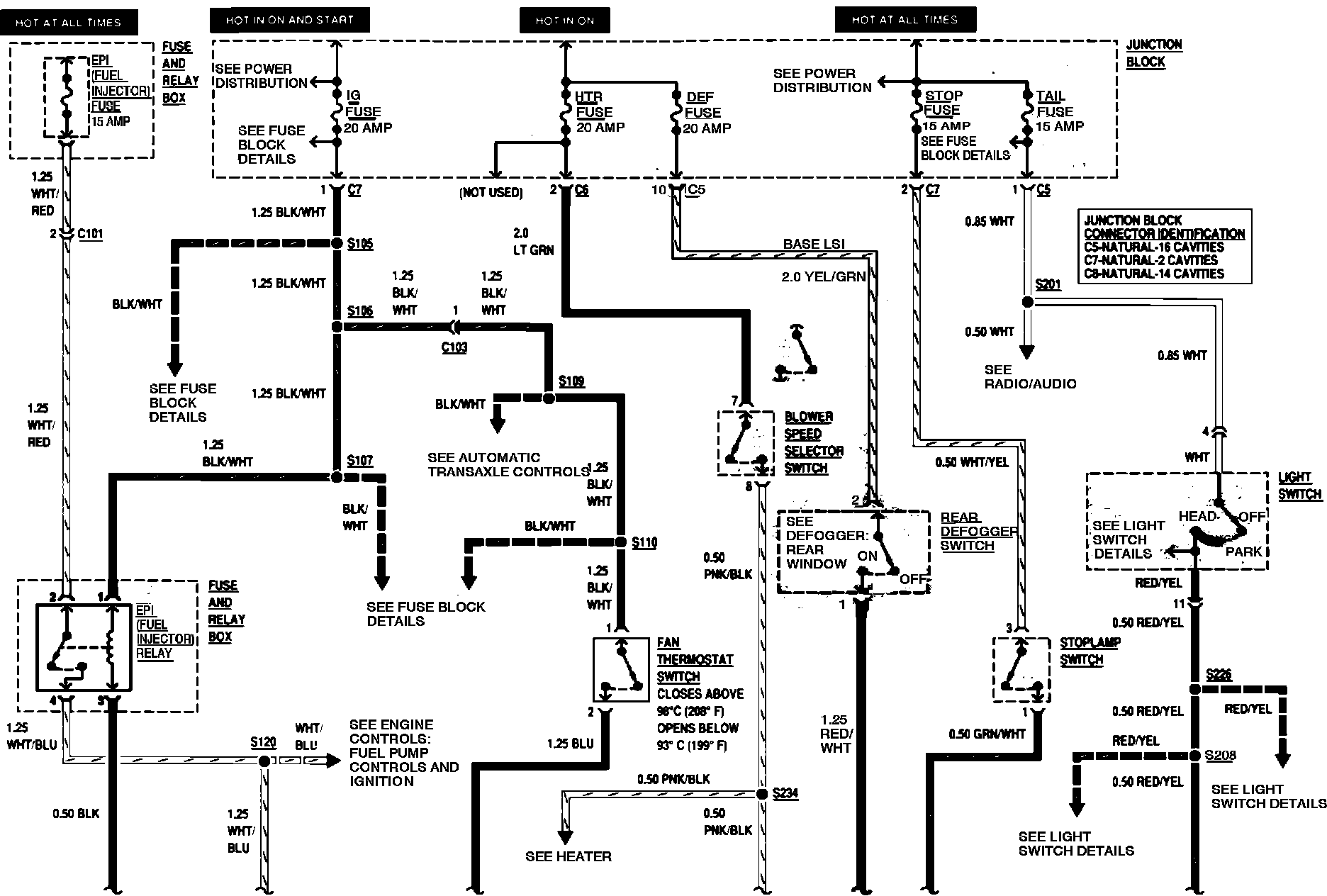

Engine Controls - Idle Speed Controls - Automatic Transaxle:

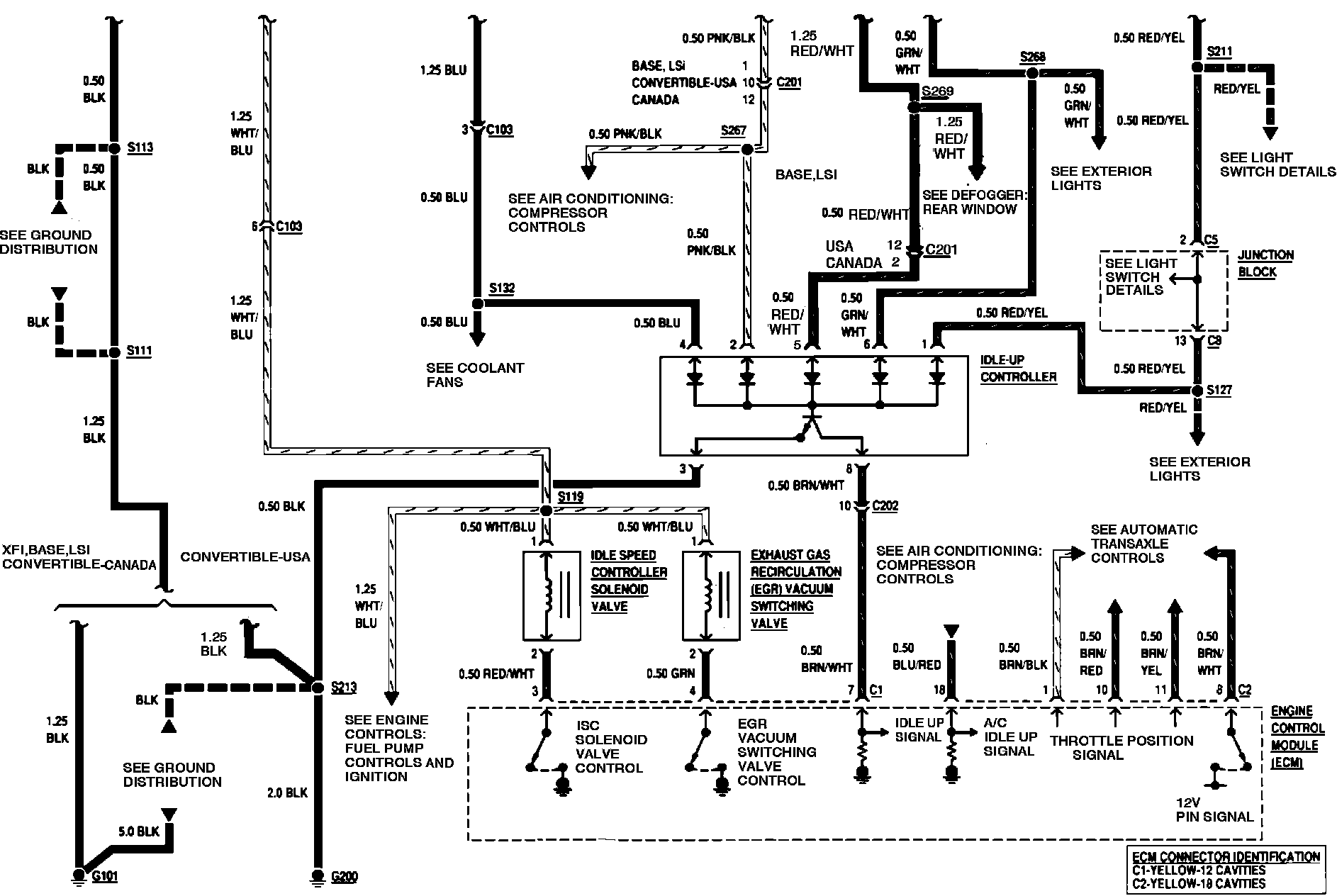

Engine Controls - Idle Speed Controls - Automatic Transaxle:
