Torque Stopper Bushing

REMOVE OR DISCONNECT
^ Tool Required:
- J 21777-101 Side Bearing Disc

1. Raise and suitably support vehicle.





2. One bolt, speedometer cable clip and ground wire from torque stopper housing.
3. One through bolt and nut from torque stopper bushing and torque stopper bracket.
4. Three bolts and torque stopper housing from transfer case crossmember.





NOTICE: When pressing the torque stopper bushing in or out of the torque stopper housing, the flush end of the torque stopper housing must be facing downward toward the press support.

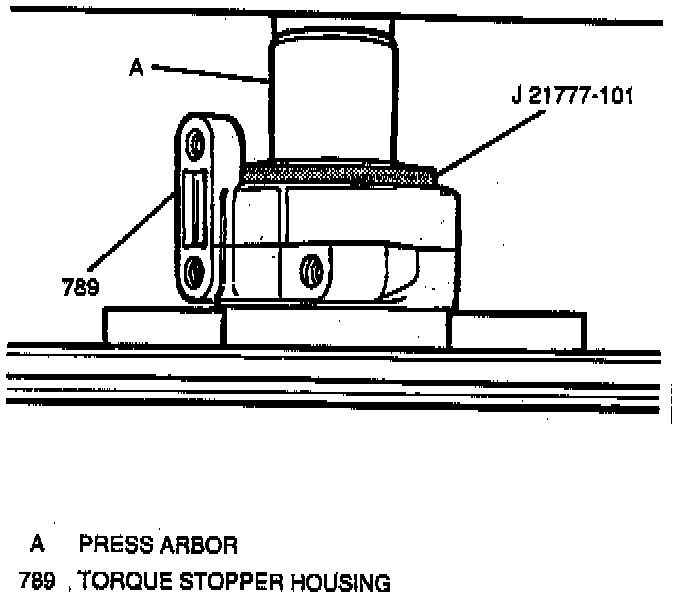

5. Torque stopper bushing from torque stopper bushing housing using J 21777-101 and a press arbor.

Inspect
- Torque stopper bushing for excessive wear or damage. Replace as necessary.

INSTALL OR CONNECT
^ Tools Required:
- J 21777-101 Side Bearing Disc
- J 36850 Transjel(R) Transmission Assembly Lubricant

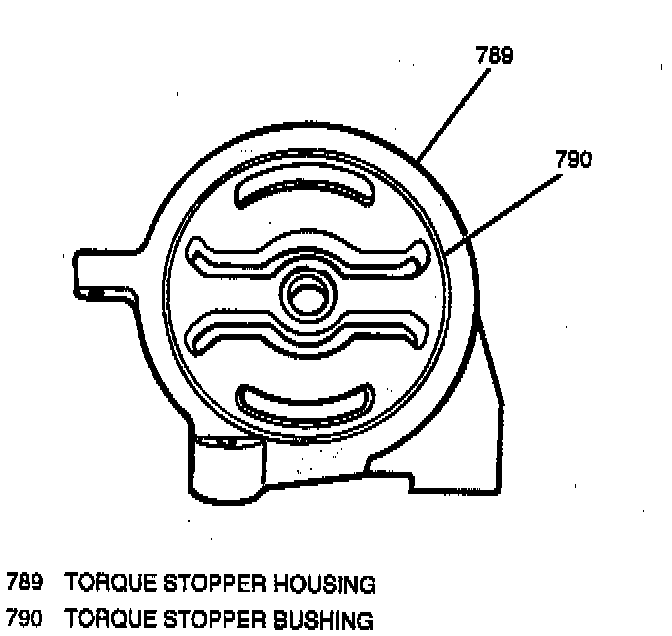

Important: When installing the torque stopper bushing, align the gaps in the bushing horizontally in the torque stopper housing. If the torque stopper bushing is not aligned correctly in the torque stopper housing, insufficient torque absorption under high throttle conditions may result.

NOTICE: When pressing the torque stopper bushing in or out of the torque stopper housing, the flush end of the torque stopper housing must be facing downward toward the press support.

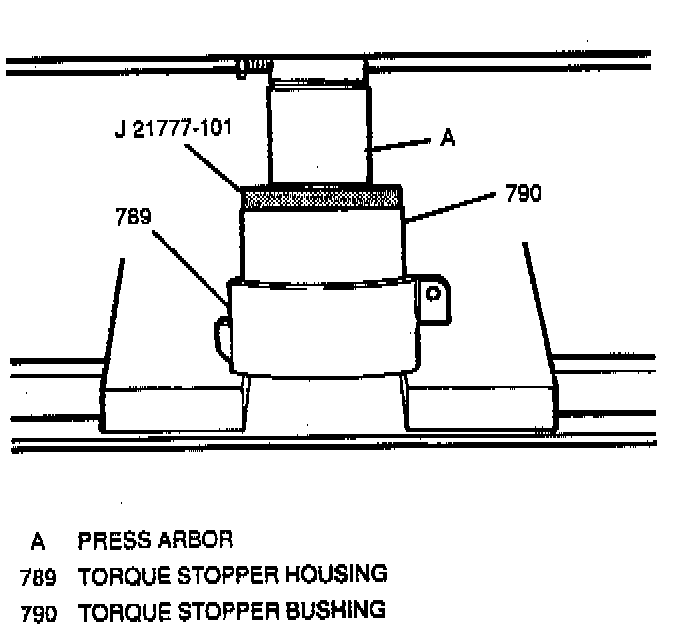

1. Torque stopper bushing into torque stopper housing using J 121777-101 and press arbor.
2. Torque stopper housing to transfer case
- Torque stopper mounting bolts to 50 Nm (37 ft. lbs.).
3. One through bolt and nut to torque stopper bushing and torque stopper bracket.
- Tighten torque stopper bushing through bolt and nut to 50 Nm (37 ft. lbs.).
4. Ground wire and speedometer cable clip to torque stopper housing; secure with one bolt.
- Tighten speedometer cable clip bolt to 10 Nm (89 inch lbs.).
5. Lower vehicle.
