Speedometer Gear: Service and Repair

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.





2. Speedometer cable from speedometer driven gear case.
3. Retaining bolt and speedometer driven gear case from transfer case.

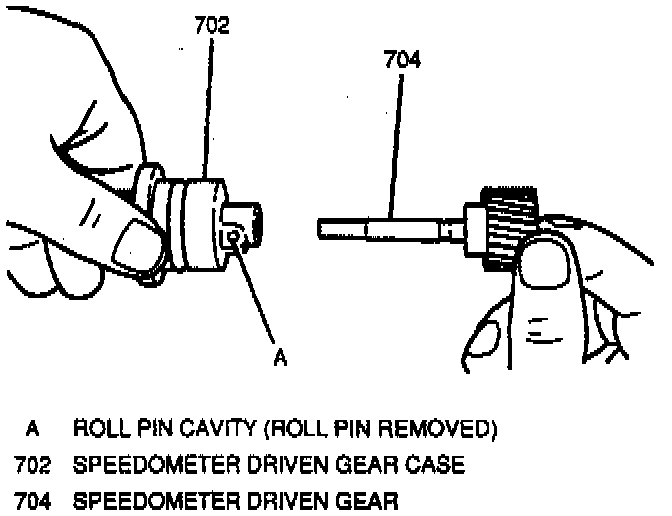

4. One roll pin and speedometer driven gear from speedometer driven gear case.





5. Speedometer driven gear lip seal from speedometer driven gear case.

Inspect
- Speedometer driven gear for excessive wear or damage. Replace as necessary.

INSTALL OR CONNECT
^ Tools Required:
- J 34833 Valve Guide Remover
- J 36850 Transaxle Transmission Assembly Lubricant

1. Apply J 36850 to the new speedometer driven gear lip seal

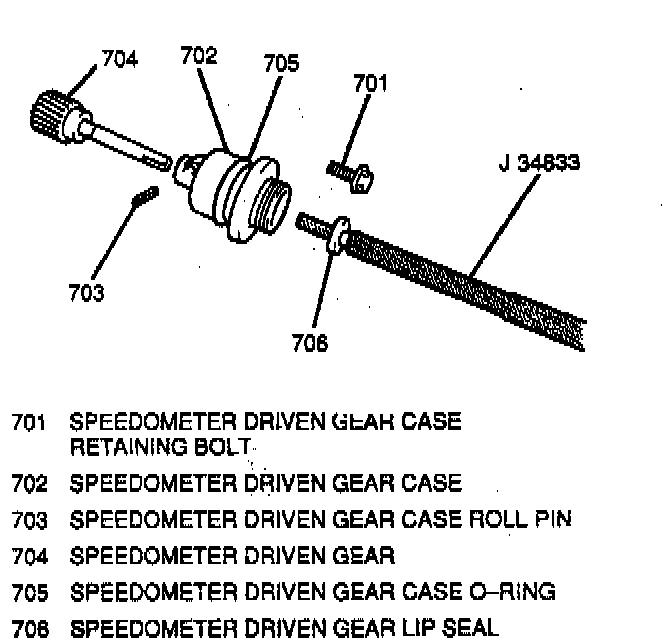

2. New speedometer driven gear lip seal into the speedometer driven gear case using J 34833.
3. Speedometer driven gear into the speedometer driven gear case; secure with one roll pin.
4. Apply J 36850 to the speedometer driven gear case O-ring.
5. Speedometer driven gear case into transfer case; secure with retaining bolt.
- Speedometer driven gear case retaining bolt to 10 Nm (89 inch lbs.).
6. Speedometer cable to speedometer driven gear case.
7. Lower vehicle.
