Replacement

REMOVE OR DISCONNECT
1. Siphon two-thirds of fluid cylinder reservoir.
2. Raise and suitably support vehicle.
3. Tire/wheel assembly.

Caliper Assembly:

4. Position C-clamp around the outer pad and caliper and tighten until the piston bottoms in its bore.





5. Brake hose E-clip.

Removing Caliper Pin Bolts:

6. Two caliper pin bolts.





7. Caliper assembly from caliper carrier. Suspend caliper with wire to prevent damage to the brake hose.
8. Inboard anti-noise shim from caliper and discard.
9. Outboard anti-noise shim from outboard pad and discard.

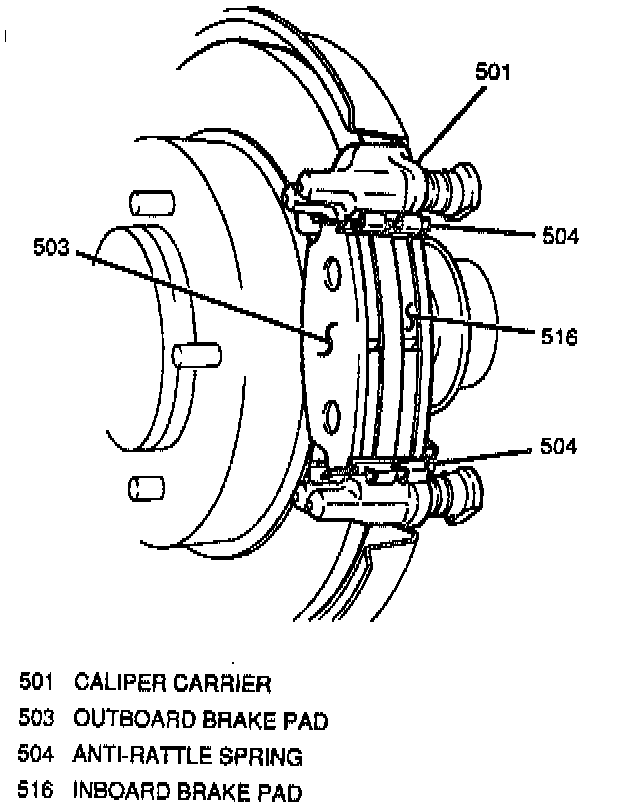

Brake Pads:

10. Pads from caliper carrier.
11. Two anti-rattle springs from caliper carrier.

INSTALL OR CONNECT
1. Two anti-rattle springs to caliper carrier.
2. New outboard anti-noise shim to outboard pad.
3. New inboard anti-noise shim to caliper.
4. Pads to caliper carrier.
5. Caliper assembly to caliper carrier, secure with caliper pin bolts, then tighten to 27 Nm (20 ft. lbs.).
6. Brake hose E-clip.
7. Tire/wheel assembly.
8. Lower vehicle.
9. Fill master cylinder fluid reservoir.
10. Burnishing linings. Burnishing Linings
