Wiper Blade Replacment

Rear Wiper/Washer System:

Removing Rear Wiper Arm Retaining Nut:

Remove or Disconnect
1. Spare tire from rear door to gain access to rear wiper arm by removing spare tire cover, tire lock and wheel nuts.

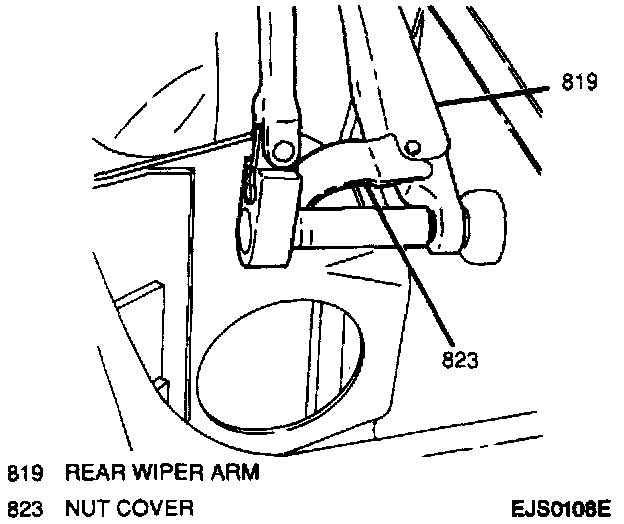

2. Lift nut cover to gain access to rear wiper arm retaining nut.

IMPORTANT
^ Before removing the rear wiper arm, note its location for proper installation.
3. Rear wiper arm retaining nut from rear wiper arm.
4. Rear wiper arm from rear wiper pivot assembly.

Install or Connect
1. Rear wiper arm to rear wiper pivot assembly; secure with retaining nut.

Tighten
^ Rear wiper arm retaining nut to 20 N.m (15 lb.ft.).

2. Place nut cover over rear wiper arm retaining nut.
3. Spare tire to rear door; secure with wheel nuts.

Tighten
^ Spare tire wheel nuts to 54 N.m (40 lb.ft.).

4. Tire lock and spare tire cover.
