Pilot Bearing: Service and Repair

REMOVE OR DISCONNECT

^ Tools Required:
- J 34839 Pinion Bearing Remover
- J 37764 Pilot Bearing Remover Adapter
- J 23907 Clutch Pilot Bearing Remover

1. Manual transmission assembly from vehicle.
2. Pressure plate and clutch disc from flywheel.

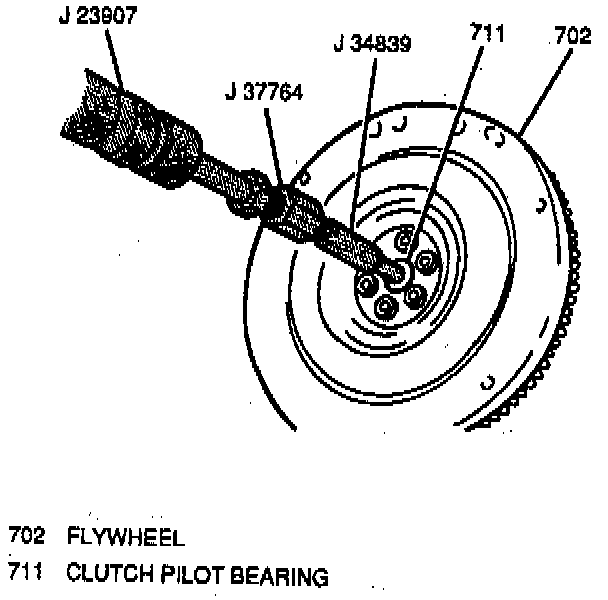

3. Clutch pilot bearing from crankshaft using J 34839 with J 37764 and J 23907.

Inspect

- Clutch pilot bearing for scoring, binding or rough operation. Replace as necessary.

INSTALL OR CONNECT
^ Tools Required:
- J 7079-2 Driver Handle
- J 34848 Clutch Pilot Bearing Installer





1. Clutch pilot bearing into crankshaft using J 34848 with J 7079-2.
2. Clutch disc and pressure plate to flywheel.
3. Manual transmission assembly into vehicle.
