Speedometer Driven Gear
REMOVE OR DISCONNECT1. Raise and suitably support vehicle.
2. Speedometer cable from speedometer driven gear case.
3. One bolt and speedometer guide bracket from extension housing.
4. Speedometer driven gear case from extension housing.

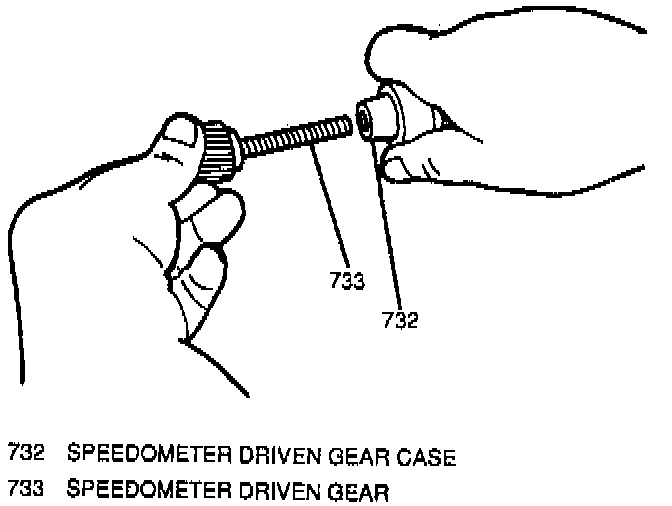

5. Speedometer driven gear from speedometer driven gear case.
6. Speedometer driven gear case lip seal from speedometer driven gear case.
Inspect
- Speedometer driven gear for excessive wear. Replace as necessary.
- Speedometer driven gear case O-ring for cuts or other damage. Replace as necessary.
INSTALL OR CONNECT
^ Tool Required:
- J 36850 Transjel(R) Transmission Assembly Lubricant
1. Apply a thin coat of J 36850 to all speedometer driven gear components prior to assembly.
2. New speedometer driven gear case lip seal into speedometer driven gear case.
3. Speedometer driven gear into speedometer driven gear case.
4. Speedometer driven gear case into extension housing.
5. One bolt and speedometer guide bracket to extension housing.
- Tighten speedometer guide bracket bolt to 9 Nm (80 inch lbs.).
6. Speedometer cable to speedometer driven gear case.
7. Lower vehicle.
