3L30

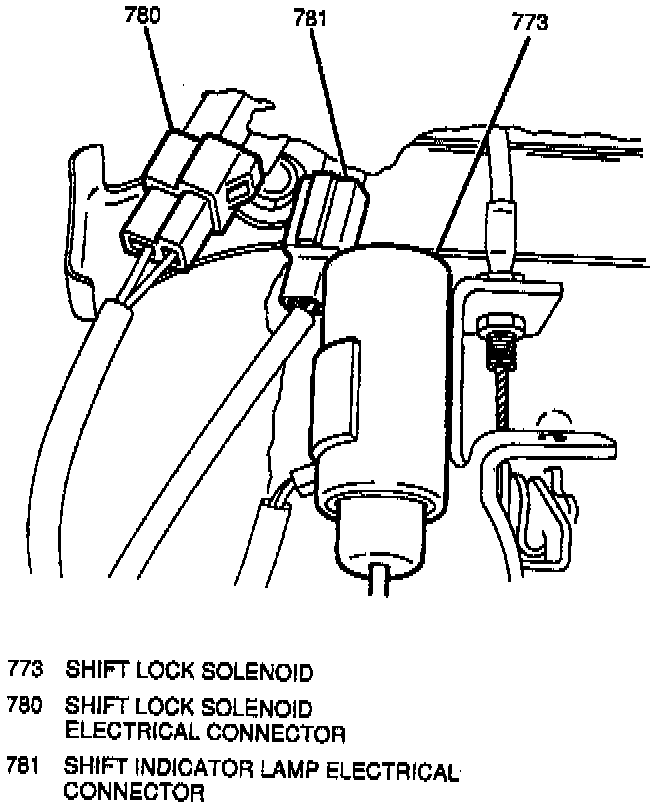

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Console from floor.





3. Shift lock solenoid electrical connector under carpet.
4. One bolt and shift lock solenoid from manual selector.


INSTALL OR CONNECT
1. Shift lock solenoid to manual selector; secure with one bolt.
- Tighten Shift lock solenoid retaining bolt to 10 Nm (89 inch lbs.).
2. Shift lock solenoid electrical connector under carpet.
3. Console box to floor.
4. Negative (-) battery cable.
