Rear Suspension

REMOVE OR DISCONNECT
^ Tools Required:
- J 29792 Front Control Arm Bushing Service Set
- J 35561 Front Control Arm Bushing Service Set
- Or Equivalents

1. Rear suspension upper control arm from vehicle.

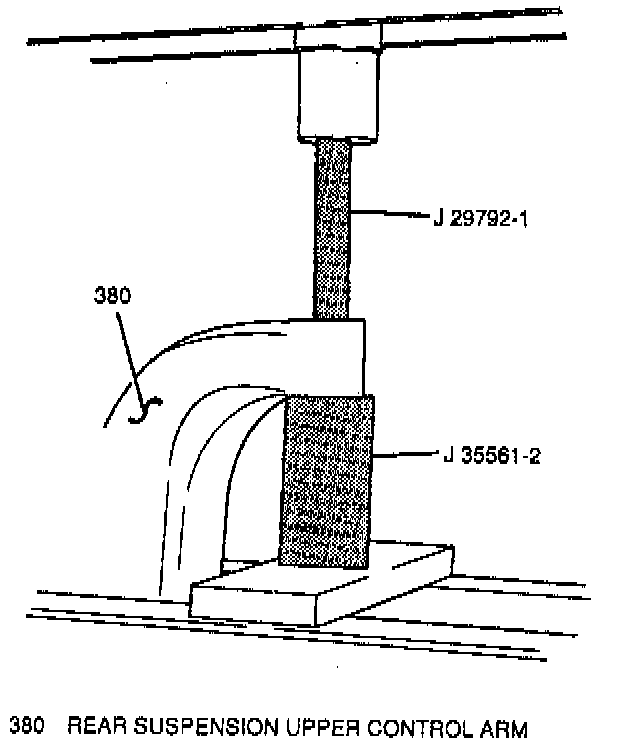

2. Mount upper control arm into a press with J 29792-1 and J 35561-2.
3. Bushing from upper control arm using a press.


INSTALL OR CONNECT
^ Tools Required:
- J 29792-1 Front Control Arm Bushing Service Set
- J 35561-2 Front Control Arm Bushing Service Set
- Or Equivalents

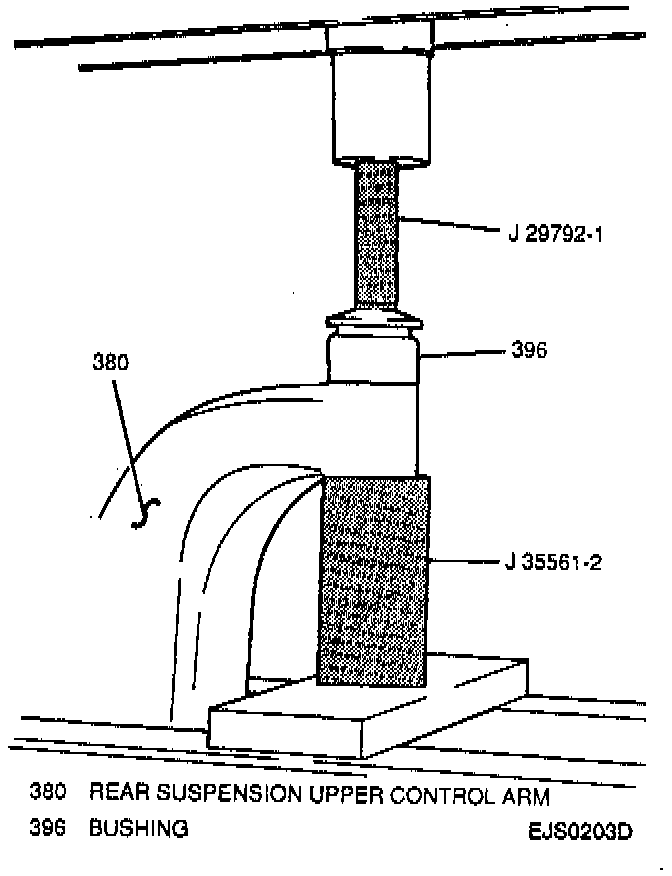

1. New bushing into upper control arm using a press, J 29792-1 and J 35561-2.
2. Upper control arm to vehicle.
