Front Suspension

REMOVE OR DISCONNECT

^ Tools Required:
- J 35561 Front Control Arm Bushing Service Set
- J 29792 Front Control Arm Bushing Service Set
- J 9519-7 Bearing Remover
- J 9519- 17 Bearing Remover
- Or Equivalents

1. Control arm from vehicle.

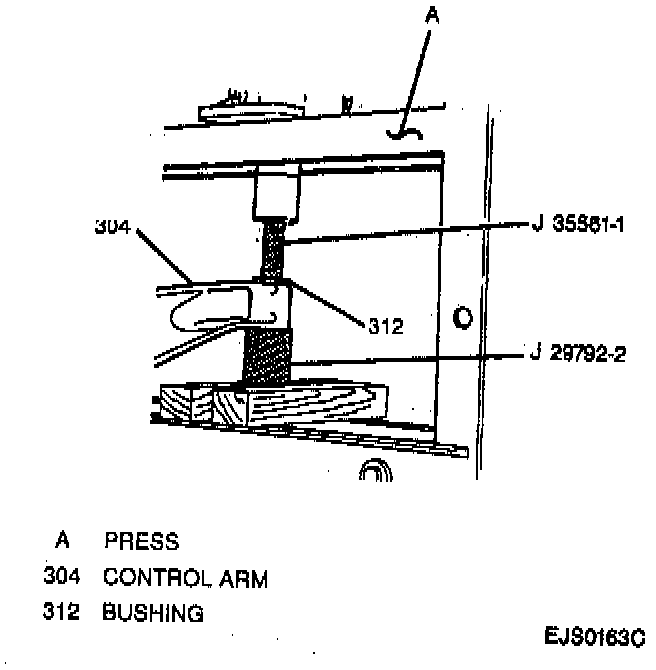

2. Using J 35561-1, J 29792-2 and a press, remove the bushing from the short branch of the control arm.

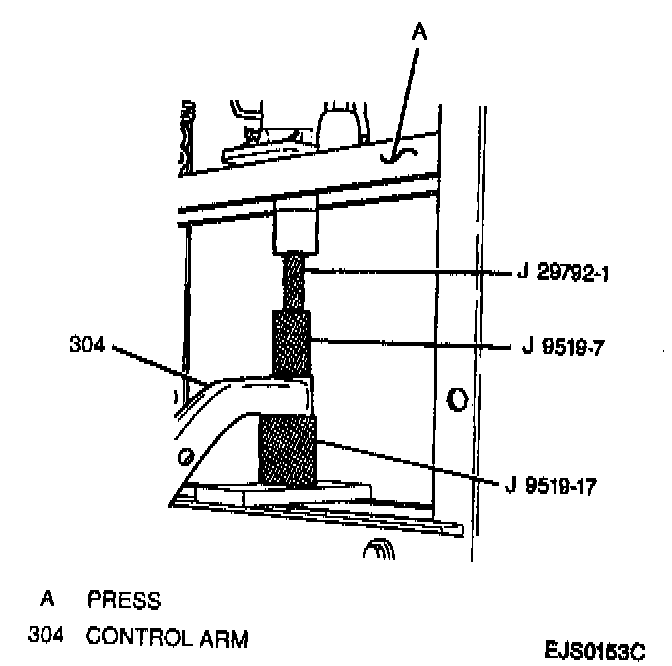

3. Using J 29792-1, J 9519-7, J 9519-17 and press, remove the bushing from the long branch of the control arm.


INSTALL OR CONNECT

^ Tools Required
- J 35561 Front Control Arm Bushing Service Set
- J 29792 Front control Arm Bushing Service Set
- J 9519- 16 Bearing Remover
- J 9519-9 Bearing Remover
- Or Equivalents

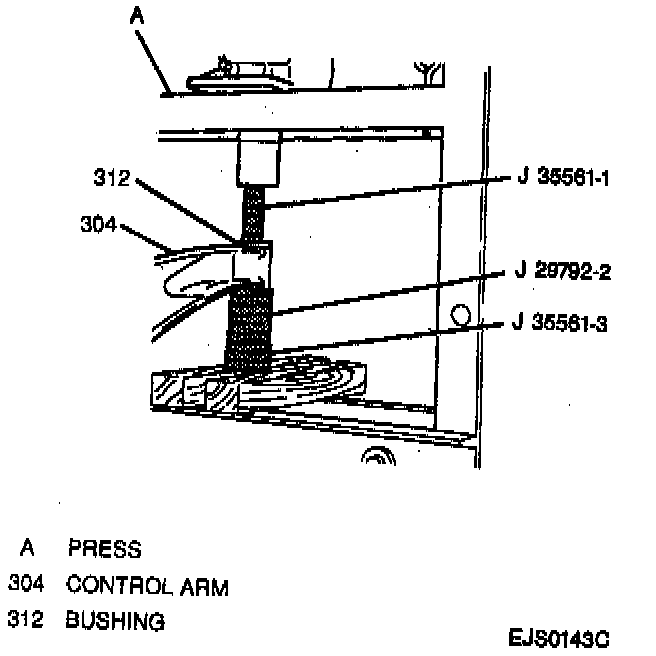

1. Using J 35561, J 29792-2 and press, install a new bushing into the short branch of the control arm.

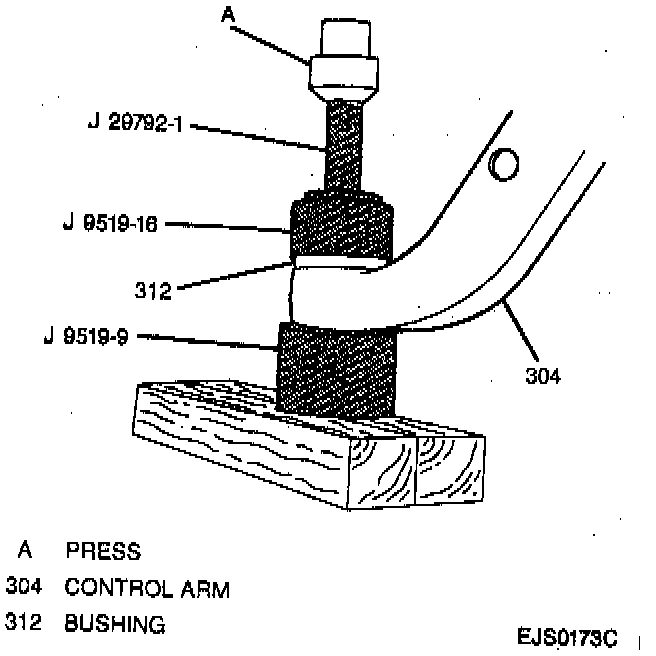

2. Using J 29792-1, J 9519-9 and J9519-16 and press, install a new bushing into the long branch of the control arm.
3. Control arm to vehicle.
