Evaporative Emission Control Canister: Service and Repair

Comp. Loc:

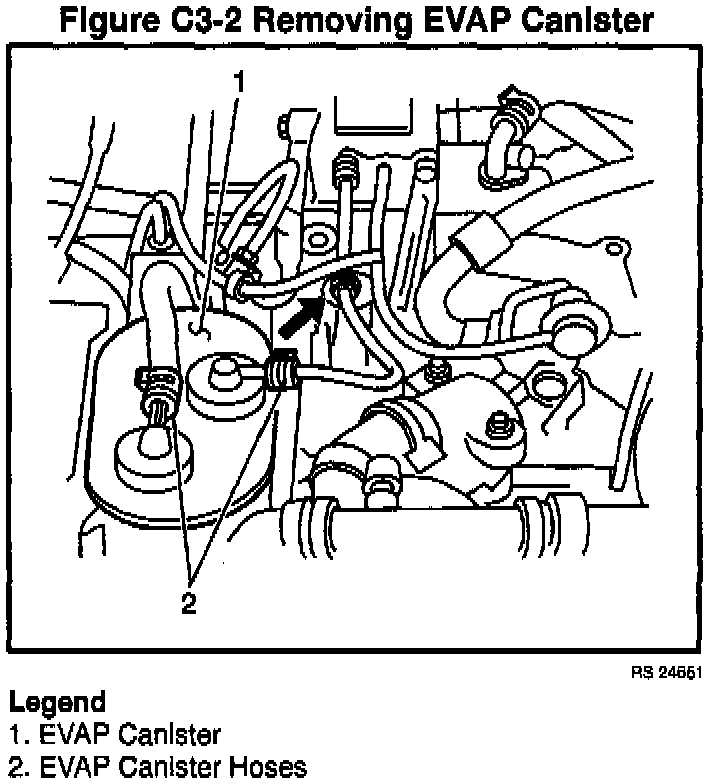

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Three vacuum hoses from Evaporative Emission (EVAP) canister.
3. EVAP canister from engine compartment.

INSTALL OR CONNECT
1. EVAP canister to engine compartment.
2. Three vacuum hoses to EVAP canister.
3. Negative (-) battery cable. Tighten negative (-) battery cable-to-negative (-) battery terminal retainer to 15 Nm (11 lb. ft.).
