Power Indicator Does Not Light

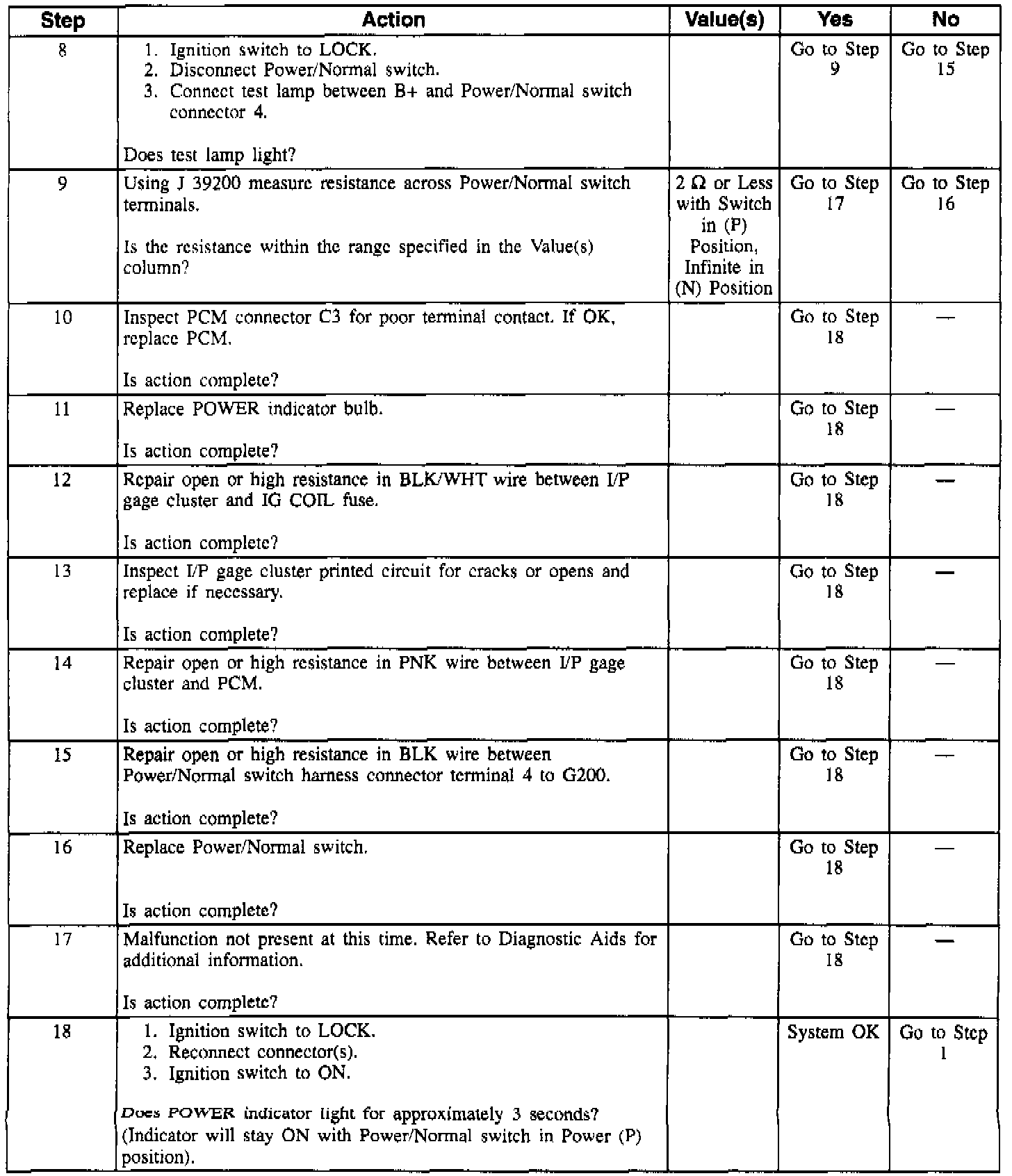

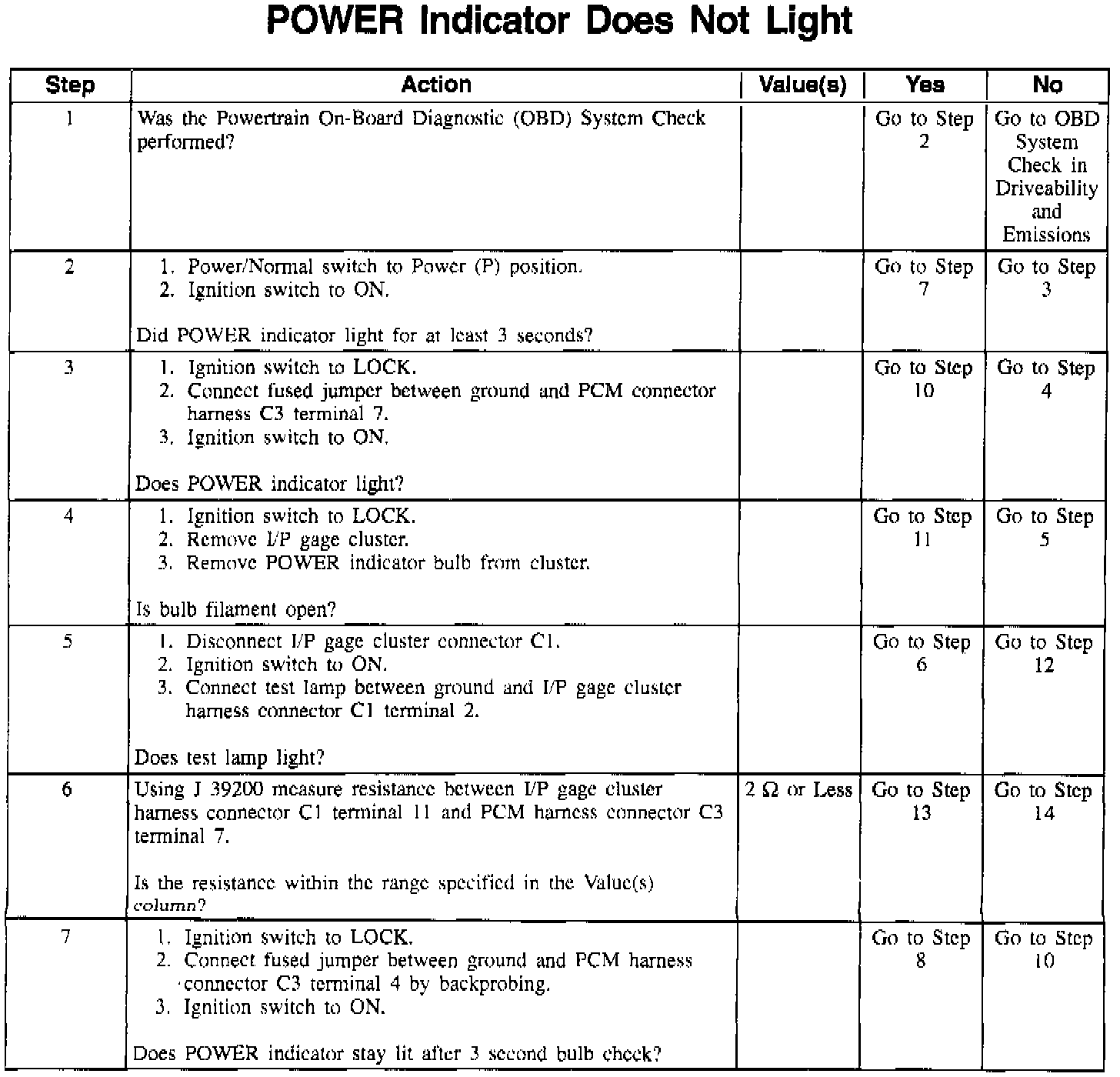

Diagnostic Chart:

Description:

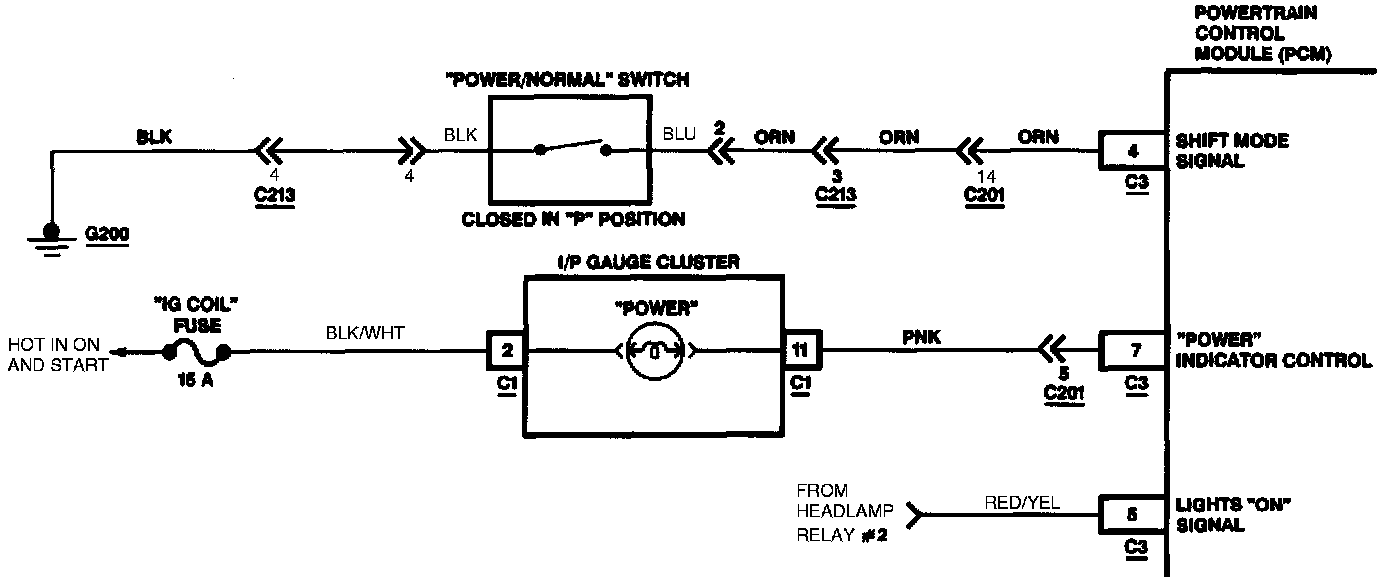

Wiring Diagram:

Circuit Description

When the ignition switch is turned to the ON position, the Powertrain Control Module (PCM) performs a three second POWER indicator bulb check by ground the POWER indicator control circuit during such period. When the Power/Normal switch is set to Power (P), it grounds the shift mode signal circuit to the PCM. This causes the PCM to ground the POWER indicator control circuit, turning on the POWER indicator lamp located in the I/P gage cluster. This indicator informs the driver that the PCM is using the Power gear shift schedule (delaying upshifting for improved acceleration). When this indicator is on and parking lamps/headlamps are turned on, the PCM dims the POWER indicator lamp by adding additional internal resistance to the POWER indicator control output circuit. This reduces excessive glare to the driver from the POWER indicator lamp at night. When the Power/Normal switch is set to Normal (N), it removes a path to ground to the shift mode signal circuit. Then, the PCM turns off the POWER indicator lamp and the PCM uses the Normal gear shift schedule (early upshifting for improved fuel economy).

Diagnostic Aids

Check for the following:

- Open POWER indicator lamp bulb filament.

- Open 10 COIL fuse.

- Faulty Power/Normal switch (always open)

- Poor ground (G200).

- Open circuit between the PCM and the I/P gage cluster.

- Damaged I/P gage cluster printed circuit.

- Faulty PCM.

An intermittent condition may be caused by a poor connection, rubbed through wire insulation or a wire broken inside the insulation.

Check for poor connections at component and inline harness connector terminal for backed out

terminals, improper mating, broken locks, improperly formed or damaged terminals and for poor terminal-to-wire connections before replacing components. After repairs have been made, repeat the Powertrain OBD System Check to ensure the system is functioning normally.

If any wiring repairs need to be made, refer to Repair Procedures in Diagrams/Electrical.

Test Description

Numbers below refer to the circled numbers on the diagnostic chart.

1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the freeze frame data on the scan tool if applicable. This creates an electronic copy of the data taken when the fault occurred. The information is then stored in the scan tool for later reference.

2. Checks that PCM performs bulb check.

3. Checks integrity of the indicator control circuit.

4. Checks for an open bulb filament.

5. Checks power source to the TP gage cluster.

6. Checks for an open in the indicator control circuit.

7. Checks if the PCM responds by turning on the POWER indicator when grounding the shift mode signal circuit.

8. Checks for a poor ground (G200) to the Power Normal switch.

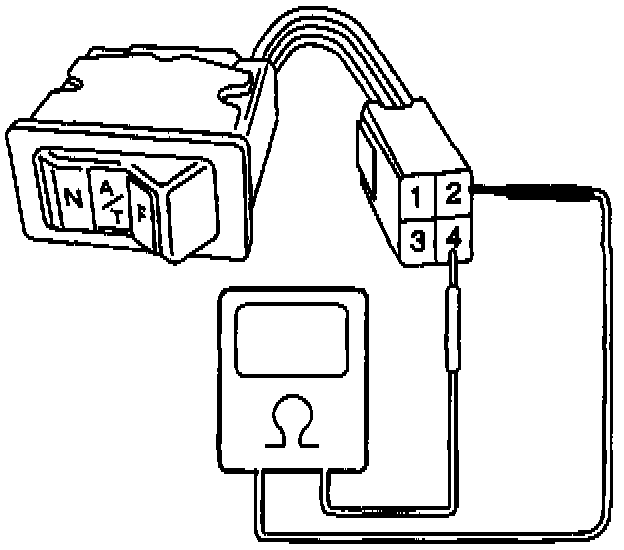

9. Checks for a faulty Power/Normal switch.

10. Checks whether the condition is related to a poor connection and not due to a faulty PCM.

18. Checks for proper operation of the POWER indicator.
