License Plate Lamp: Service and Repair

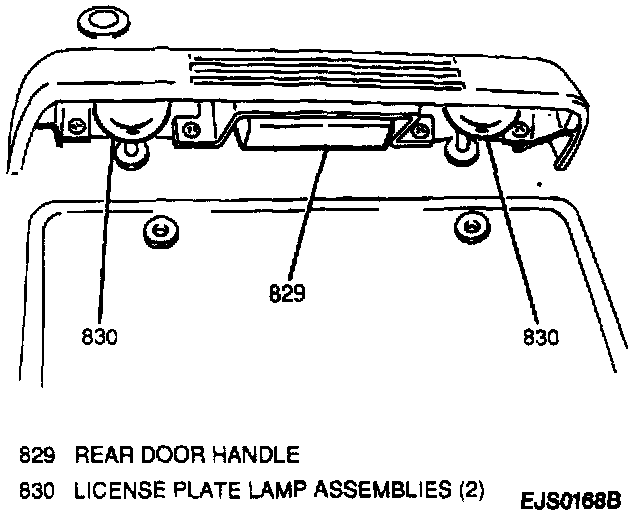

Licence Plate Lamp Assembly:

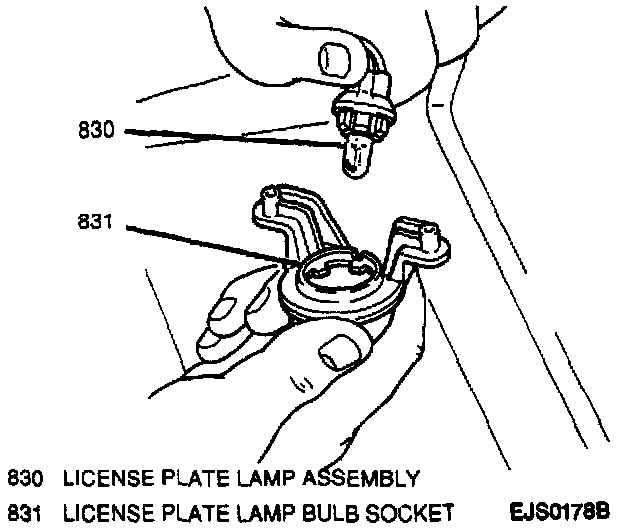

Removing License Plate Lamp Bulb Socket:

Remove or Disconnect
1. Negative (-) battery cable.
2. Two screw's and license plate lamp assembly from rear door.
3. License plate lamp bulb socket from lamp assembly.
4. License plate lamp bulb from socket.

Install or Connect
1. License plate lamp bulb to socket.
2. License plate lamp bulb socket to lamp assembly.
3. License plate lamp assembly to rear door; secure with two screws.
4. Negative (-) battery cable.
