Headlamp Assembly Replacement

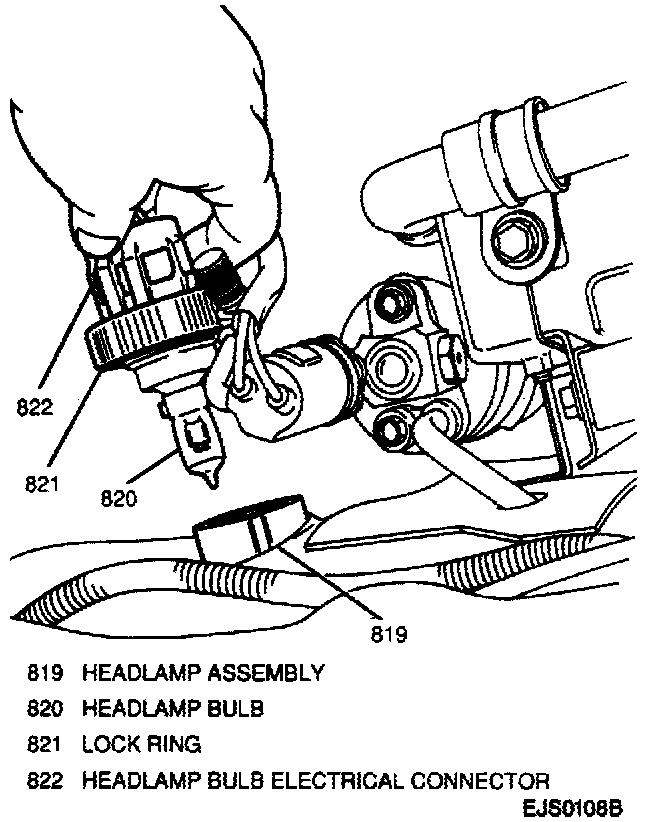

Removing Headlamp Bulb:

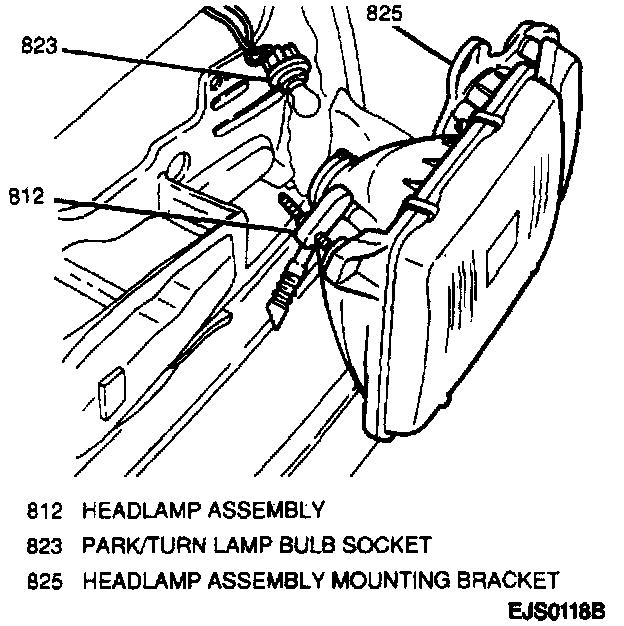

Removing Headlamp Assembly:

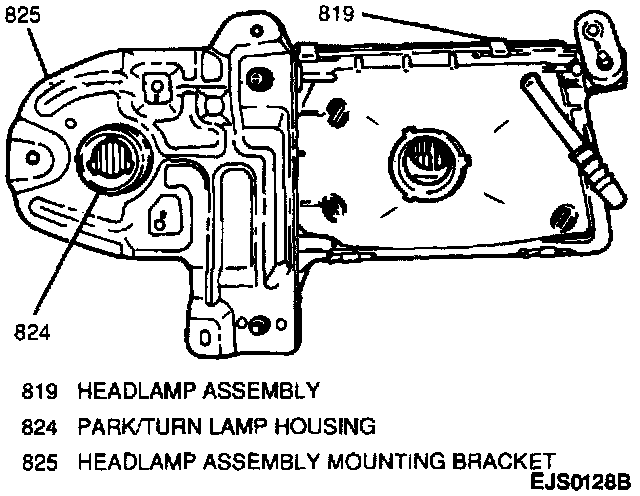

Headlamp Assembly Mounting Bracket:

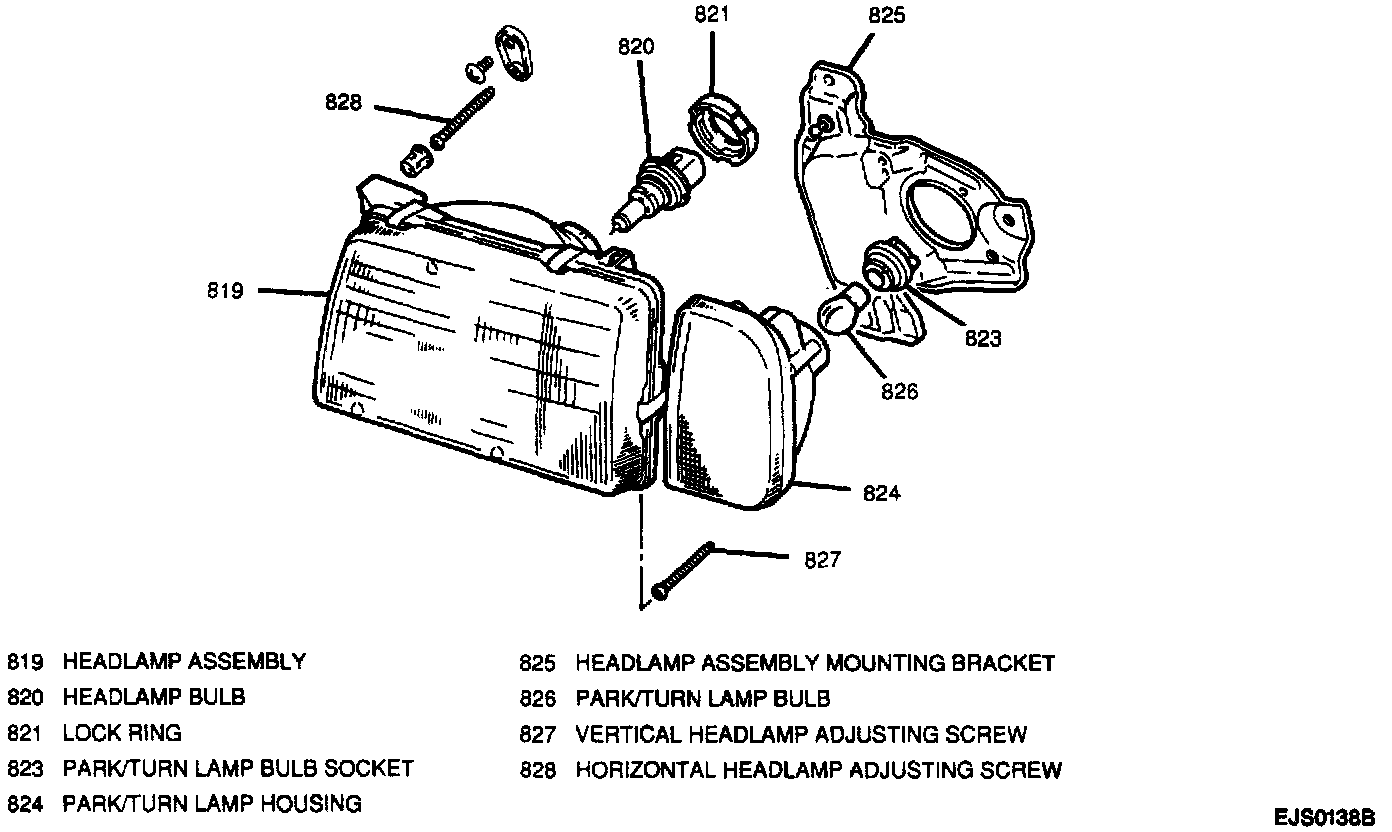

Exploded View - Headlamp Assembly:

CAUTION: Halogen bulbs contain a gas under pressure. Handling a bulb improperly could cause it to 5 after into flying glass fragments. To help avoid personal injury:
^ Turn off lighting system and allow the bulb to cool before changing bulbs. Leave the lighting system off until the bulb change is complete.
^ Always wear eye protection when changing a halogen bulb.
^ Handle the bulb only by its base; avoid touching the glass.
^ Do not drop or scratch the bulb.
^ Keep moisture away from the bulb.
^ Place the used bulb in the new bulb's carton and dispose of it properly.
^ Keep halogen bulbs out of the reach of children.

Remove or Disconnect
1. Negative (-) battery cable.
2. Grille from vehicle.
3. Turn lock ring counterclockwise and remove headlamp bulb from headlamp assembly.
4. Four screws from headlamp assembly and remove headlamp assembly from vehicle.
5. Park/turn lamp bulb socket from park/turn lamp housing.
6. Two screws, one nut, and headlamp assembly from headlamp assembly mounting bracket.

Install or Connect
1. Headlamp assembly to headlamp assembly mounting bracket; secure with two screws and one nut.

Tighten
^ Headlamp assembly to headlamp assembly mounting bracket nut to 10 N.m (89 lb. in.).

2. Park/turn lamp bulb socket to park/turn lamp housing.
3. Headlamp assembly to vehicle; secure with four screws.
4. Headlamp bulb to headlamp assembly; secure by turning lock ring clockwise.
5. Grille to vehicle.
6. Negative (-) battery cable.
