Dome Lamp: Service and Repair

Removing Dome Lamp Assembly:

Remove or Disconnect
1. Negative (-) battery cable.

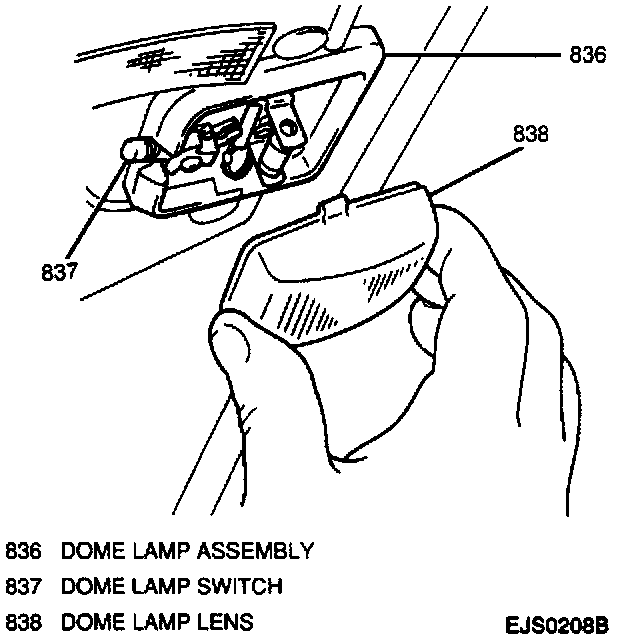

2. Gently pry dome lamp lens from dome lamp assembly with a flat-bladed screwdriver.
3. Dome lamp bulb from dome lamp assembly (if necessary).
4. Two screws and dome lamp assembly from headlining.
5. Dome lamp electrical connector and remove assembly from vehicle.

Install or Connect
1. Dome lamp assembly to vehicle; connect electrical connector.
2. Dome lamp assembly to headlining; secure with two screws.
3. Dome lamp bulb to dome lamp assembly (if removed).
4. Dome lamp lens to dome lamp assembly.
5. Negative (-) battery cable.
