Speedometer Cable: Service and Repair

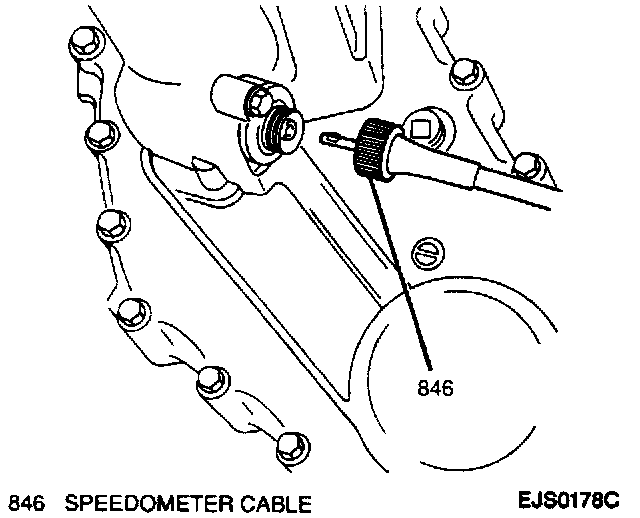

Speedometer Cable Attachment Location (Typical):

Remove or Disconnect
1. Negative (-) battery cable.
2. Instrument cluster assembly.
Unhook speedometer cable from heater case.
4. Grommet from bulkhead and feed speedometer cable through bulkhead.
5. Raise and suitably support vehicle.
6. Unscrew and remove the speedometer cable from either the transfer case or transmission.
7. Speedometer cable from clamp.
8. Speedometer cable from vehicle.

Install or Connect
1. Speedometer cable to clamp.
2. Speedometer cable to transfer case or transmission, screw on to secure.
3. Lower vehicle.
4. Feed speedometer cable through bulkhead.
5. Grommet to bulkhead.
6. Hook speedometer cable to heater case.
7. Instrument cluster assembly.
8. Negative (-) battery cable.
