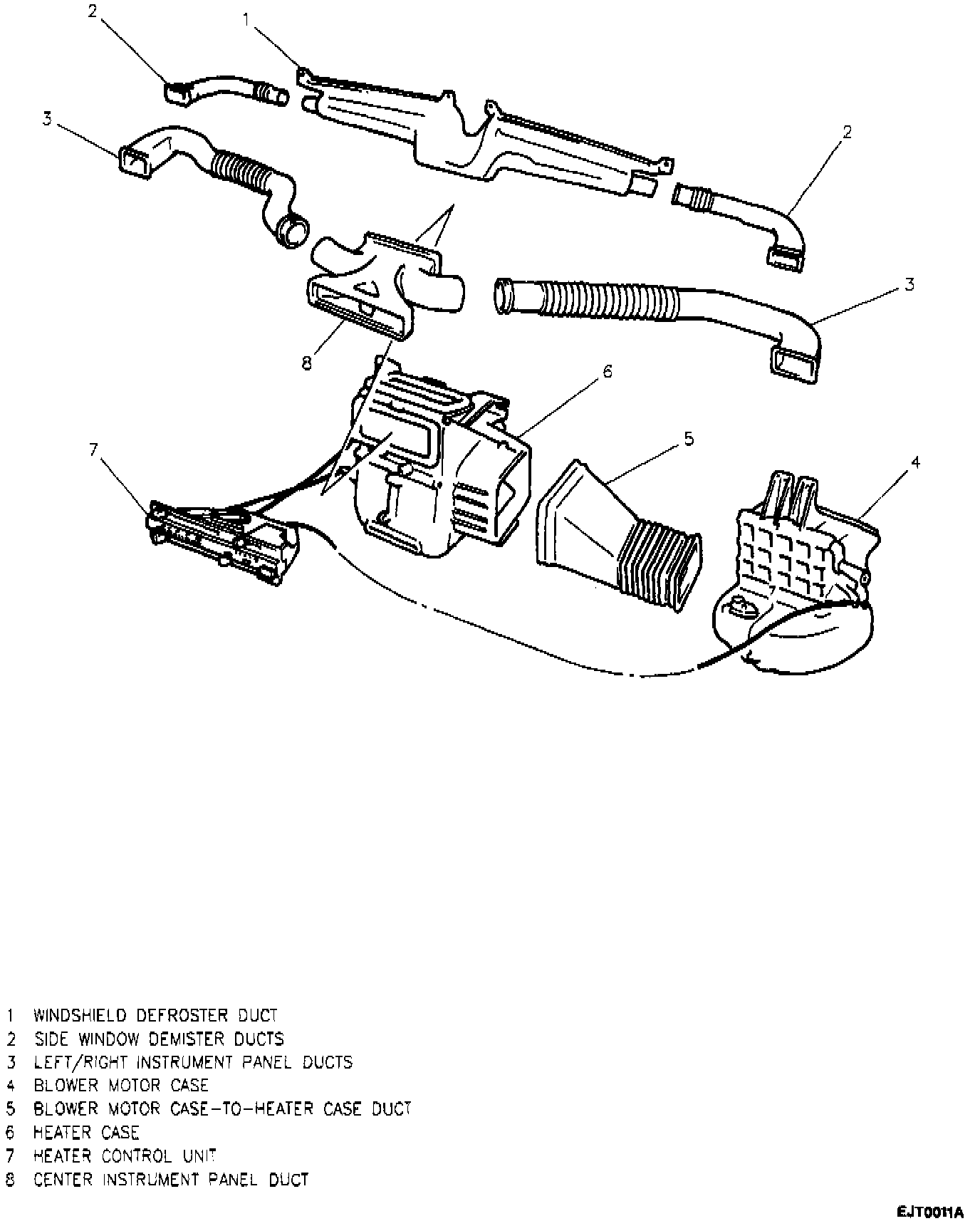

Defroster Nozzle and Side Windows Defroster Ducts

Remove or Disconnect

1. I/P.
2. Four screws and defroster duct, including left and right side defroster ducts.

Install or Connect

1. Side windows defroster ducts to defroster duct.
2. Defroster duct to I/P; secure with four screws.
3. I/P.
