Runout

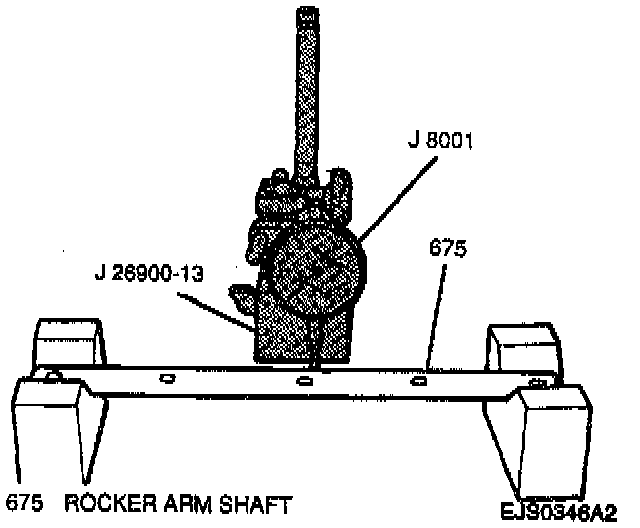

NOTE: Rocker arm shaft runout using a J 8001 with a J 26900-13, or equivalents.

1. Place the rocker arm shaft between two V-blocks and rotate slowly while measuring runout.
^ Maximum rocker arm shaft runout is 0.20 mm (0.008 inch).
2. If rocker arm shaft runout exceeds 0.20 mm (0.008 inch), replace the rocker arm shaft.
