Geo Truck
>>
1997
>>
Tracker 4x2 L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module

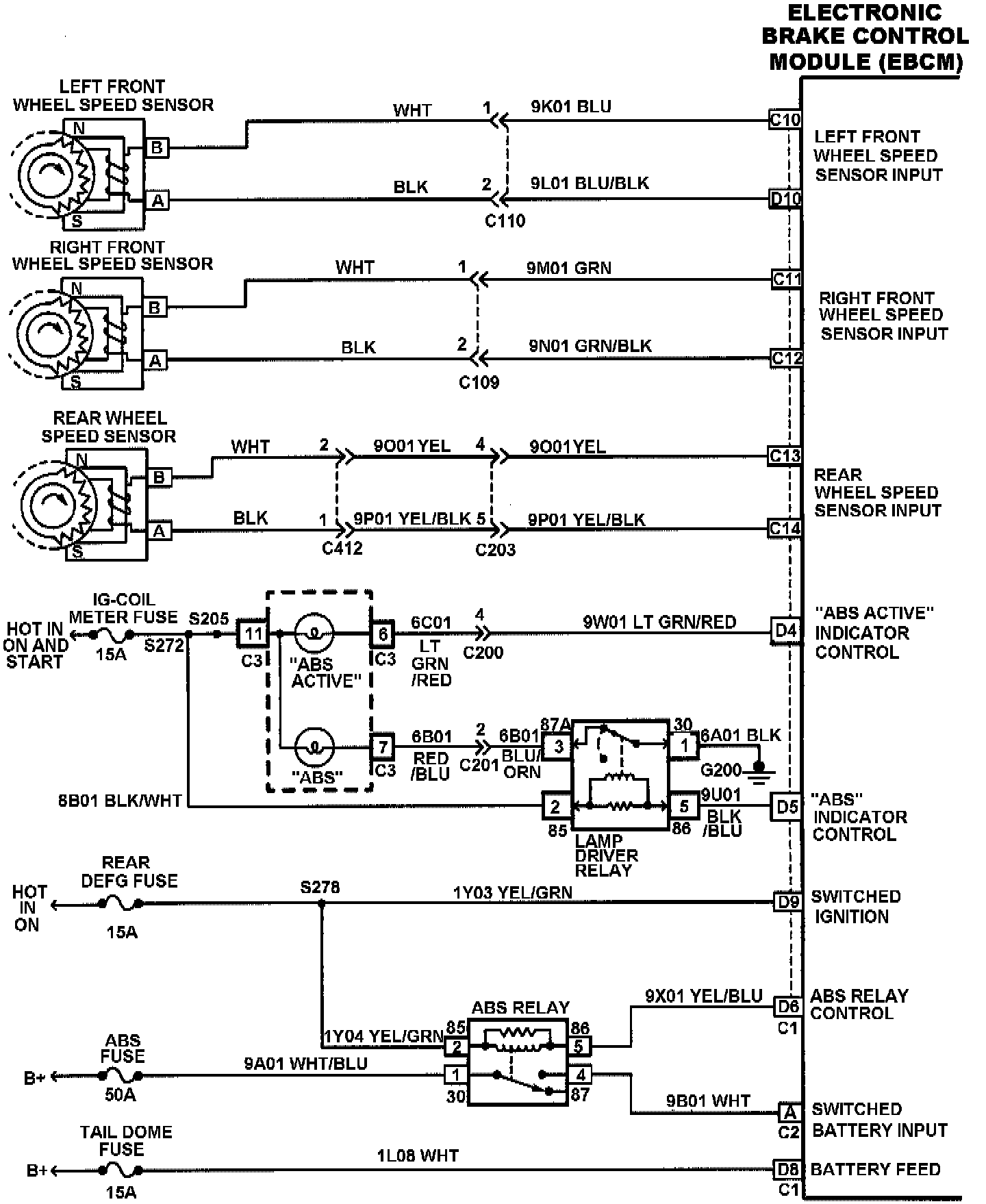

Electronic Brake Control Module
Additional Wiring Diagram:
