Caliper Carrier

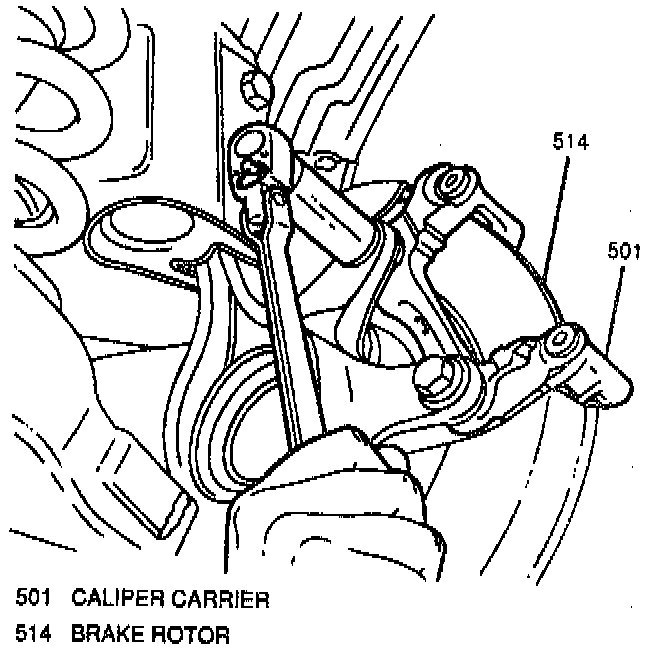

Removing Caliper Carrier Mounting Bolts:

REMOVE OR DISCONNECT
1. Linings.
2. Two mounting bolts and caliper carrier from vehicle.
3. Two caliper pins, with boots, from caliper carrier.


INSTALL OR CONNECT
1. Two caliper pins, with boots, to caliper carrier.
2. Caliper carrier to vehicle, secure with two mounting bolts.
^ Tighten caliper carrier mounting bolts to 88 Nm (65 ft. lbs.).
3. Linings.
