Table C ABS Active Indicator on Constantly

CIRCUIT DESCRIPTION
The ABS ACTIVE indicator lamp is connected to the IG-COIL METER fuse through CKT 8B01. This circuit is hot in ON and START ignition switch positions. The Electronic Brake Control Module (EBCM) turns ON the ABS ACTIVE by grounding CKT 9W01 and 6C01. When the ignition switch is turned to the ON position, the EBCM turns ON the ABS ACTIVE indicator for 3 seconds for a bulb check. Whenever the vehicle is involved in an ABS event, the EBCM tuns ON the ABS ACTIVE indicator for the duration of the event (and 1-2 seconds after an ABS event), notifying the driver that ABS is in operation.

DIAGNOSTIC AIDS
The following list contains items that need to be inspected when diagnosing this system:
^ Short to ground between EBCM and the ABS ACTIVE indicator lamp (CKT 9W01 and/or CKT 6C01).
^ Faulty EBCM.

Inspect The Following Harness Connectors - for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wiring connections or physical damage to the wiring harness before component replacement.
^ EBCM connector C1.
^ Instrument Panel (I/P) cluster C3.

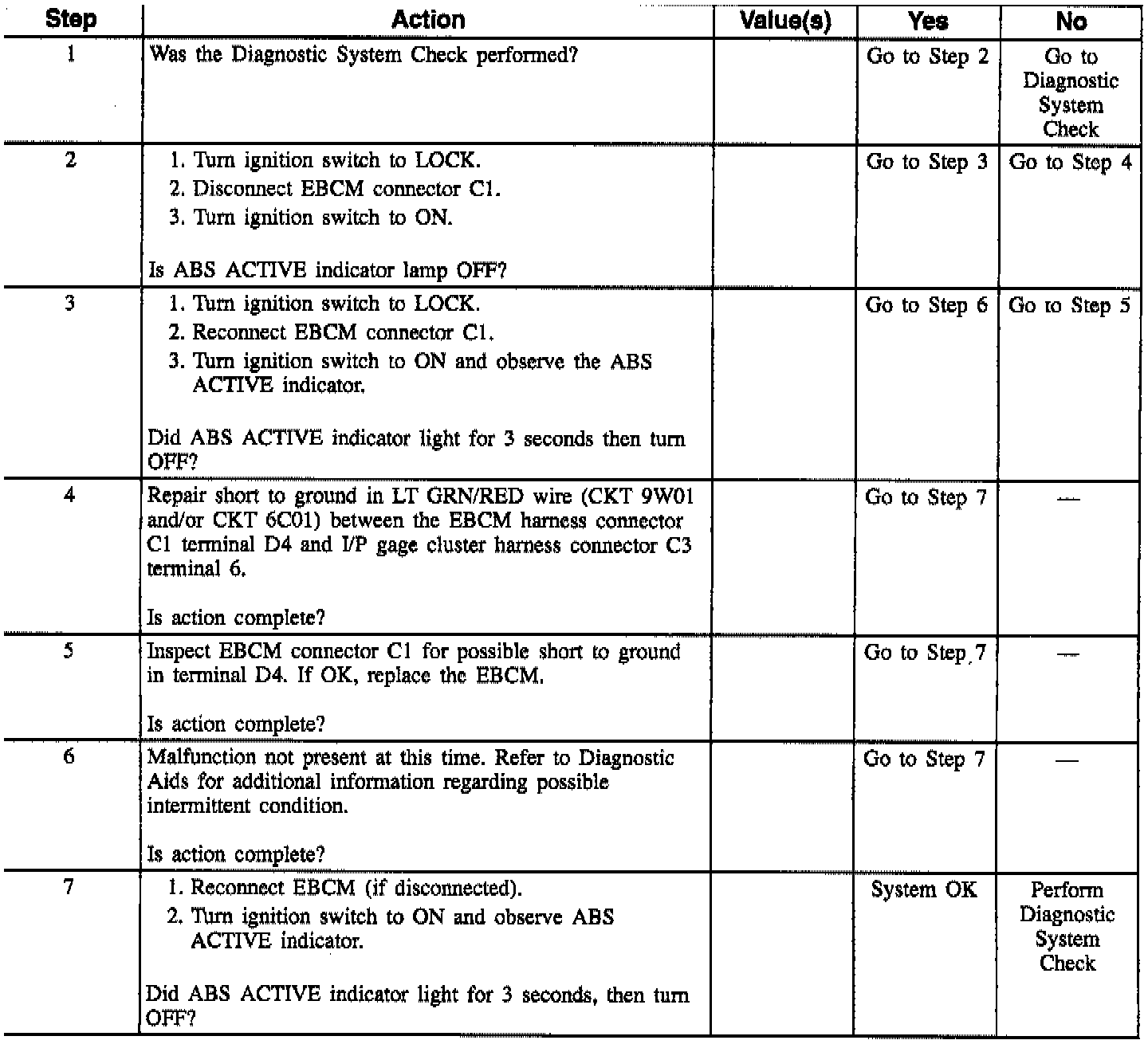

Table C: ABS Active Indicator On Constantly:

TEST DESCRIPTION
The number below refers to a step number on the diagnostic table.
[2] Check for a short to ground in the ABS ACTIVE indicator control circuit.
