Illumination Controller Replacement

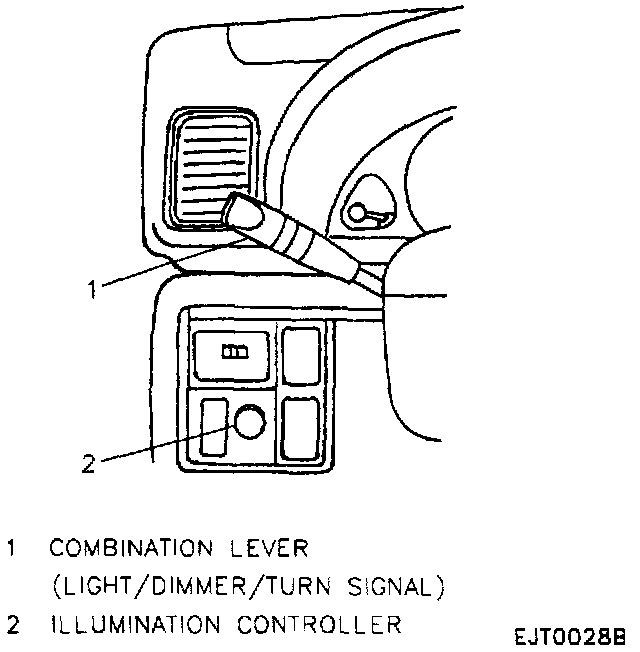

Combination Switch And Illuminator Controller:

Remove or Disconnect
1. Negative (-) battery cable.
2. Knee bolster.
3. Push on the bottom of illumination controller by pushing up with a pick from behind the instrument panel.
4. Slide illumination controller out from instrument panel.
5. Electrical connector from illumination controller.

Install or Connect
1. Electrical connector to illumination controller.
2. Slide illumination controller into place.
3. Knee bolster.
4. Negative (-) battery cable.
