Console: Service and Repair

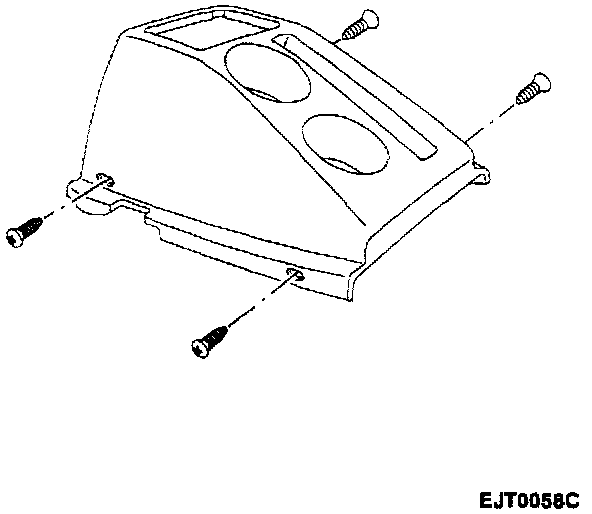

Parking Brake Level Bezel:

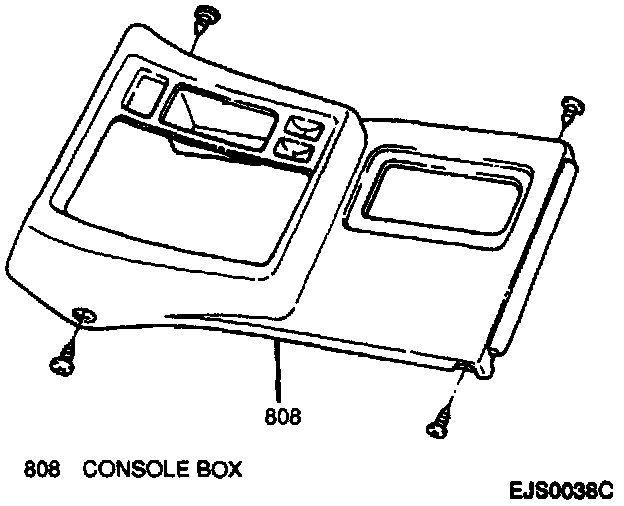

Console:

Remove or Disconnect
1. Negative (-) battery cable.
2. Two plastic retaining clips, two screws and lift parking brake lever bezel.
3. Rear power window switch electrical connectors (if equipped).
4. Two screws, two plastic retaining clips and lift console.
5. Power/Normal switch electrical connector (if equipped with 4-speed A/T) and console from vehicle.

Install or Connect
1. Power/Normal switch electrical connector (if equipped with 4speed A/T).
2. Console to vehicle; secure with two screws and two plastic retaining clips.
3. Rear power window switch electrical connectors (if equipped).
4. Parking brake lever bezel; secure with two plastic retaining clips and two screws.
5. Negative (-) battery cable.
