Without Pulse

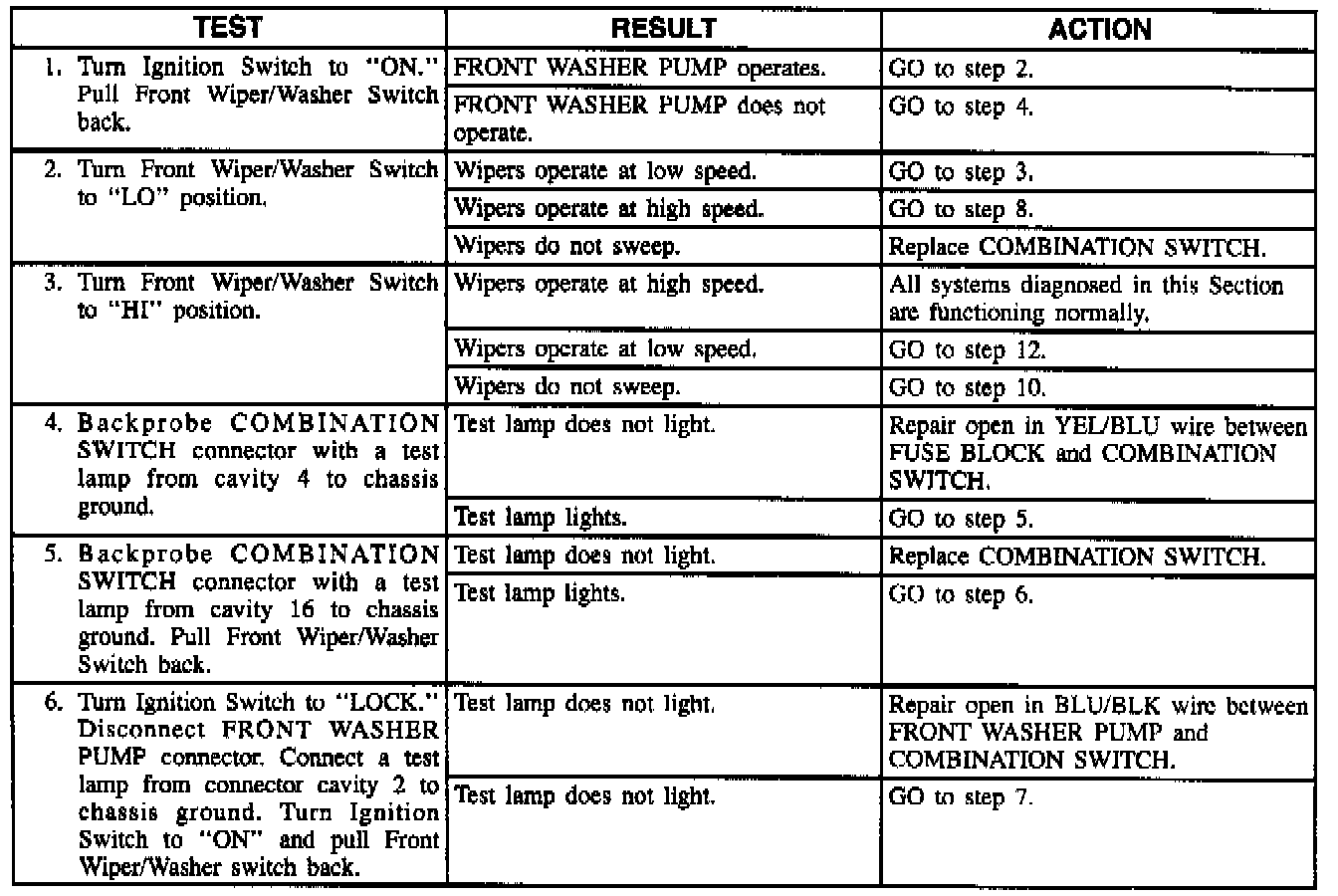

Fig. 5 System Diagnosis Chart (Part 1 Of 2). Less Pulse.:

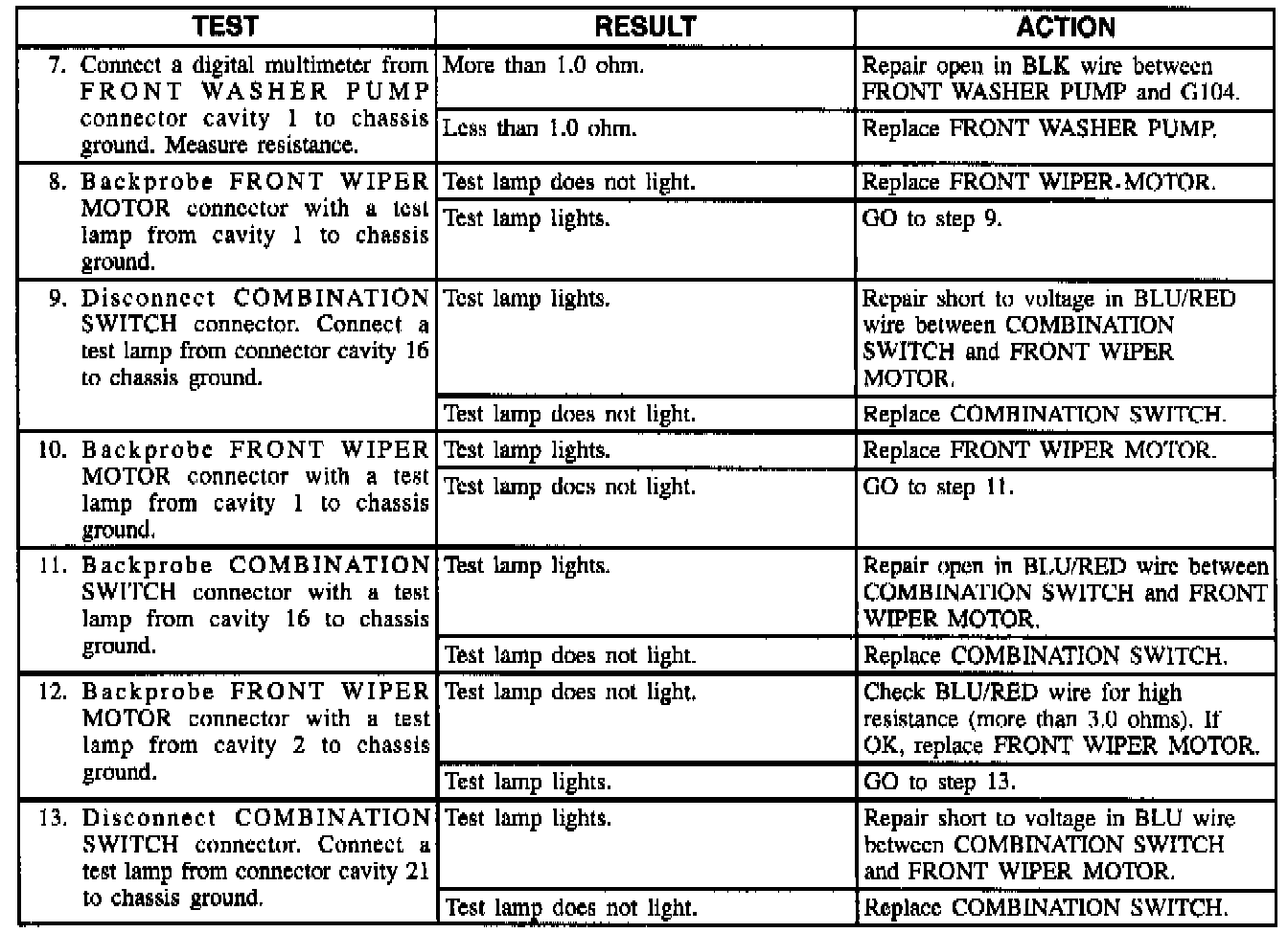

Fig. 5 System Diagnosis Chart (Part 2 Of 2).:
