With Pulse

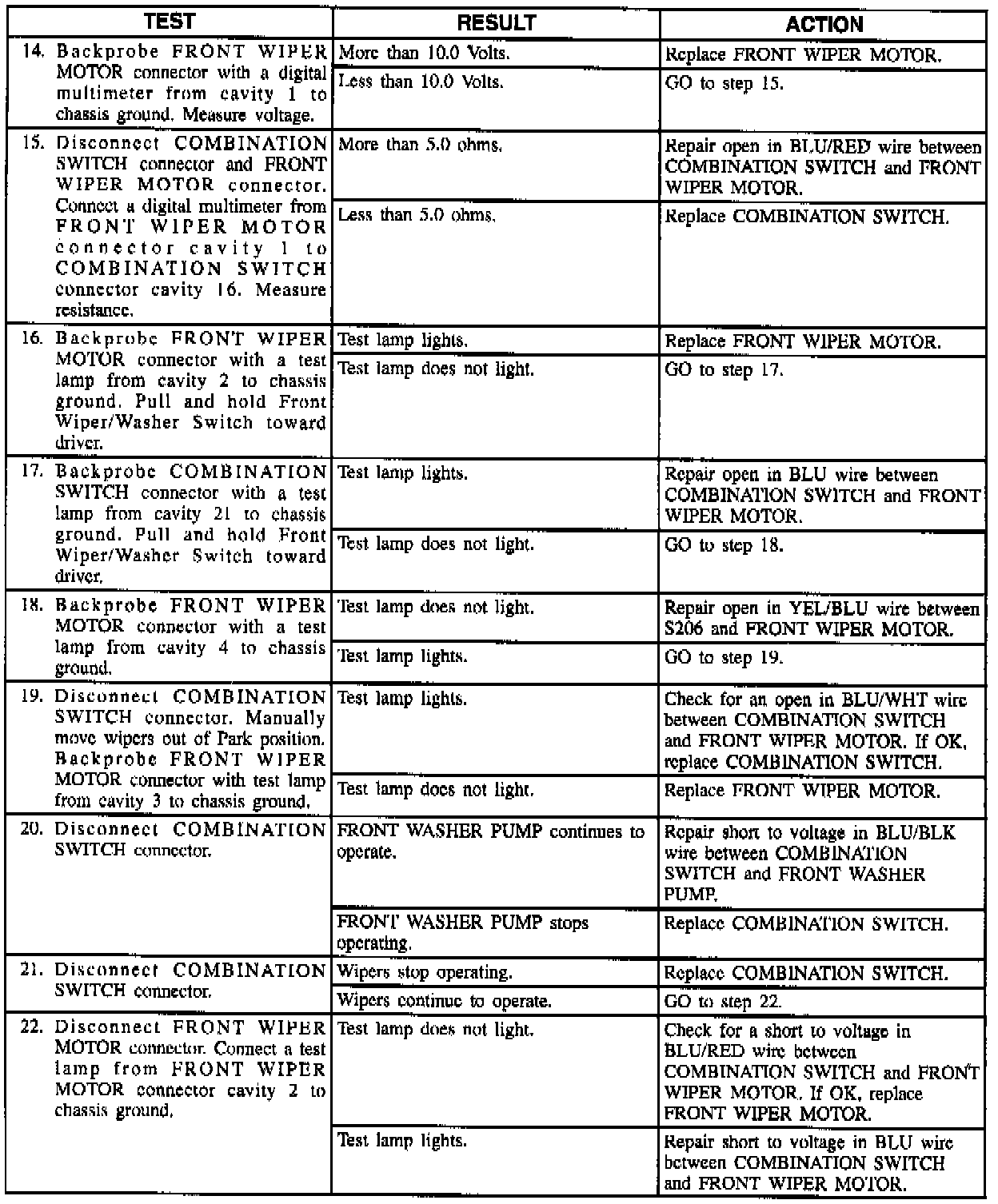

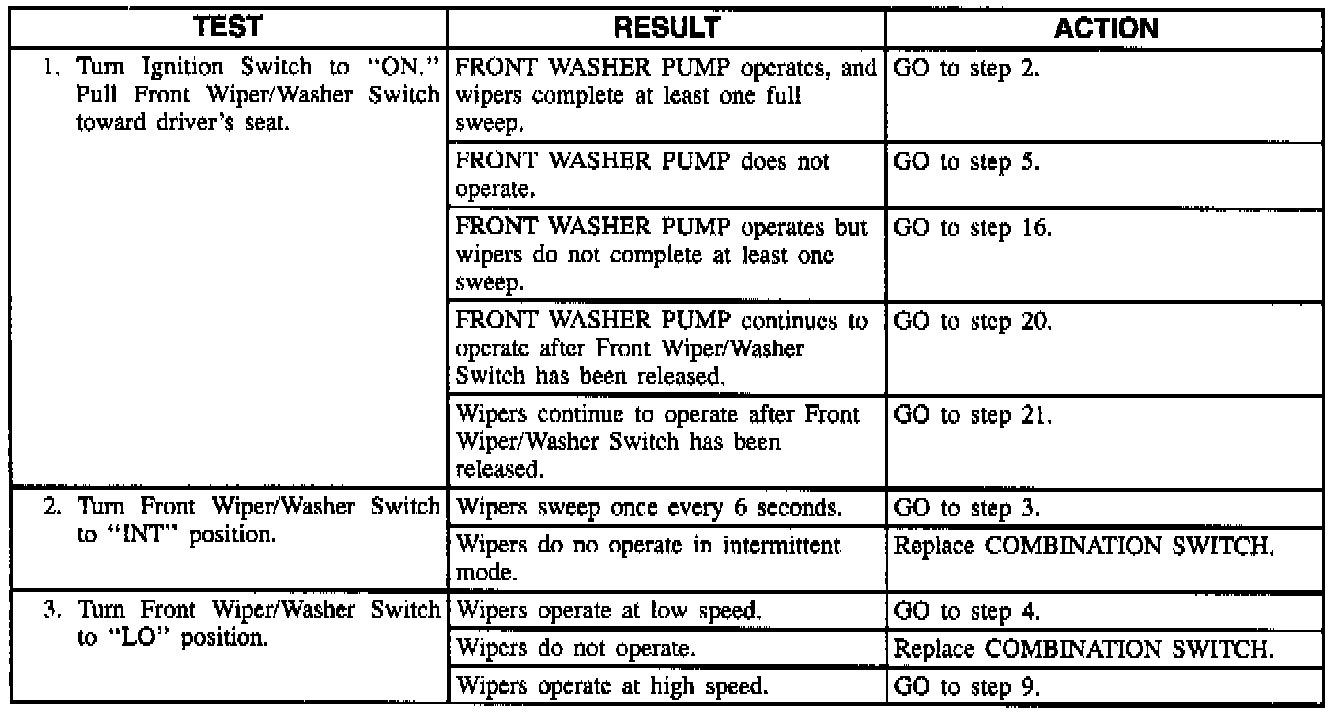

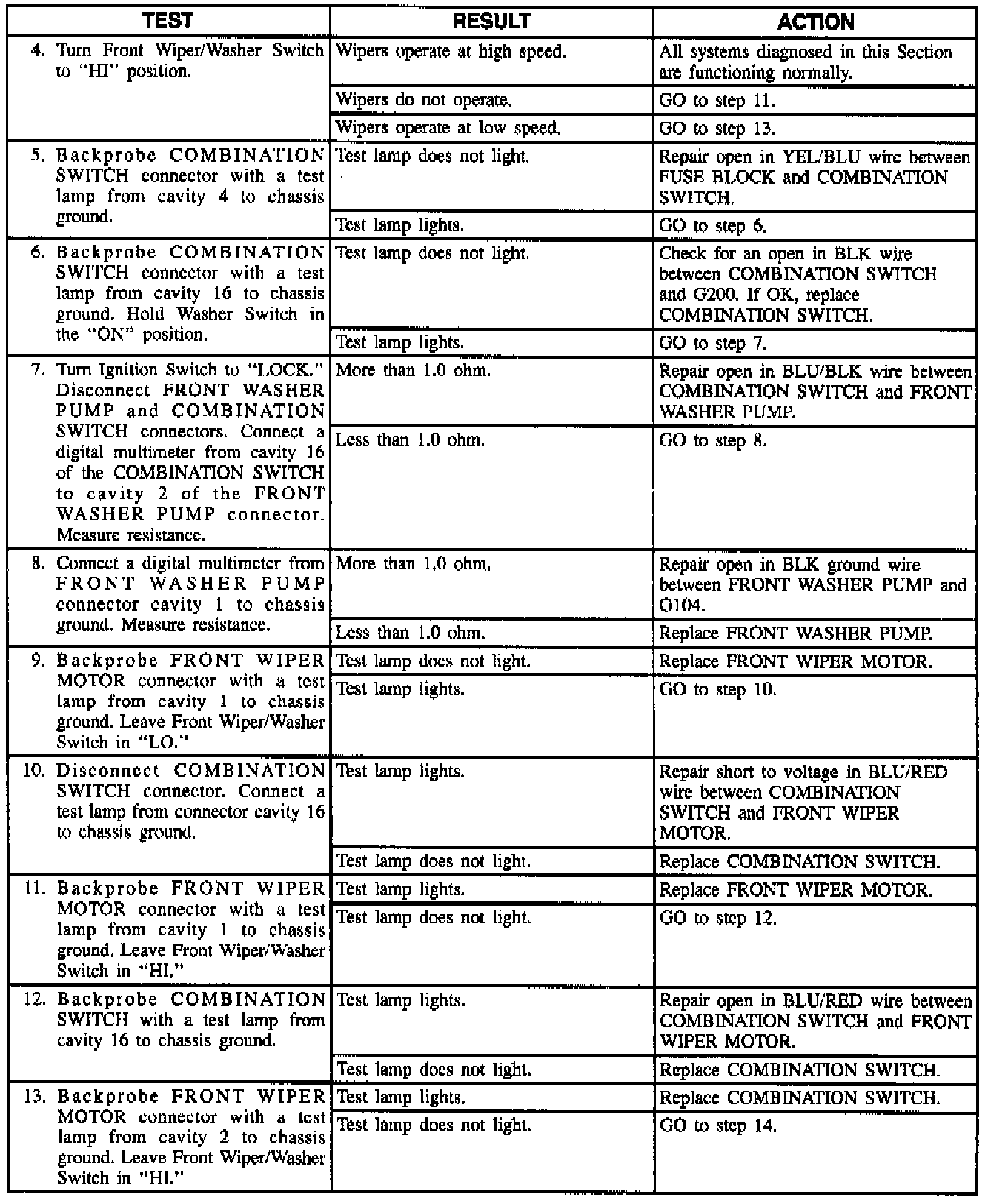

Fig. 6 System Diagnosis Chart (Part 1 Of 3). With Pulse.:




Fig. 6 System Diagnosis Chart (Part 2 Of 3). With Pulse.:




Fig. 6 System Diagnosis Chart (Part 3 Of 3). With Pulse.:
