Accelerator Pedal: Service and Repair

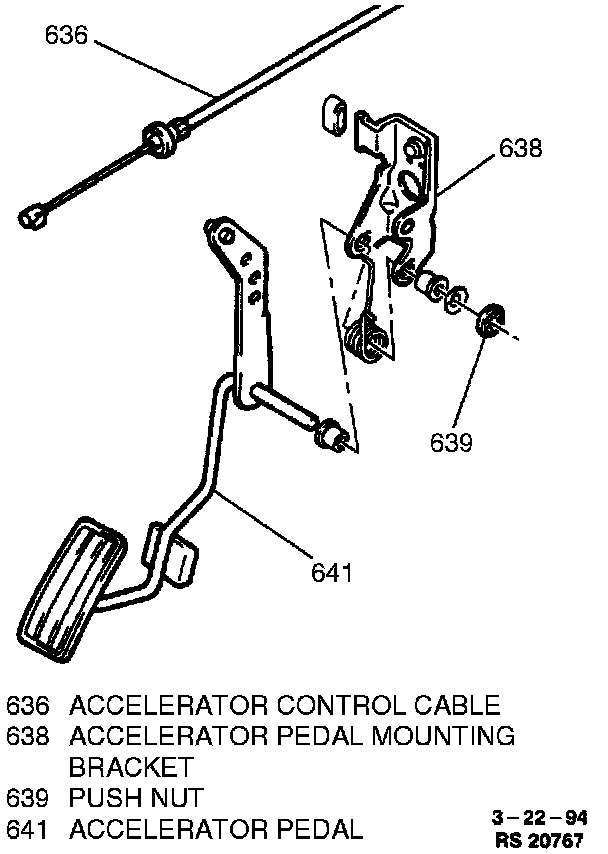

ACCELERATOR PEDAL REPLACEMENT

REMOVE OR DISCONNECT
1. Accelerator control cable from accelerator pedal.
2. Accelerator pedal push nut and accelerator pedal from mounting bracket.

INSTALL OR CONNECT
1. Accelerator pedal to mounting bracket; secure with new accelerator pedal push nut.
^ Be sure to install spring while sliding accelerator pedal into mounting bracket.
2. Accelerator control cable to accelerator pedal.
