Home >> Geo Truck >> 1995 >> Tracker 4x2 L4-1.6L VIN 6 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Fuel Pump & Idle Speed Controls

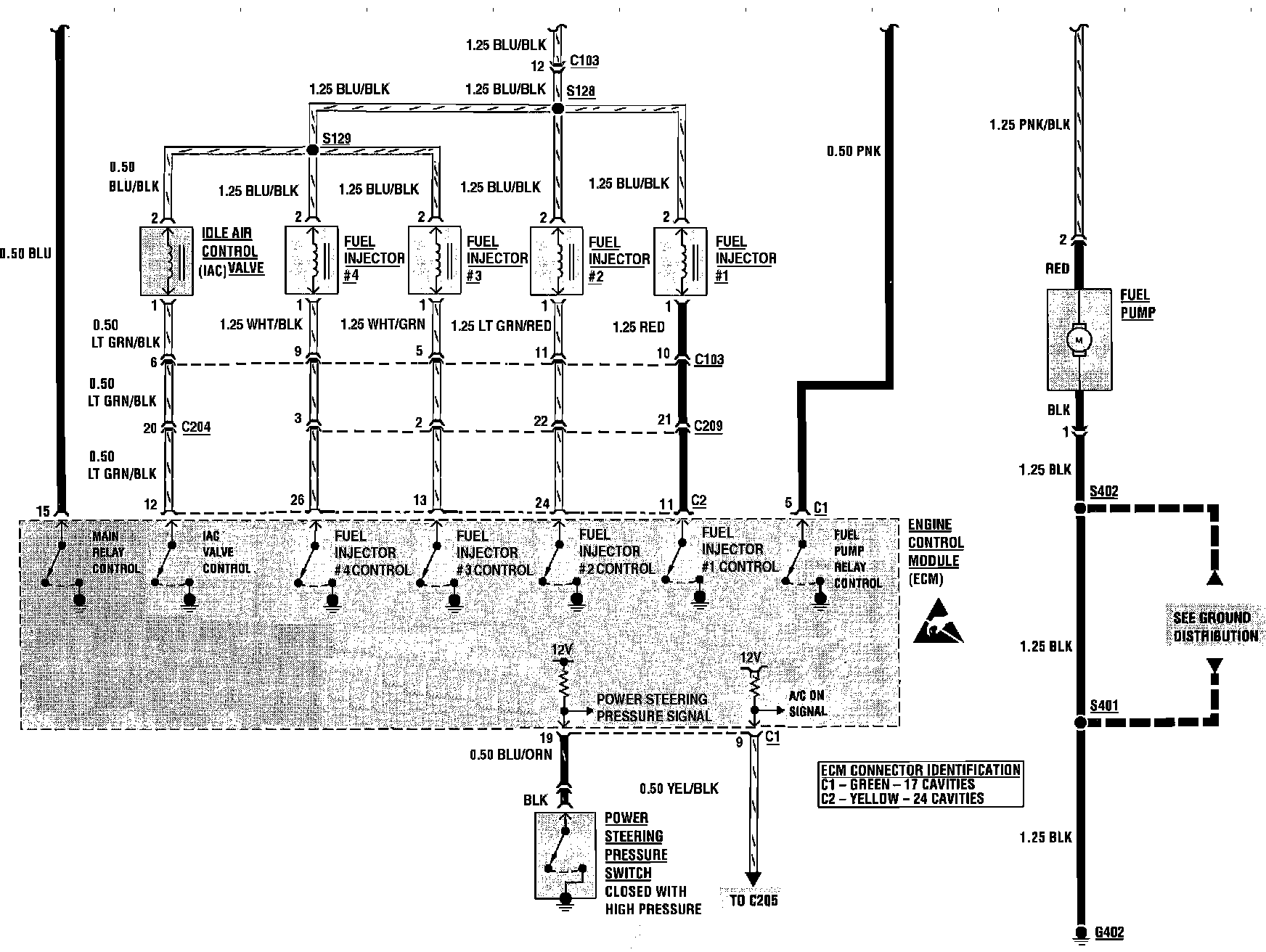

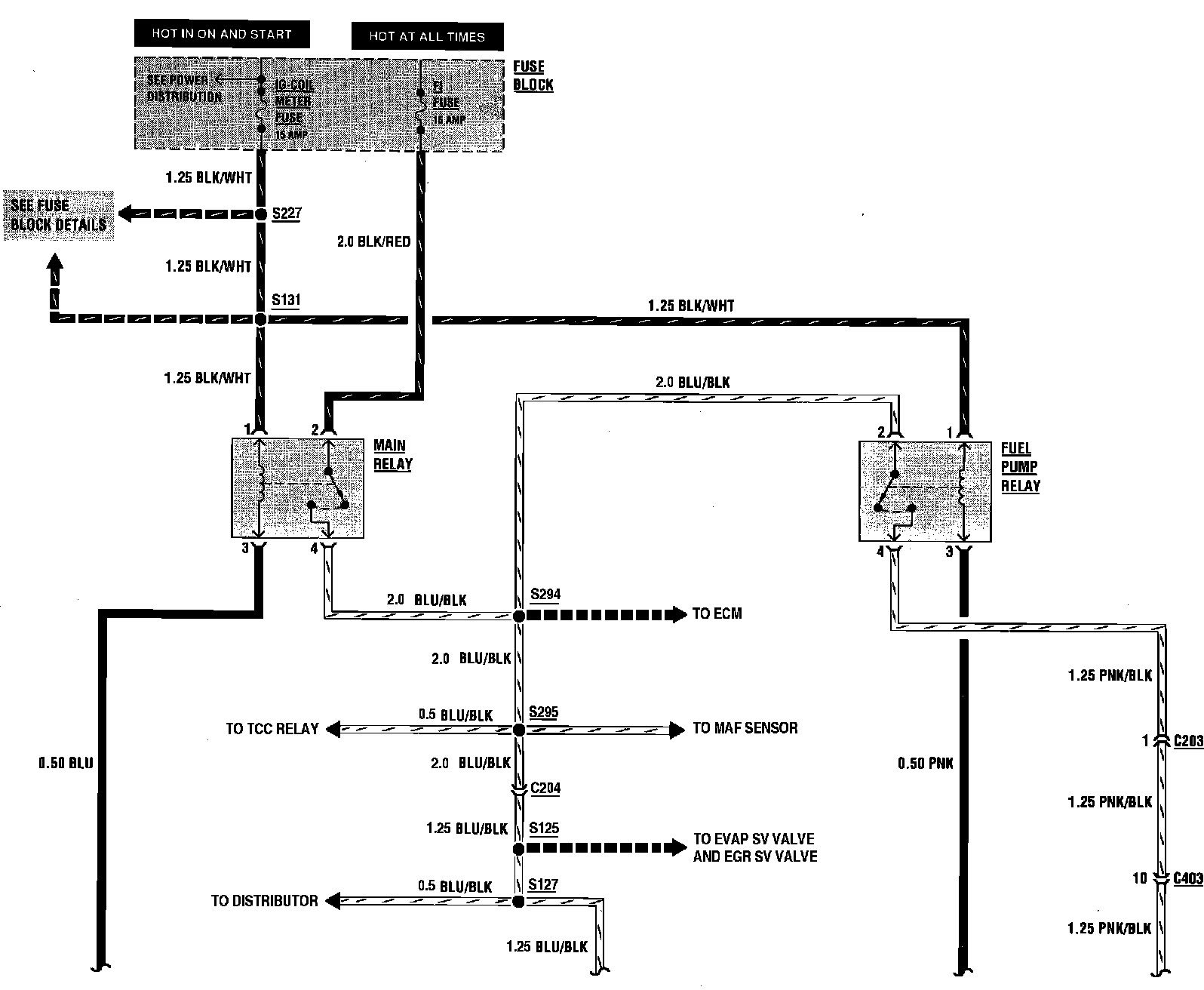

Fuel Pump & Idle Speed Controls

Engine Control System:



Engine Control System:
