Geo Truck
>>
1995
>>
Tracker 4x2 L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Pulse
With Pulse

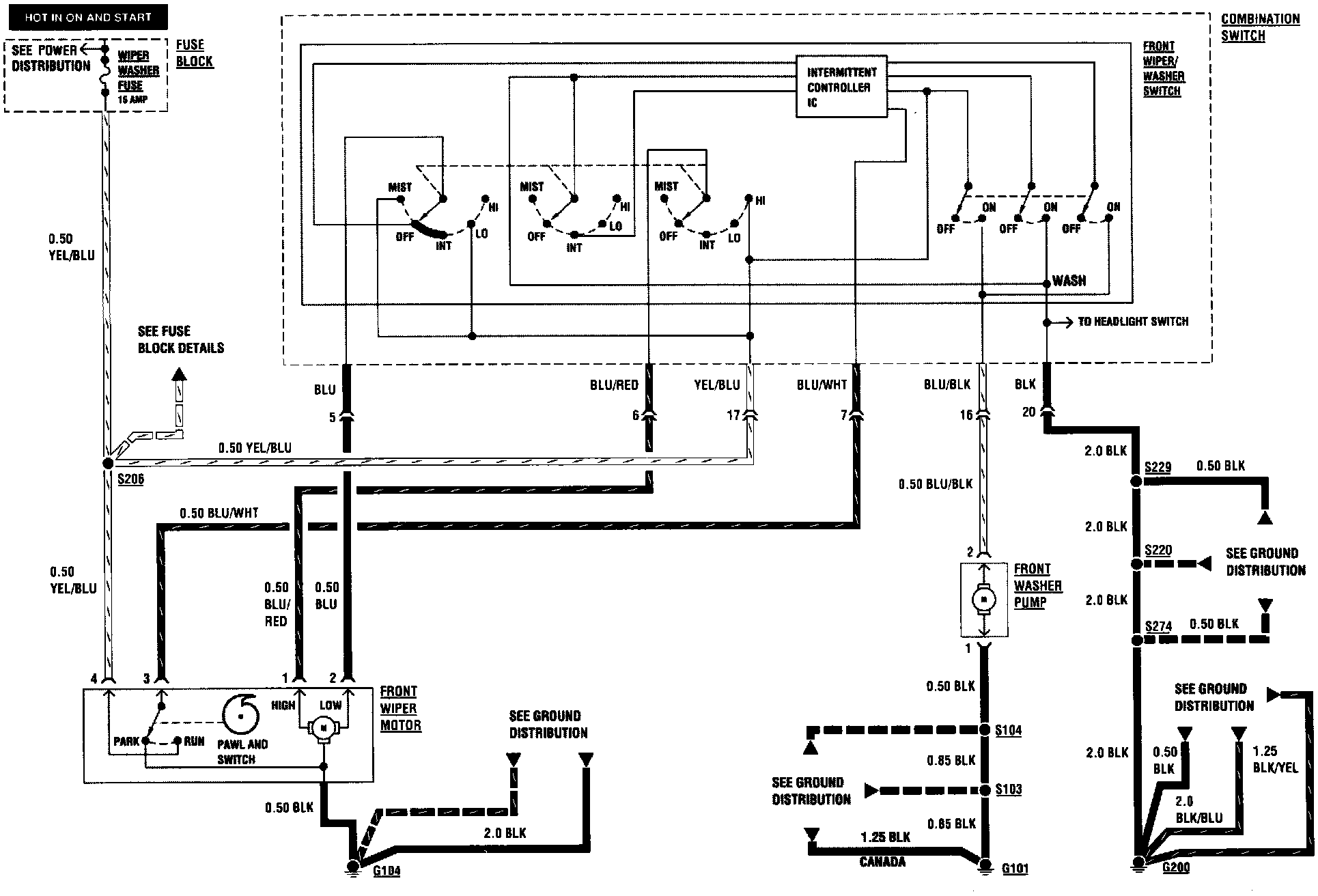

Fig. 2 Front Wiper Wiring Circuit. With Pulse.:
